3-6 Axxius 800 - Release 2.2
Electrical Installation and Cabling
Chassis Connections
Chassis Ground Connector
1. Route wire (#6 or #8 AWG copper) from building ground to lug on Axxius 800.
2. Strip insulation off wire end, if necessary.
3. Loosen compression screw until opening is large enough to accept ground wire.
4. Insert ground wire into lug barrel, beneath compression plate and tighten
compression screw.
5. Attach ground lug to chassis

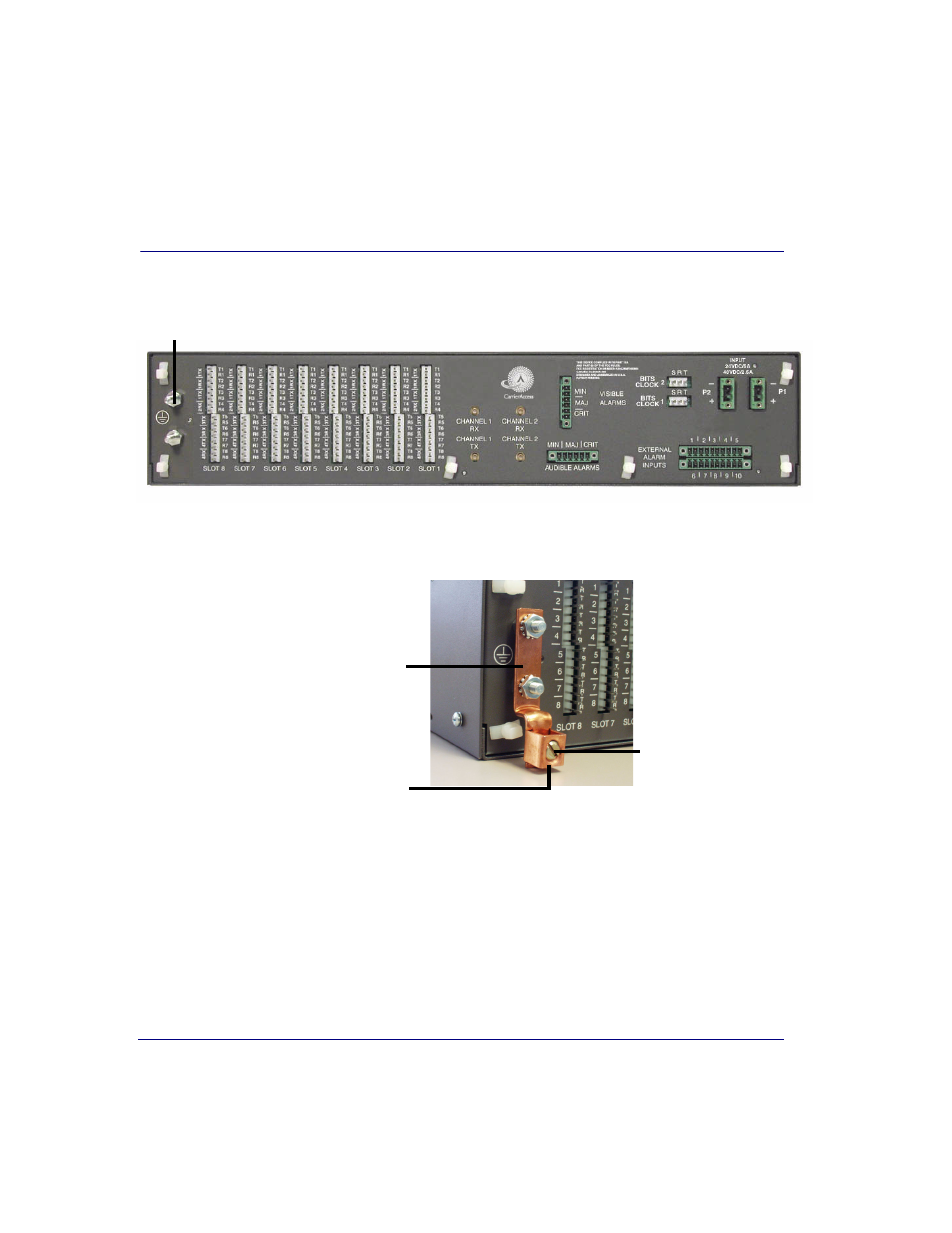

Ground Terminals
Ground Lug
Compression
Screw
Lug Barrel
