Carrier Access Network Device Axxius 800 User Manual
Page 92
4-20
Axxius 800 - Release 2.2
Configuration
Setup of DS0 Management Channel

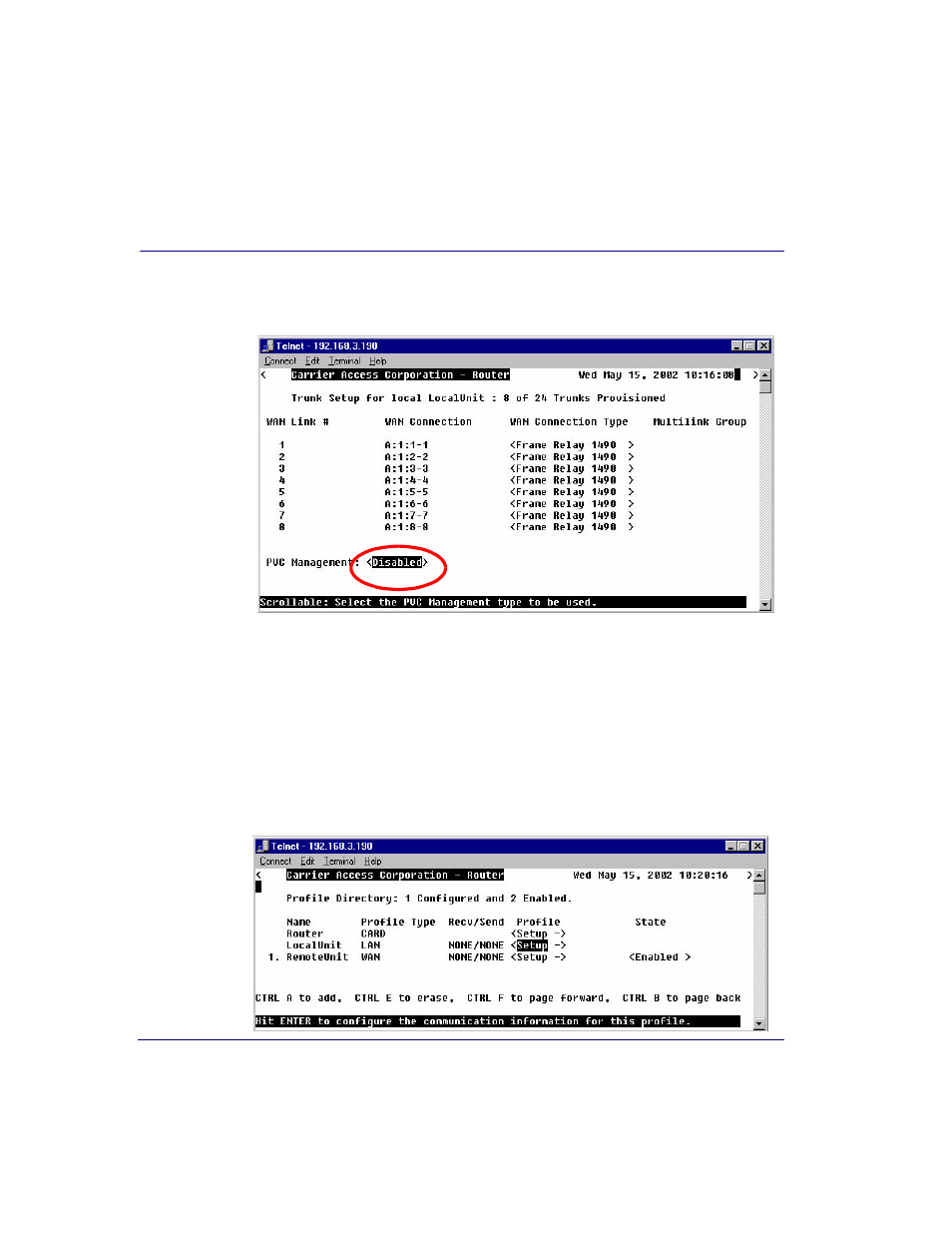

4. For all WAN port numbers already assigned a DS0 for management select
< Frame-Relay 1490 > as the WAN connections type.
5. Select the PVC Management as < Disabled >.
6. Select the
[E
SC
]
key to Exit and
to the Trunk Configure window. For these configuration changes to take
effect, you must Reinitialize the Router.
Configure the Local Axxius Profile
1. Select Configuration < Profile Directory > -> from the Router Main
Menu and select [
E
NTER
].
2. Select LocalUnit LAN
[E
NTER
]
.
