Axxius 800 - Release 2.2 C-19
Loopback Tests
V.35/V.54 Loop

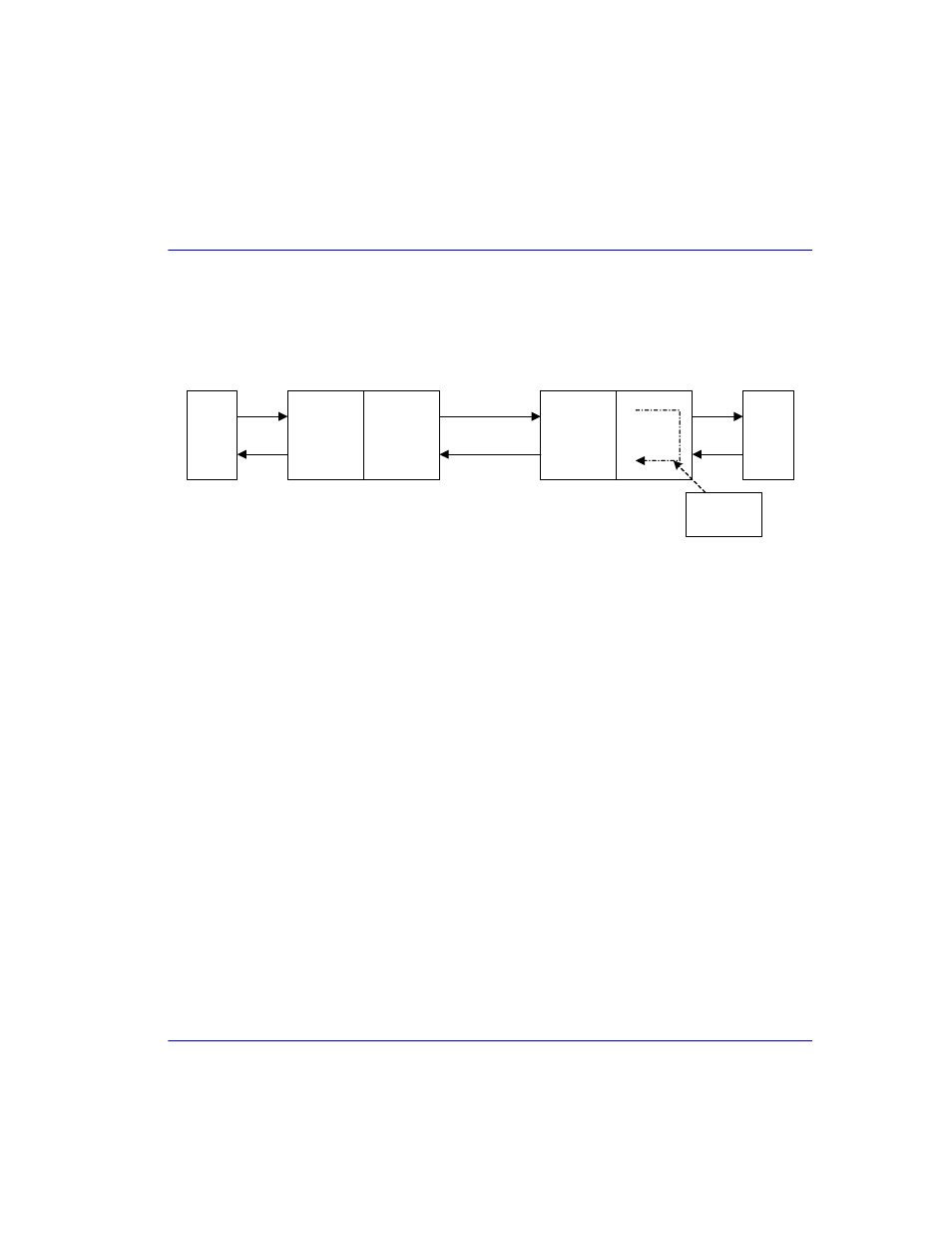

V.54 Loop
Note: Local LED flashes yellow, remote LED flashes green.
Enable V.54 Loop
Where a V.35/V.54 card is in slot 6.
> set 6:1 v54 network enable
OK
View Status of Loopback
> show 6:1
SLOT 6:
Settings for V35 Port 1:
CTS: Always High
Timing: Source
Rx Clock Inversion: Normal
Tx Clock Inversion: Normal
Data Inversion: Normal
Data Speed: 64K
Data Rate: 768 K
V.54 Rx LB: enabled
V.54 Rx Addr: 255
V.54 Test Addr: 255
V.54 Tx Prep count: 15
V.54 Rx Prep count: 15
V.54 Test Pattern: QRSS
V.54 Ignore ACK: OFF
Loopback: None
T1
Network
T1
Local
DTE
Axxius
Equipment
Unit
Local
DCE
V.35
Axxius
Network
Unit
Remote
DTE
Remote
DCE
V.54
Loopback
V.35
