16-8 Axxius 800 - Release 2.2

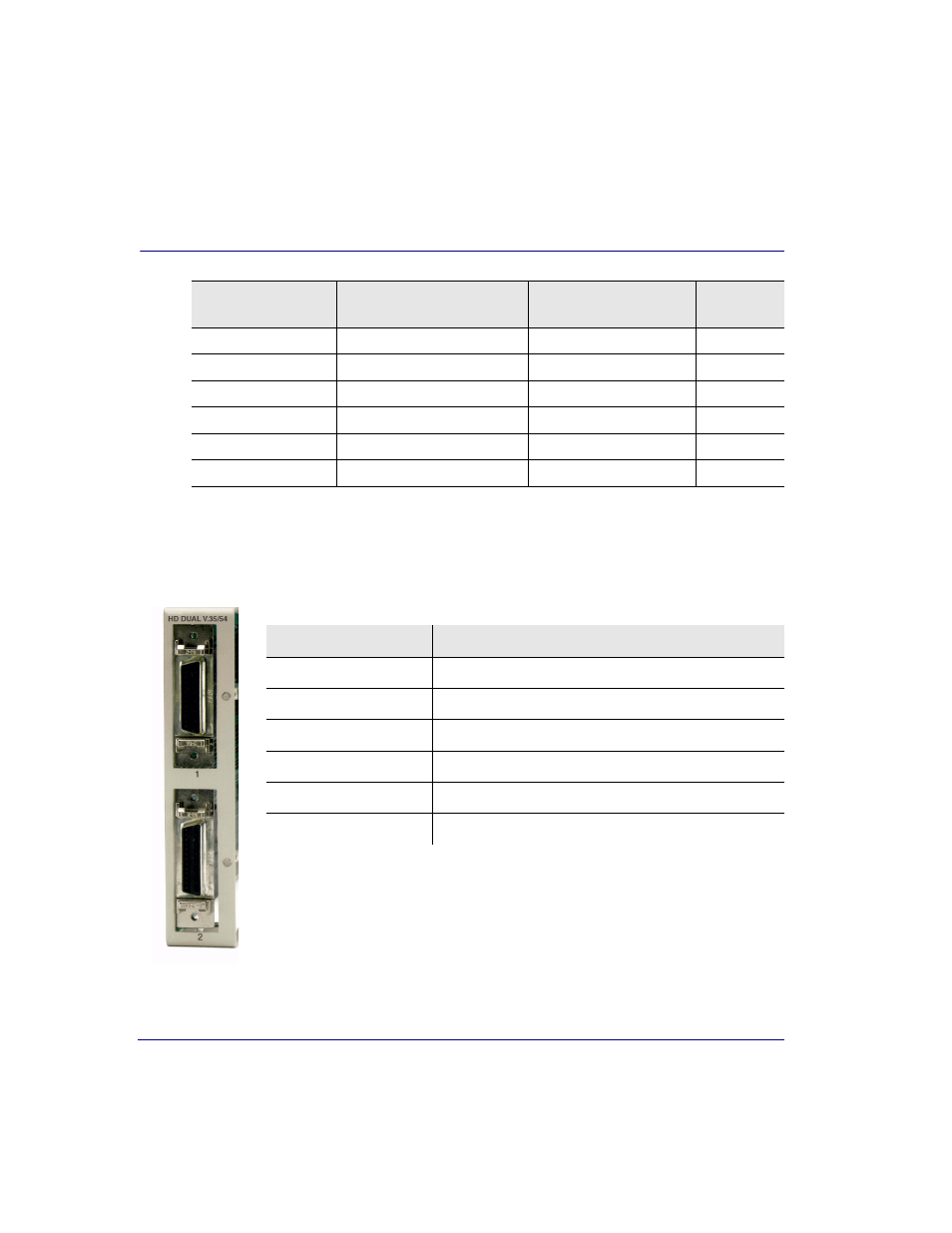

V.35/.54 Card
Connector Pinouts
LEDs
Each V.35 port has an LED, with definitions as shown in the table below.
Sub-miniature
DB-26
Signal Winchester
34-pin (female)
Paired
Signals
15  Receive Clock A → V

17  Receive Clock B → X

22 ← Local Loopback  J

25 ← Remote Loopback  BB

9, 13, 18 Open Pins/No Contact L, N, NN
19, 21, 26 Open Pins/No Contact
State Description
Off No T1 Assignment
Green Normal (CD/RTS) Active
Red CD inactive (T1-side failure)
Yellow RTS inactive (equipment-side failure)
Flashing Yellow Loopback toward T1 or equipment loop test
Flashing Green Loopback toward equipment or network loop test
