15-18
Axxius 800 - Release 2.2
Terminal Server Router Card
Connector Pinout
TSR Card Jumpers
The jumpers on the TSR card select the use of the 10/100Base-T (RJ-45) or RS-232.
There is one jumper for each port on the card. Each jumper can be set to
10/100Base-T or RS-232, independent of the others.

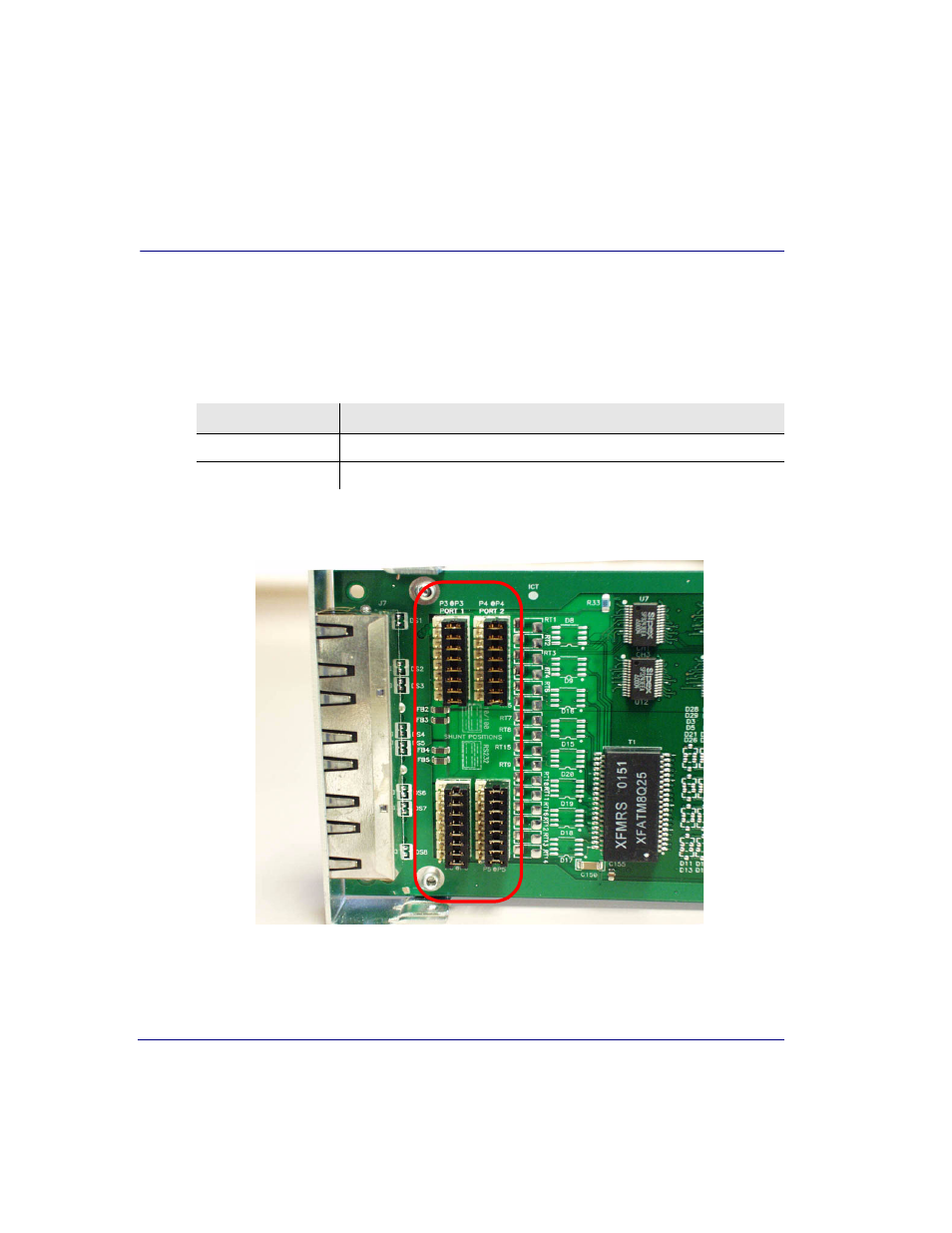

In the following graphic all port jumpers are set to 10/100Base-T Ethernet.
Connector
Placement
10/100Base-T
Position is farthest away from the front of the card
RS-232
Position closest to the front of the card
Card Front
