Quad DS1 ADPCM Card
Connector Pinouts
Connector Pinouts

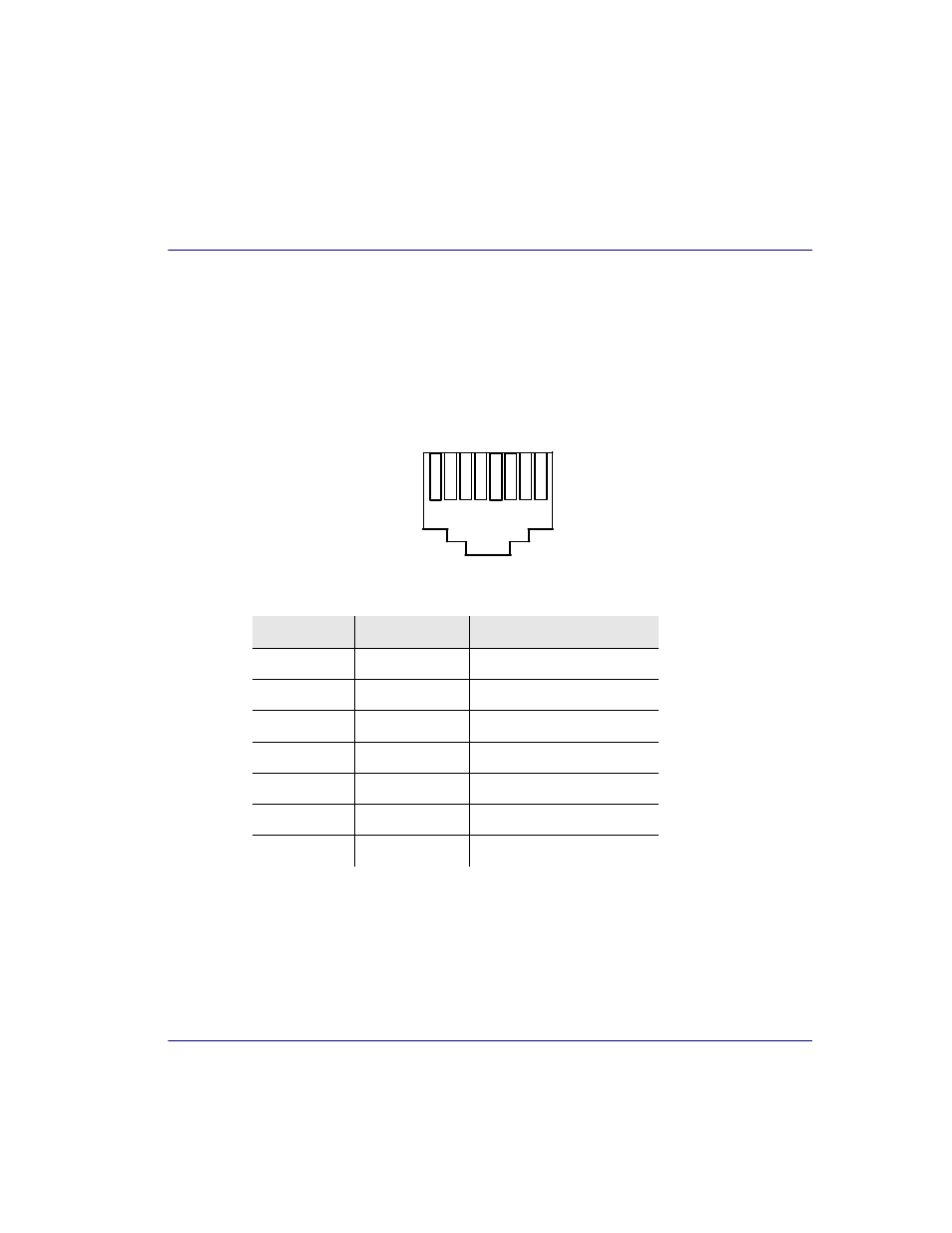

RJ-48 Connector
There are four RJ-48 (female) connectors on the front of the Quad DS1 ADPCM Card.
The pinouts are as follows:
Pin
Name
Description
1
Receive Ring
Receive from DS1 network
2
Receive Tip
Receive from DS1 network
3 n/c Not
connected
4
Transmit Ring
To DS1 network
5
Transmit Tip
To DS1 network
6 - 7
n/c
Not connected
8
Chassis Ground
1
8
