9400 regenerative power supply module | Parameter setting
Device interface
Device states
82
L
EDS94ARNExxxx EN 2.3 - 06/2014
4.2.4
State "Operation"
This is the device state of the regenerative power supply module during operation.
4.2.5
State "Warning active"
This state can occur simultaneously to the device states "Device is ready to switch on",
"Device is switched on" and "Operation" if a monitoring function responds for which the
error response "Warning" has been parameterised.
4.2.6
State "Warning locked active"
This state can occur simultaneously to the device states "Device is ready to switch on",
"Device is switched on" and "Operation" if a monitoring function responds for which the
error response "Warning locked" has been parameterised.
4.2.7
State "Trouble active"
This device state becomes active as soon as a monitoring function responds for which the
error response "Trouble" has been parameterised.
The device state is automatically exited when the error cause has been eliminated:
– "Trouble active" state < 500 ms: return to the original device state.
– "Trouble active" state > 500 ms: return via the device state "Device is ready to switch
on".

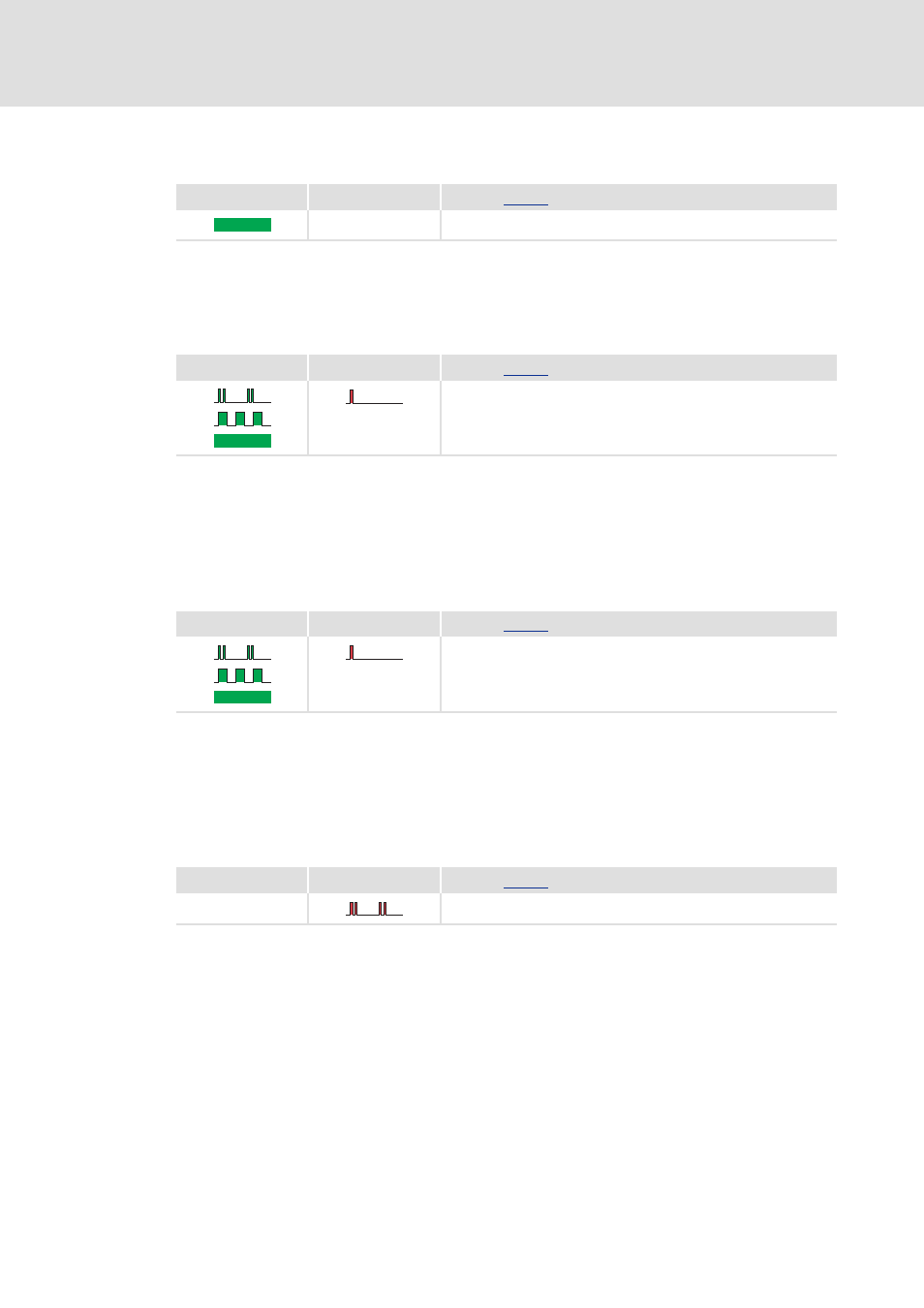

LED DRIVE READY
LED DRIVE ERROR
OFF
0: Operation
LED DRIVE READY
LED DRIVE ERROR
1: Operation/Warning active
LED DRIVE READY
LED DRIVE ERROR
2: Operation/Warning locked act.
LED DRIVE READY
LED DRIVE ERROR
OFF
104: Trouble active
