9400 regenerative power supply module | Parameter setting
"CAN on board" system bus
Communication phases/network management
6.5.2
Network management telegram (NMT)
The network management telegram contains the identifier "0" and the command, which
is included in the user data and consists of the command byte and the node address:

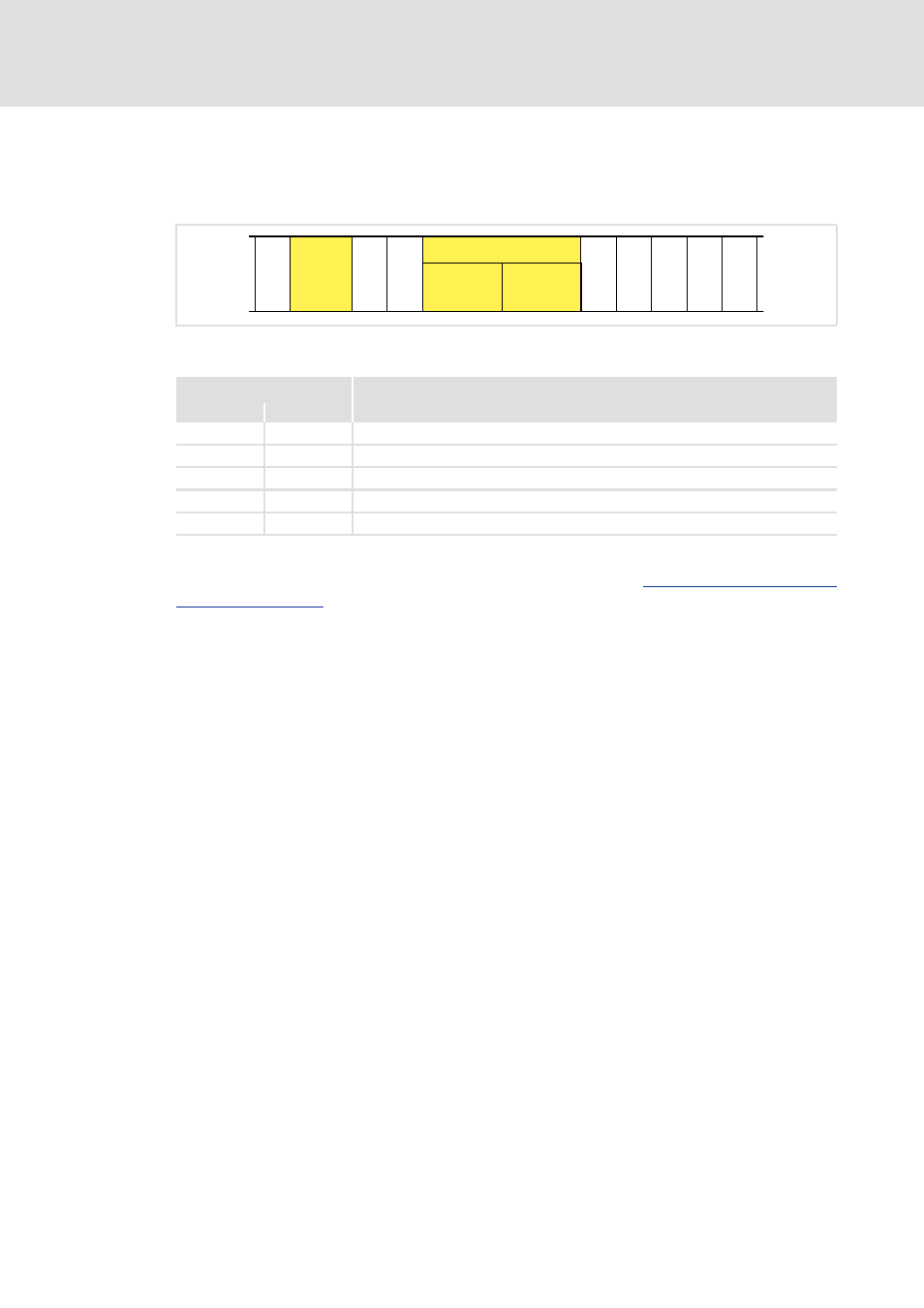

[6-5]
Network management telegram for changing the communication phases
One node, the CAN master, changes the communication phases of the entire network. The
CAN master can also be a regenerative power supply module.
Example:
Data exchange via process data object is only possible in the "operational" state. If all
nodes connected to the bus are to be switched from the "pre-operational" to the
"operational" communication state by the CAN master, the identifier and the user data of
the transmit telegram have to be set as follows:
Identifier: 0x00 (network management)
User data: 0x0100 (NMT command "start remote node" to all nodes)
%LW
%LW
%LW
%LW
%LW
%LW
%LW
%LW
%LW
,GHQWLILHU
8VHUGDWD%\WH
&2%,'
FRPPDQG
VSHFLILHU
FV
QRGH
DGGUHVV
QRGH,'
Command specifier (cs)
NMT command
dec
hex
1
0x01
Start remote node
2
0x02
Stop remote node
128
0x80
Enter pre-operational
129
0x81
Reset node
130
0x82
Reset communication
