Page 101: Setting the node address
EDS94ARNExxxx EN 2.3 - 06/2014
L
101
9400 regenerative power supply module | Parameter setting
"CAN on board" system bus
Possible settings via DIP switches
6.2
Possible settings via DIP switches
The front panel DIP switches of the memory module serve to set the baud rate and the
node address:

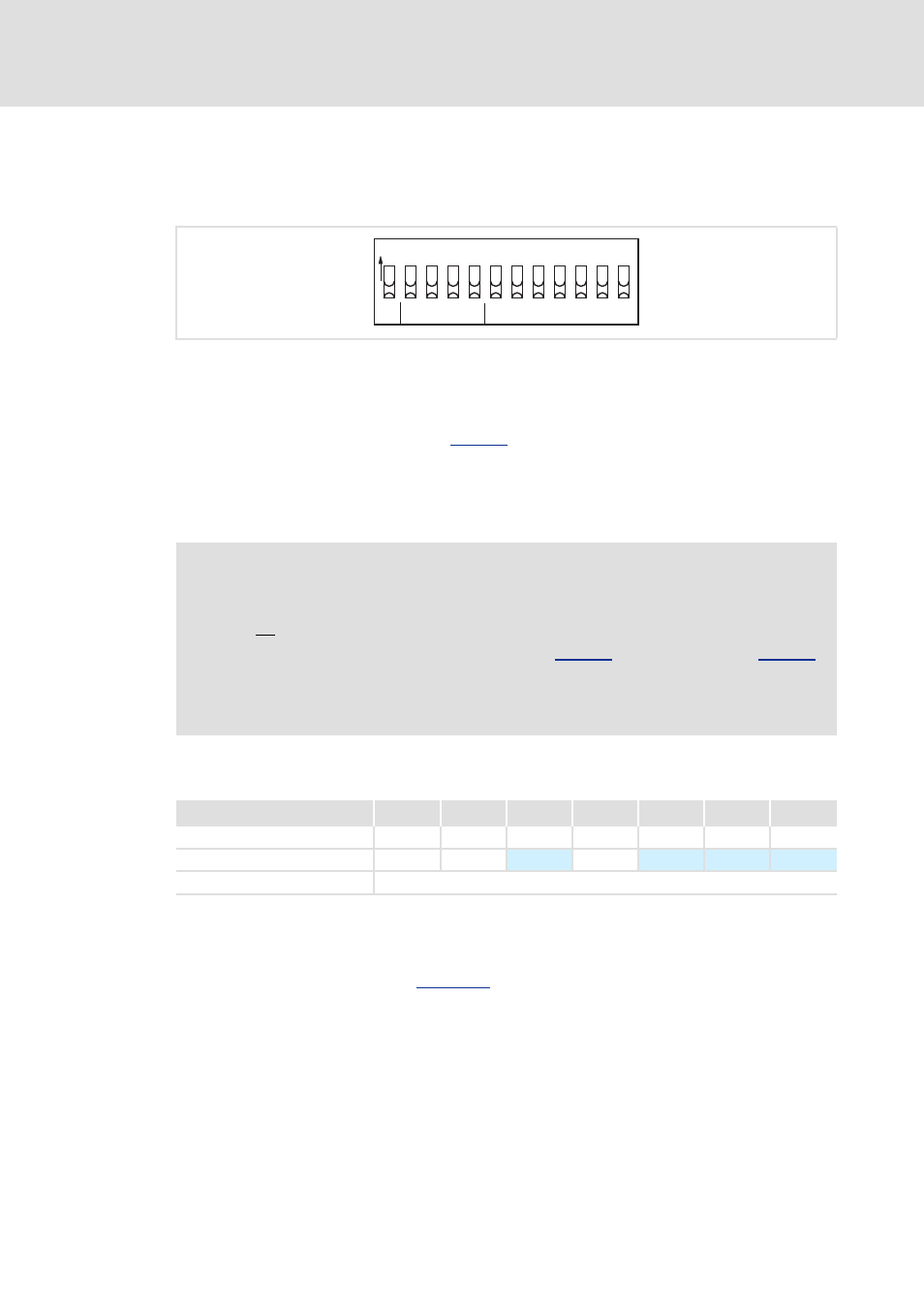

[6-1]
DIP switches
6.2.1
Setting the node address
The node address can be set via code
or via the DIP switches 1 ... 64.
The labelling on the housing corresponds to the values of the individual DIP switches
for setting the node address.
Valid address range: 1 … 127
Example: setting node address 23
Tip!
The node address resulting from the setting of the DIP switches at the last mains
switching is displayed in
.
Baud
CAN Address
O
N
c
d
b
a
64
32
16
8
4
2
1
Note!
• The addresses of the nodes must differ from each other.
• All twelve DIP switches = OFF (Lenze setting):
– On switching on, the settings of codes
(baud rate) are active.
• Switch off the voltage supply of the standard device and then on again to
activate changed settings.
DIP switch
64
32
16
8
4
2
1
Switch position
OFF
OFF
ON
OFF
ON
ON
ON
Value
0
0
16
0
4
2
1
Node address
= sum of all values = 16 + 4 + 2 + 1 = 23
