9400 regenerative power supply module | Parameter setting
Internal interfaces
LS_DigitalOutput - digital outputs
258
L
EDS94ARNExxxx EN 2.3 - 06/2014
9.4

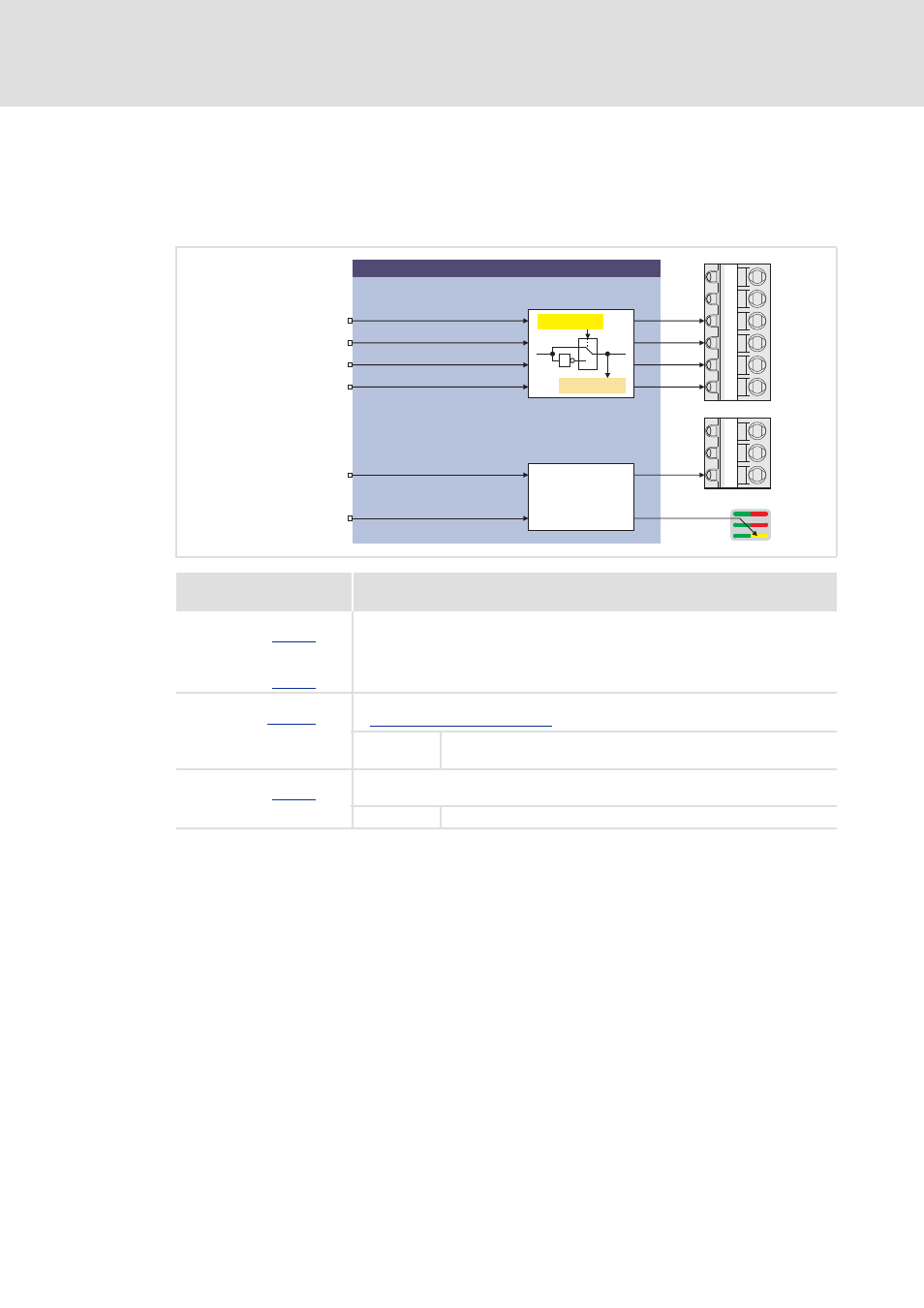

LS_DigitalOutput - digital outputs
The LS_DigitalOutput system block is the interface to the digital outputs, the state bus,
and the yellow user LED on the front panel of the regenerative power supply module in the
function block editor.
Input
DIS code | data type
Information/possible settings
DIGOUT_bOut1
| BOOL
...
DIGOUT_bOut4
| BOOL
Digital output 1 ... 4
DIGOUT_bStateBusOut
| BOOL
Setting the state bus to the "Error" state
"State bus" monitoring function ( 96)
TRUE The state bus is set to LOW level, all nodes connected to the state bus
initiate their pre-programmed response.
DIGOUT_bUserLED
| BOOL
Control of the yellow user LED on the front panel of the regenerative power supply
module
TRUE LED on
GO
24O
DO1
DO2
DO3
DO4
LS_DigitalOutput
DIGOUT_bOut1
DIGOUT_bStateBusOut
DIGOUT_bOut3
DIGOUT_bOut2
X4
1
0
1
C00118/1...4
DIGOUT_bOut4
DIGOUT_bUserLED
User LED
C00444/1...4
GE
24E
SB
X2
CONTROL
