4-28
IM WX104-01E
4.11 Savng Dsplay Template
Savng Templates

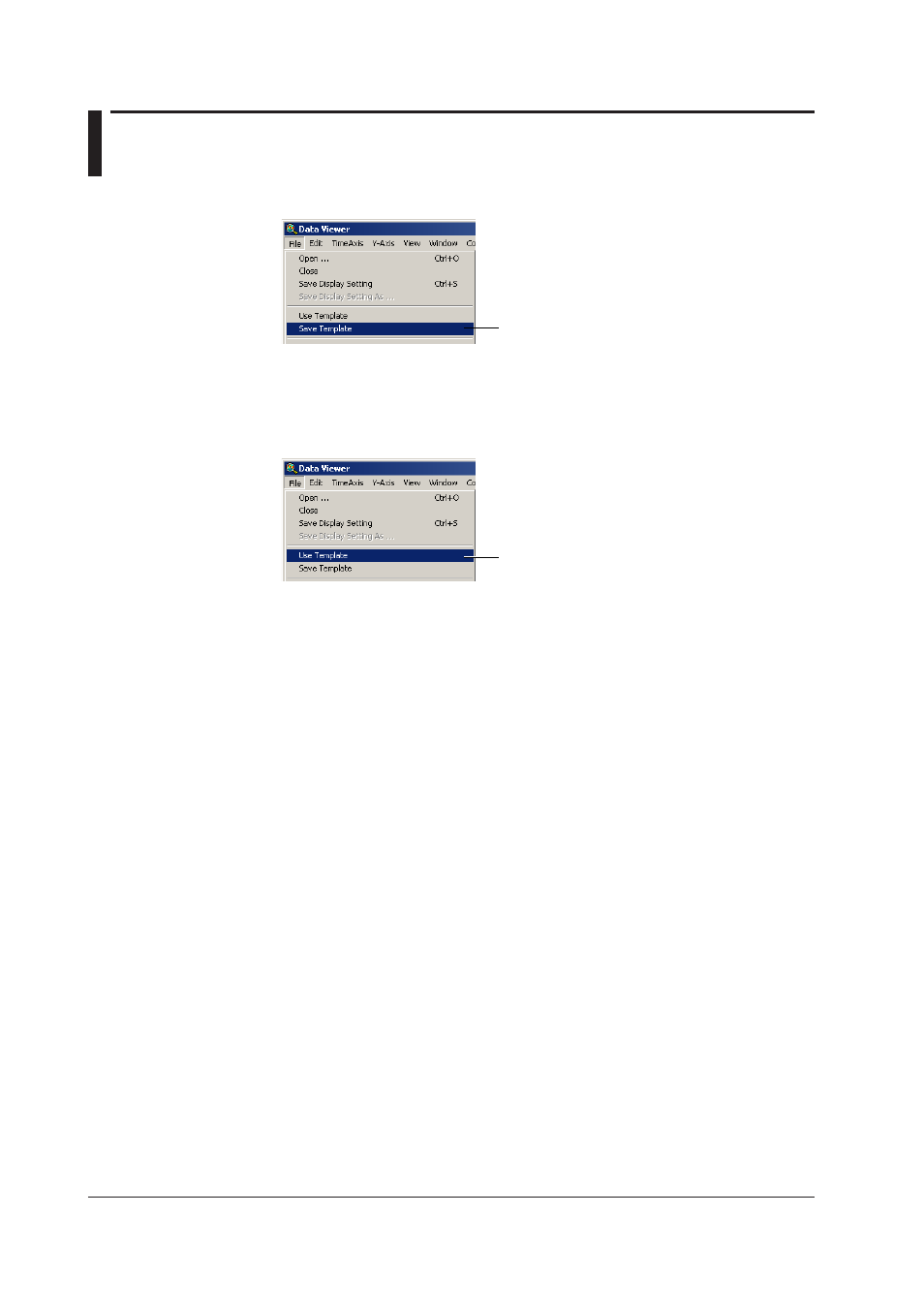

1. Click here [File] - [Save Template]
The currently displayed settings are saved as a template file to the same folder as the
displayed data.
Usng Templates
1. Click here [File] - [Use Template]
If the currently displayed data file is not accompanied by its display settings file, it is
displayed according to the setting information of the template file residing in the same
folder.
If the currently displayed data file is accompanied by its display settings file, it is
displayed according to the setting information of the display settings file.
If you do not wish to use the template, select File > Use Template again to clear the
check mark.
The template file is saved with the name default.tdx in the folder of the currently
displayed data. When using a template file, the template file residing in the same folder
as the displayed data is used. The setting information saved to the template file is as
follows.
• Print comment
• The background and grid color of the
waveform display area
• Y-axis zone setting
• The width of the zone display area of
each group
• ON/OFF condition of the clipping of the displayed
waveform
• The active waveform
• Settings specified in the General Display Settings
• The height of the data overview of each
group
• Zoom rate of the time axis
• Show/Hide condition of the zone display
area
• Display mode of the time axis (absolute/relative)
• Selected group
• Waveform display area
• ON/OFF condition of the alarm display
• Grid type
• Position of the display screen
• The channel identification string mode (channel/tag)
• ON/OFF condition of file information items (see
section 4.1)
