ng the CX1000/CX2000
8.3 Control Functon Basc Settngs
Make the basic settings of control function.

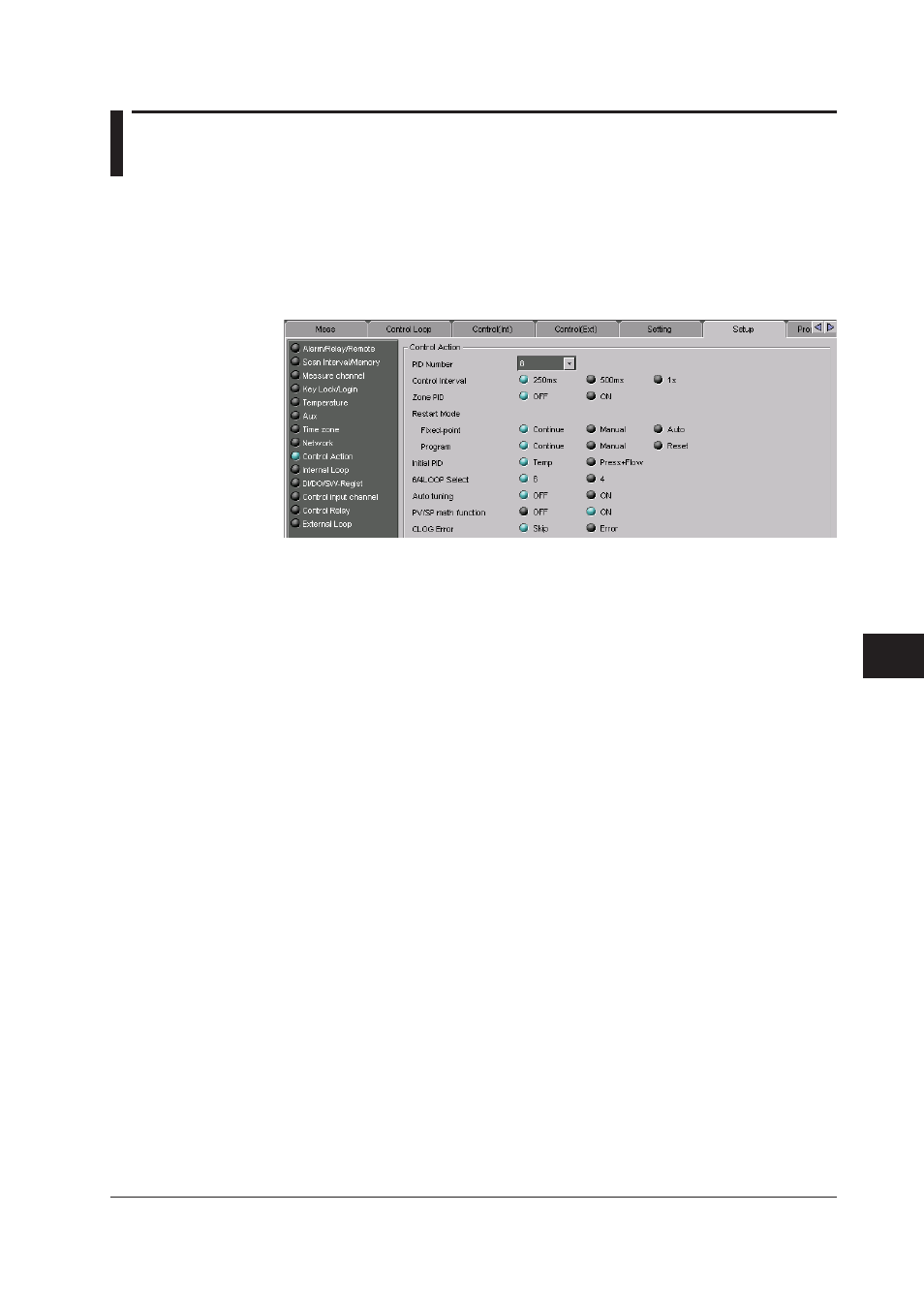

To do so, click the [Setup] tab then select the settings you wish to enter from the list that
appears on the left of the screen. Or, you can select the items by choosing [Control
Settings] - [Setup Mode].
Control Acton
PID Number
Set between 1 and 8. If the number is changed, the program pattern for the program
control option will be initialized.
Control Interval
Set to [250ms], [500ms], or [1s].
However, when [A/D Integrate] under [Scan Interval/Memory] is set to [100ms], you can
only select [1s].
Zone PID
Turn ON or OFF.
Restart Mode
Set to [Continue], [Manual], or [Auto].
With the program control option, the choices are [Continue], [Manual], or [Reset].
Intal PID
Set to [Temp] or [Press].
6/4LOOP Select (only for CX2000)
Set to 6 or 4 loops.
This selection is only available when the [LOOP] setting in the [System Configuration]
dialog box is set to [6LOOP].
Auto Tunng
Turn ON or OFF.
PV/SP Computaton Functon (CX Style Number S3 or Later)
Turn ON/OFF the PV/SP computation function. When turned ON, you can enter an
equation for PV/SP.
