Index
Conf
gur
ng the CX1000/CX2000
8.8
Measurement Channels Settngs

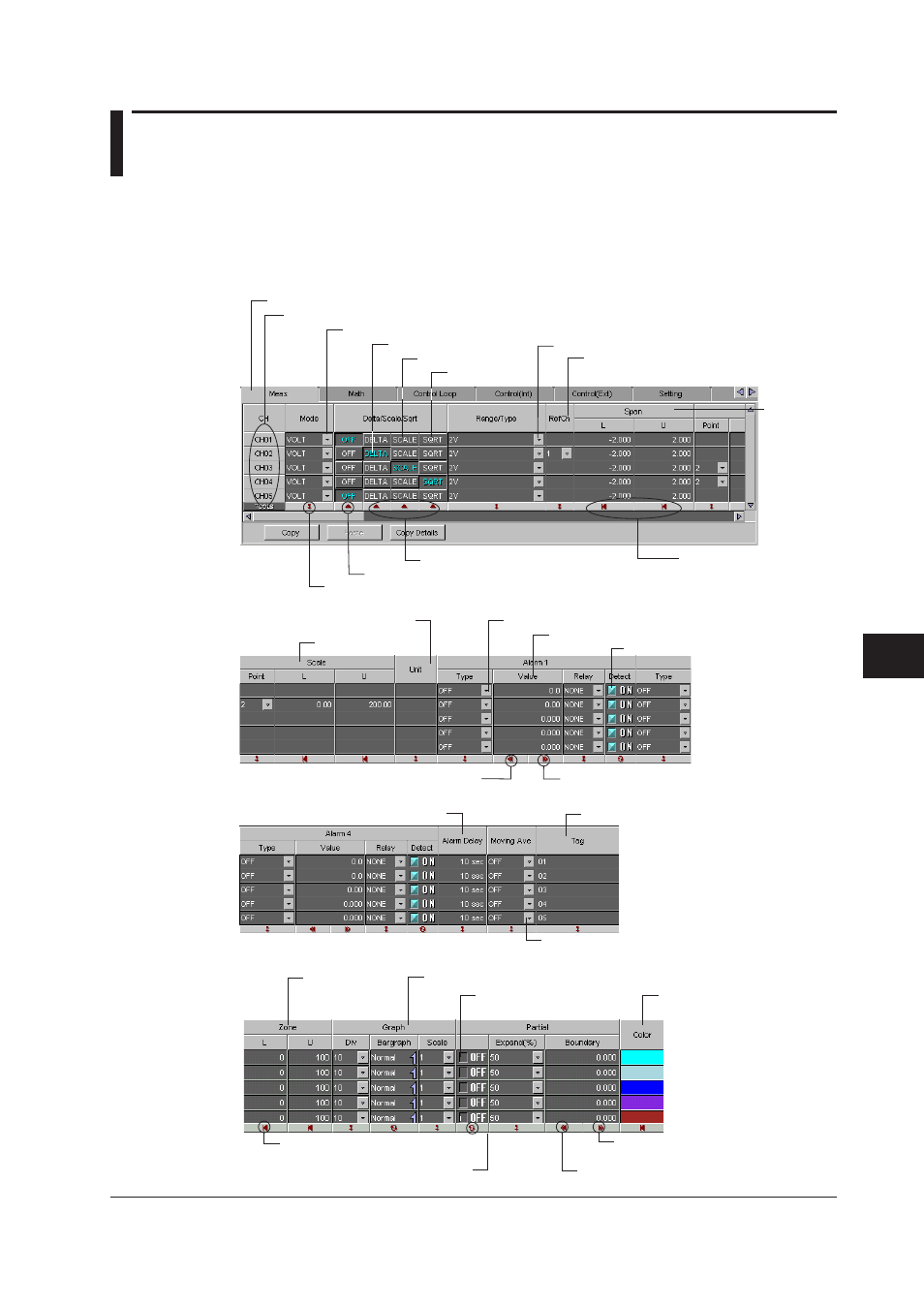

To enter measurement channel settings, click the [Meas] tab. Or, you can select the
items by choosing [Setting] - [SET [Regular] Setting] - [Meas Channels].
For version R3.02 or later, measurement channel settings are not available on 0
measurement channel models. The Meas tab and the measurement channels in the
Setting menu are not displayed.
Click this tab.
Double-click to set the channel.
Difference computation
Scale
Square root
Select the input mode.
Select the range/type.
Select the alarm type.
Select the relay number.
Select sampling count.
Turn ON/OFF the partial
expanded display.
Set the value to the minimum value possible.
Set the value to the
maximum value possible.
Select the reference for the difference
computation.
Specify the
span.
Specify a scale.
Specify the unit of the scale.
Specify the alarm value.
Specify a tag name.
Specify a delay period.
Specify a
display zone.
Select the graph settings.
Select the channel
display color.
Initialize
Initialize
Set the value to the minimum value possible.
Set the value to the maximum value possible.
Turn OFF all at once.
Copy the settings of the first channel in the selected range to all other channels.
Select all at once.
Turn ON/OFF all at once.
