When the [Save] is set to [Auto] in [Memory Save], specify the date and time of the save
operation.
• Timeup type
Select the type of save interval from [Hour], [Day], [Week], or [Month]. When you are
not using this function, select [OFF].
• Day of the week/Date
When [Timeup type] is [Week], select a day.
When [Timeup type] is [Month], specify the date, between 1 and 28. It is not possible
to specify dates 29 to 31.
• Time (hour)
When [Day], [Week], or [Month] is selected as [Timeup type], specify the time of the
save operation. When [Timeup type] is [Hour], this setting is invalid. Specify between
[00] and [23].
Channel (Settng the Burnout and RJC)

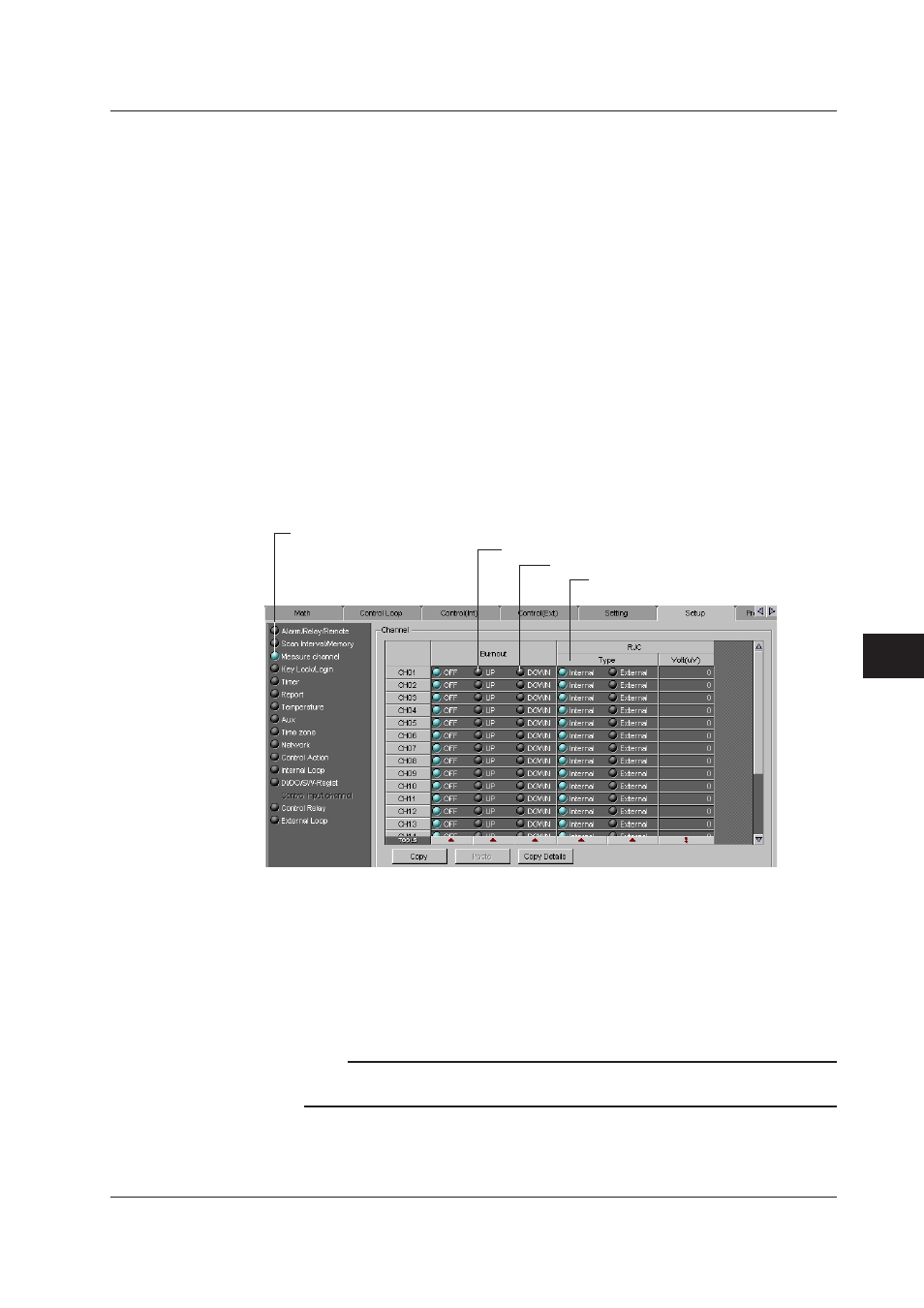

Click here. (Or choose the [Setting] menu - [SETUP [Basic] Setting] - [Setting].)
Set to the positive side (100%).
Set to the negative side (0%).
Set the reference junction compensation
to [Internal] or [External].
Burnout
Set the burnout operation. For details, refer to the CX User’s Manual (IM 04L31A01-01E
or IM 04L31A01-03E).
RJC Volt (uV)
Thermocouple input basic contact compensation setting. For details, refer to the CX
User’s Manual (IM 04L31A01-01E or IM 04L31A01-03E).
Note
You cannot enter [Channel] settings on models with 0 measurement channels. The menu does
not show [Channel].
