Alarm Mark
Displays marks indicating the values of the high and low limit alarms, delay high and low
limit alarms, and difference high and low limit alarms. This setting is common with the
bar graph display.
Mark knd
Settngs
Descrpton
Alarm
Indicates green under normal conditions and red when an alarm is activated.
Fixed
Displays a fixed color.
Scale dsplay
To display alarm point marks, select [ON].
Mark color
If the [Mark kind] is set to [Fixed], specify the color of the alarm point marks.
Copyng and Pastng Setup Data
The items checked in [Copy Details] can be copied and pasted. Click the channel
number to select the copy source or paste destination.
To select multiple channels to be copied, drag the channel number to specify the range
to be copied. To select multiple paste destinations, select the range in a similar fashion.
Click to display the screen for selecting
setting items to copy, then select the
desired items.

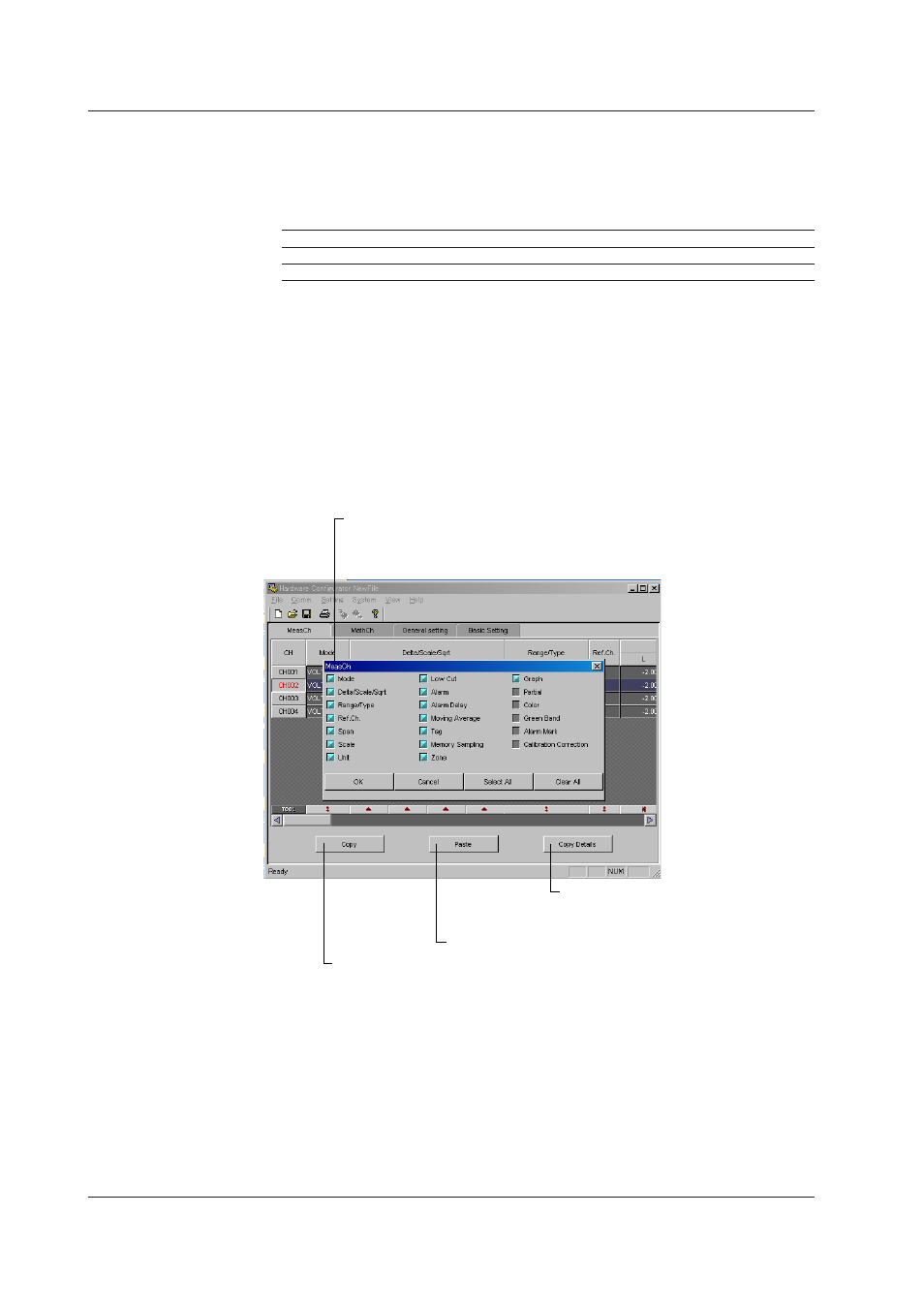

Example of the selection screen of the setting item
This screen is displayed when clicking the [Copy Details] button
The setting item names of the channel setup screen appear.
Blue means selected, gray means cleared.
Paste the selected settings to the specified range.
Copy the selected settings of the specified range.
1. Select the copy source channels. Click the [Copy] button.
2. Select the paste destination channels. Click the [Paste] button.
7.2 Settng the Measurement Channels, Ext. Channels
