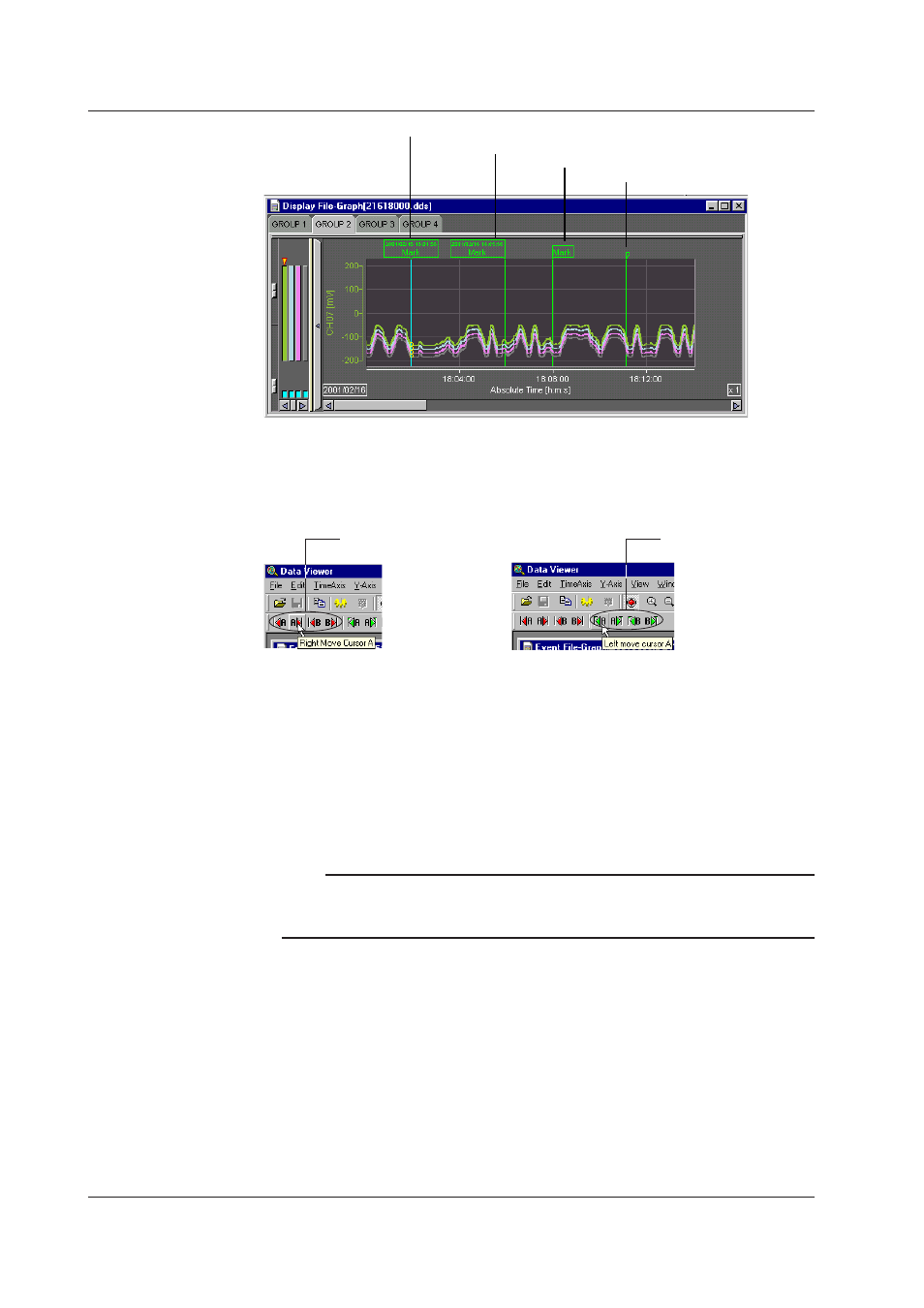

Displayed position: Center
Displayed position: Left
Displayed position: Right
Flag
If you left-click the mark while pressing the “Ctrl” key, the mark is displayed in front.
If you left-click the mark while pressing the “Shift” key, the mark is displayed in the back.
Searchng the Alarm Transton Pont and Mark Poston
Search the alarm transition point
Click one
Search the mark position
Click one
Searchng the alarm transton pont
Moves Cursor A or Cursor B to the alarm transition point (the point at which the alarm
occurred and the point at which the alarm was released) of the active channel.
Searching is possible to the left and right of the cursor.
Searchng the mark poston
Moves Cursor A or Cursor B to the mark position (arbitrary mark or trigger mark) of the
active channel.
Searching is possible to the left and right of the cursor.
Note
• The searching function cannot be used, if the cursor is not displayed.
• The search function cannot be used, if there are no arbitrary marks or when the alarm
display is OFF.
