8-37
IM WX104-01E
1
2
3
4
5
6
7
8
9
Index
Conf
gur
ng the CX1000/CX2000

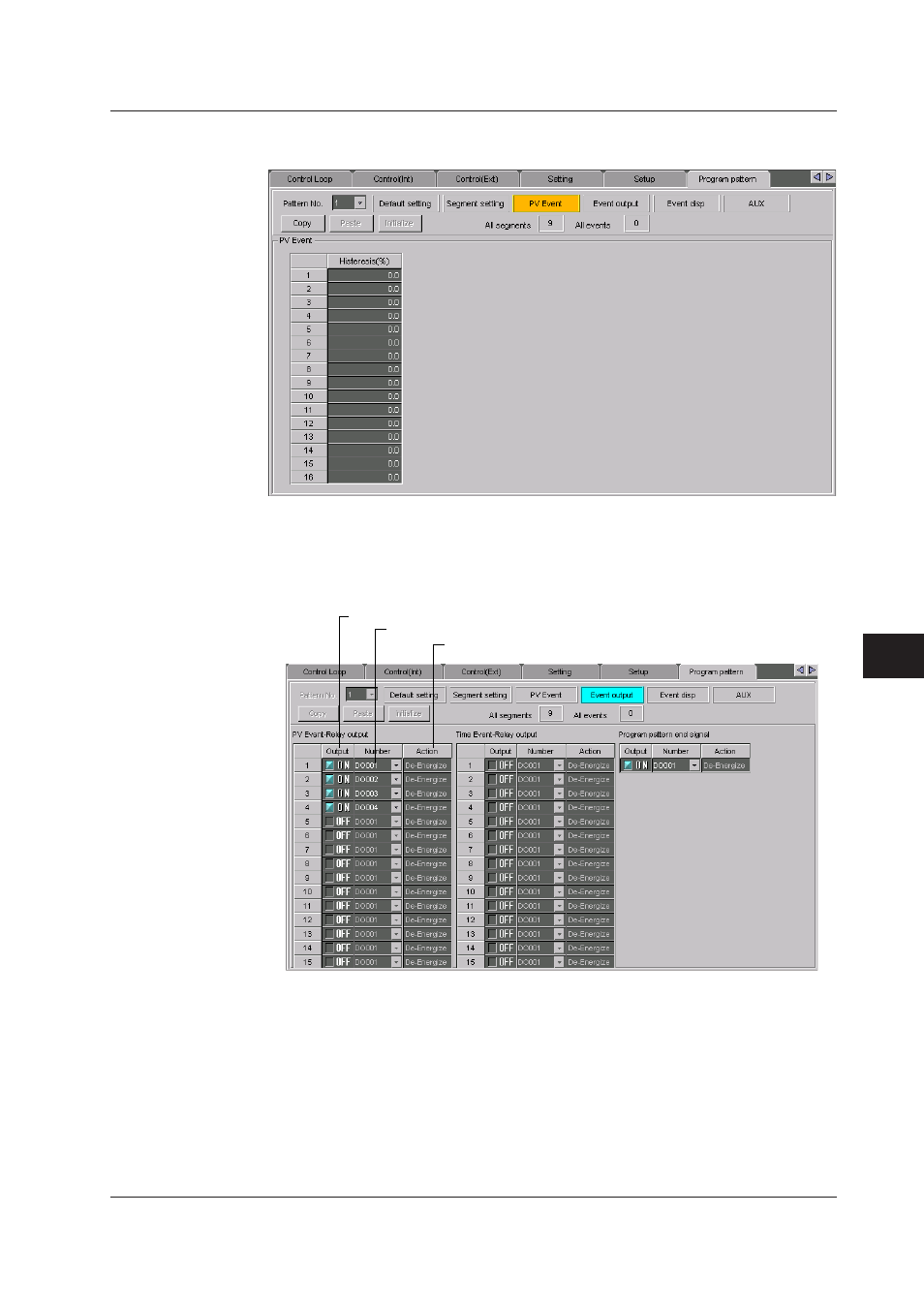

PV Event (CX Style Number S3 or Later)
Set the PV event hysteresis in the range of [0.0] to [10.0].
On Style 2 or earlier, the value is set from the setup menu of the [Setting] tab.
Event Output Settng(PV event-relay output/Tme event-relay output/Program
pattern end sgnal)
Turn OFF/ON the relay output
Select the number of the relay output terminal
Relay output action (settings cannot be entered here)
8.6 Program Control Related Setup Operatons
