Dsplayng the Waveform
Dsplayng the Waveform

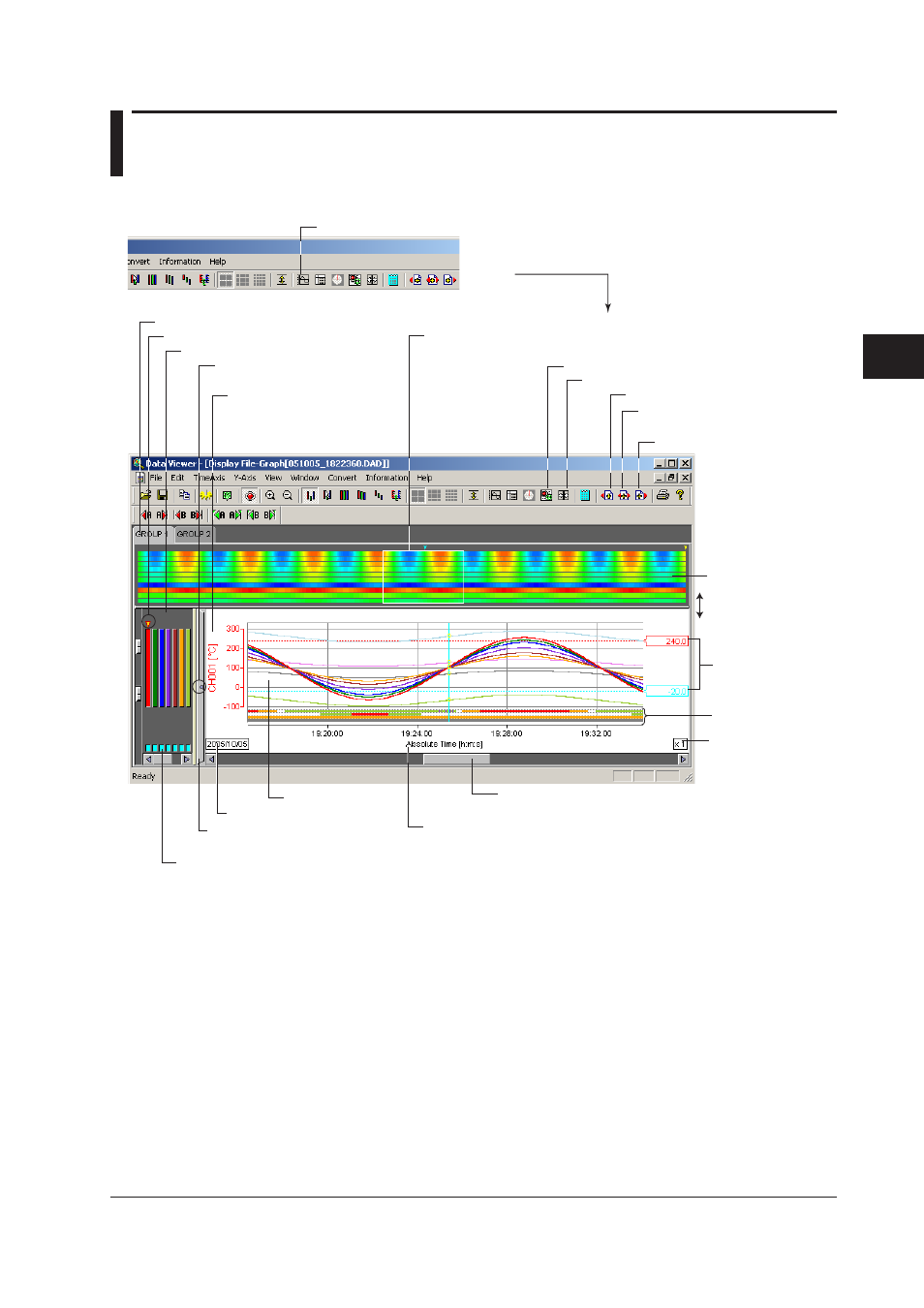

1. Click here ([Window] - [Graph]).
Group selection tab (click the tab of the group you wish to display)
2. The waveform display screen opens.
Mark on the active waveform
Zone display area
Show/Hide the zone
display area
Waveform label
(Select channel
No. or tag)
Display the cursor value
Trip line of the active
waveform
Color display adjuster
(turn ON/OFF the
color overview display)
Magnification
Display the alarm/mark list
Link the previous file
Link the next file
Link previous and
next files collectively
Indicates the section of the waveform
that is being displayed in a white frame
Move the waveform display position
(Scroll bar)
Absolute or relative time
Waveform
display area
Date
Drag this bar to change the
size of the zone display area
Turn ON/OFF waveform display
Alarm display area
Color overview
