1.3
Confgurng the Network
The network must be configured so that the RECORDER and the PC can communicate
properly using DAQEXPLORER.
Set the network configuration on the RECORDER side.
For the configuration procedure, see the respective communication interface user’s
manual.
1. Press the MENU key to display the setting mode menu.
2. Press the FUNC key for approximately three seconds to display the basic setting
mode menu.
For the DX100/MV100/CX1000
3. Press the [#10 (Communications)] soft key ([#9] (Communications) soft key on
CX1000), then the [#1 (Ethernet, IP address)] soft key. Then, press the [#2 (Ethernet,
DNS)] soft key.

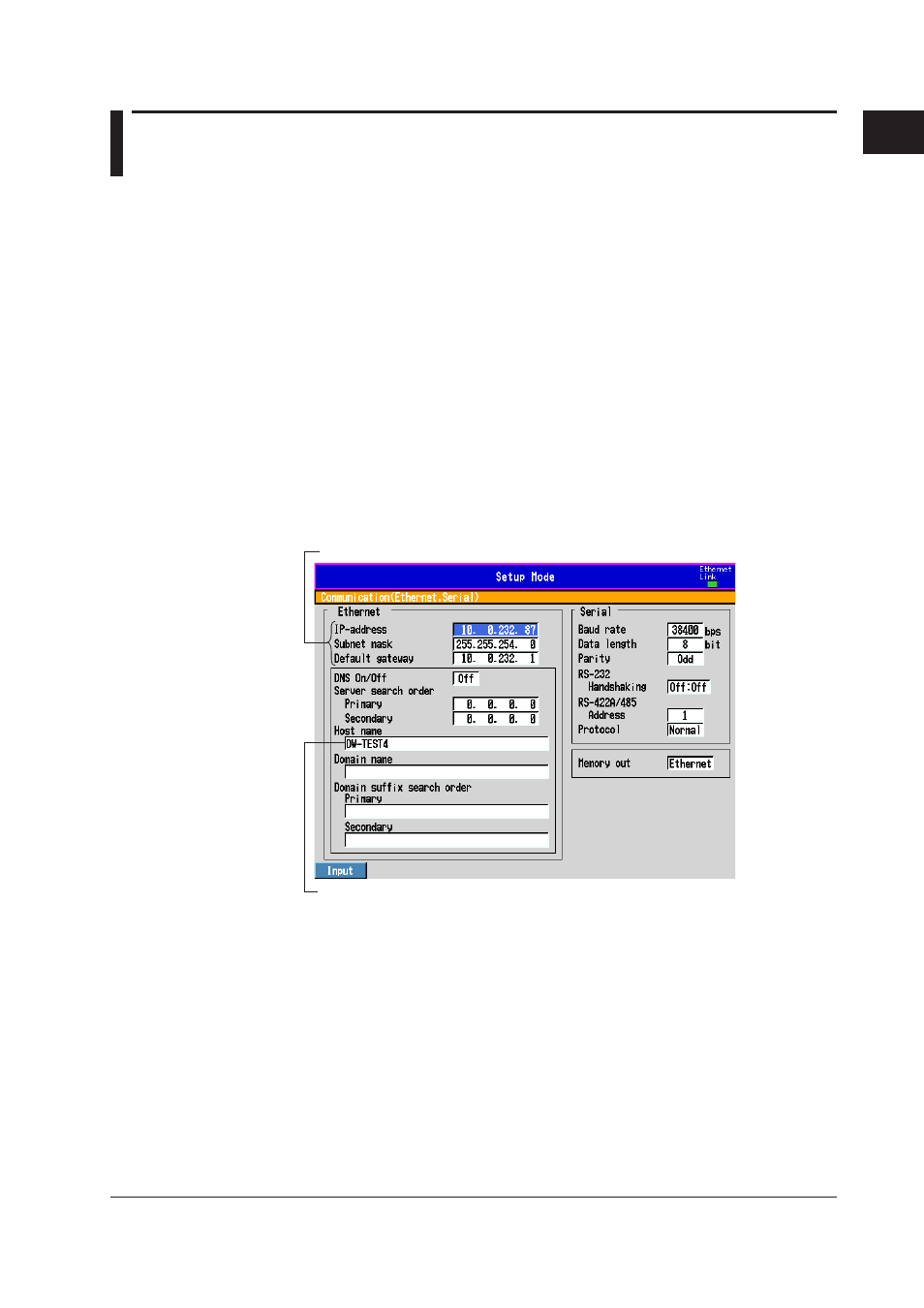

For the DX200/MV200/CX2000
3. Press the [#6 (Communications)] soft key ([#7] (Communications) soft key on
CX2000), then the [#1 (Ethernet)] soft key to display the following communication
function menu:
5. Enter a name.
4. Enter these three parameters.
Wth the DX1000
3. Choose Communcaton (Ethernet) > IP address. Enter the IP address, subnet
mask, and default gateway, then choose Communication (Ethernet) > Host
settngs, and enter the host name.
Wth the DX2000
3. Choose Communcaton (Ethernet) > IP address, Host settings, then enter the IP
address, subnet mask, default gateway, and host name.
* Host name The name that is specified here is used as an identification name for the RECORDER
that can be mounted from within the network folder. If a name is not specified, the IP
address will be used as the identification name.
