Page 52

3-17
IM WX104-01E
1
2
3
4
5
6
7
8
9
Index
Us
ng the Data Mon
tor
3.5

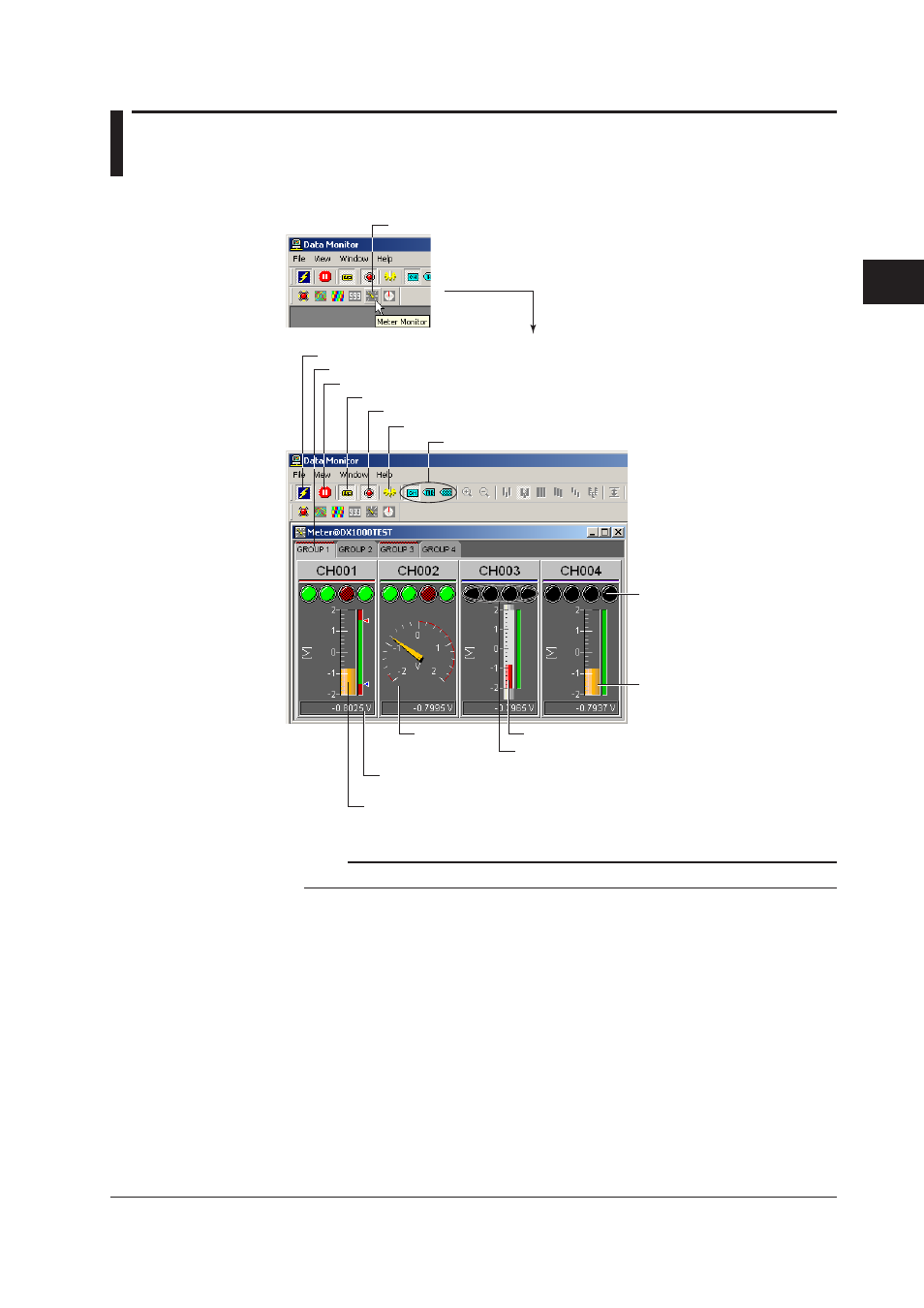

Dsplayng the Meter
Dsplayng the Meter
1. Click here ([Window] - [Meter Monitor]).
Connect/Disconnect the monitor (section 3.8, 3.10)
Pause the monitor (section 3.9)
Select the displayed group
Turn ON/OFF the link (section 3.9)
Turn ON/OFF the alarm display
General display settings
Characters used to identity channels (section 3.2)
Display the meter representing
the current measured value
Display the current
measured value numerically
Thermometer
Analog
meter
Display the channel No.,
tag No., or tag comment
2. The meter monitor opens.
Bar meter
Alarm display (Displays the conditions
of alarm 1, 2, 3, and 4 from the left)
Note
For the numeric display of abnormal data, see page 3-12.
