Set the DI number to be monitored.
Tag
Set the tag.
Enter up to eight alphanumeric characters.
TagComment
Set the tag comment.
Enter up to eight alphanumeric characters.
Operaton Status Dsplay
Set the label and color for displaying the status.

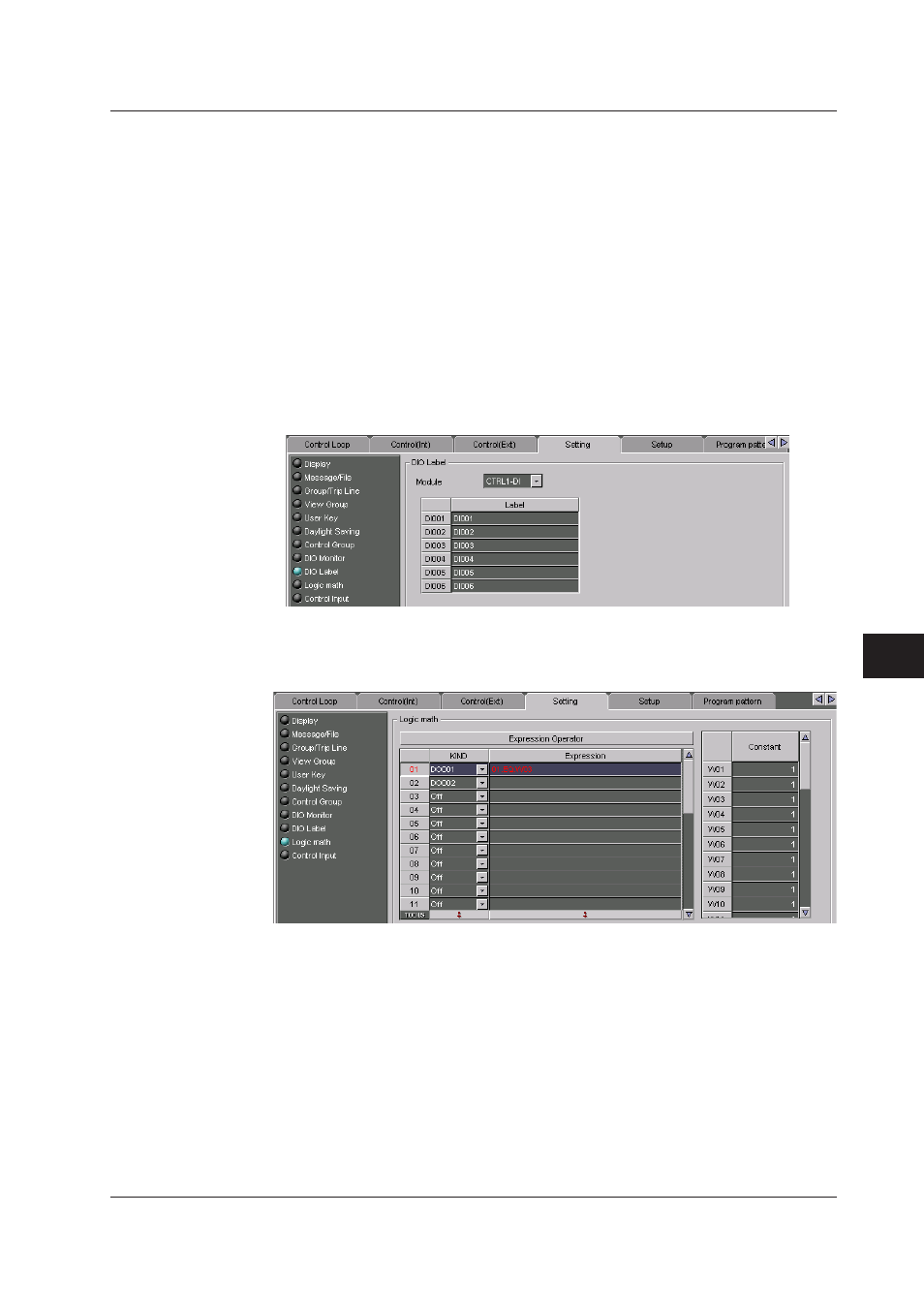

DIO Label (CX Style Number S3 or Later)
Set the DIO label.
Logc math (CX Style Number S3 or Later)
KIND
Set the output destination of the computed result.
Expresson
Enter the expression. Click the [Expression Operator] button to display the possible
operators.
Constant
Set constants to be used in the expression.
The constants are common with the constants of PV/SP math and retransmission.
8.4 Control Functon General Settngs
