Manual Sample
On a DX2000 with the external input channel (/MC1) option, specify the channel that will
be manually sampled. On all other models, all channels will be manually sampled so this
setting is not necessary.

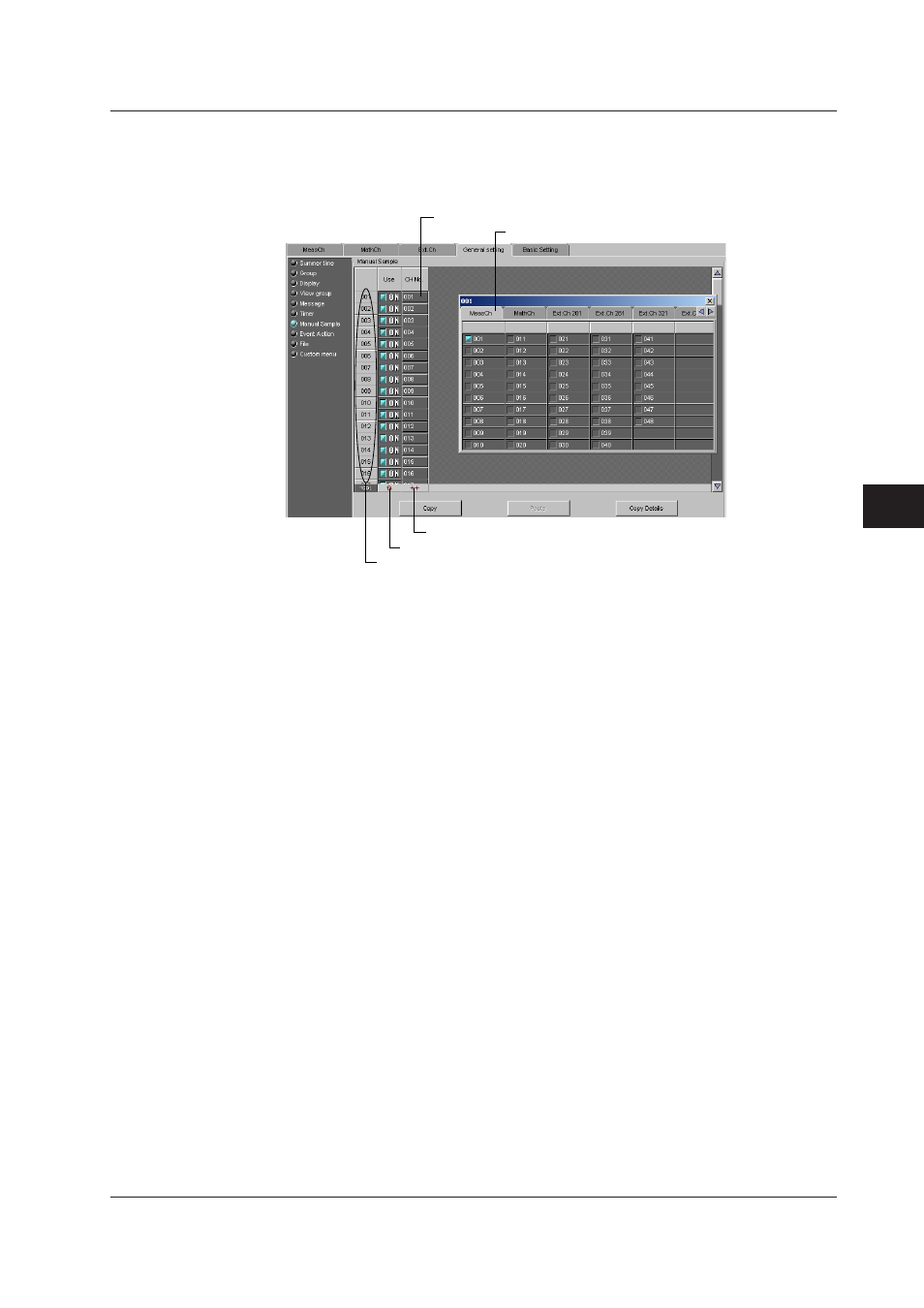

Click to display a channel selection dialog box.
Channel selection dialog box
Fill and increment by 1 starting from the top of the selection
Copy top of selection to all other items in the selection
Drag to select a range
Manual sample number
Select a number from 001 to 120. The instantaneous values are output in this order.
Manual Sample
• Use
Select On when assigning a channel to the manual sample number.
• CH No.
Enter a channel number of a measurement channel, computation channel (/M1 and
/PM1 options), or external input channel (/MC1 option).
