8.10 Dsplay Settngs
To enter display settings, click the [Setting] tab. Or, you can select the items by choosing
[Setting] - [SET [Regular] Setting] - [Display Setting].

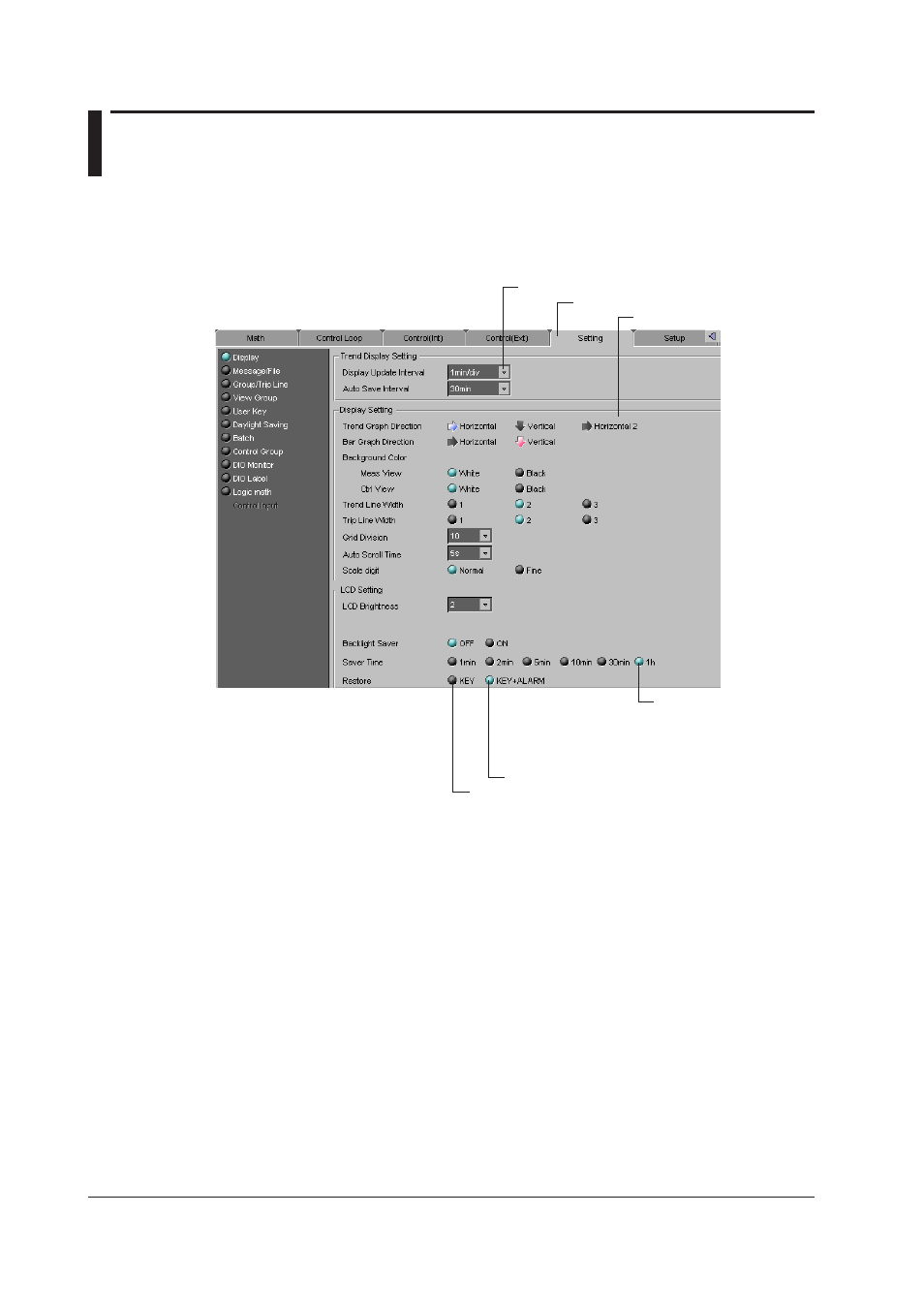

Screen Dsplay
Click this tab.
Select the time per division.
Select the display format.
Key operation exits screen saver.
Key operation or alarm exits screen saver.
The screen saver function
is activated when there is
no key operation or alarm
occurrence for the
specified interval.
Dsplay Update Interval
You can select the display update interval of the trend display from [1 min/div], [2 min/
div], [5 min/div], [10 min/div], [20 min/div], [30 min/div], [1 h/div], [2 h/div], [4 h/div], or [10
h/div] of the time axis.
Auto Save Interval
The auto save interval can be specified when the [Save] is set to [Auto] and the data type
is set to [DISPLAY] or [EVENT & DISP] in [Scan Interval/Memory] of the [Setup] tab.
Auto Scroll Tme
This is the time period used to automatically switch the displayed group. Select from [5s],
[10s], [20s], [30s], or [1min].
For details about the other settings, refer to the CX User’s Manual (IM 04L31A01-01E or
IM 04L31A01-03E).
