ng the CX1000/CX2000

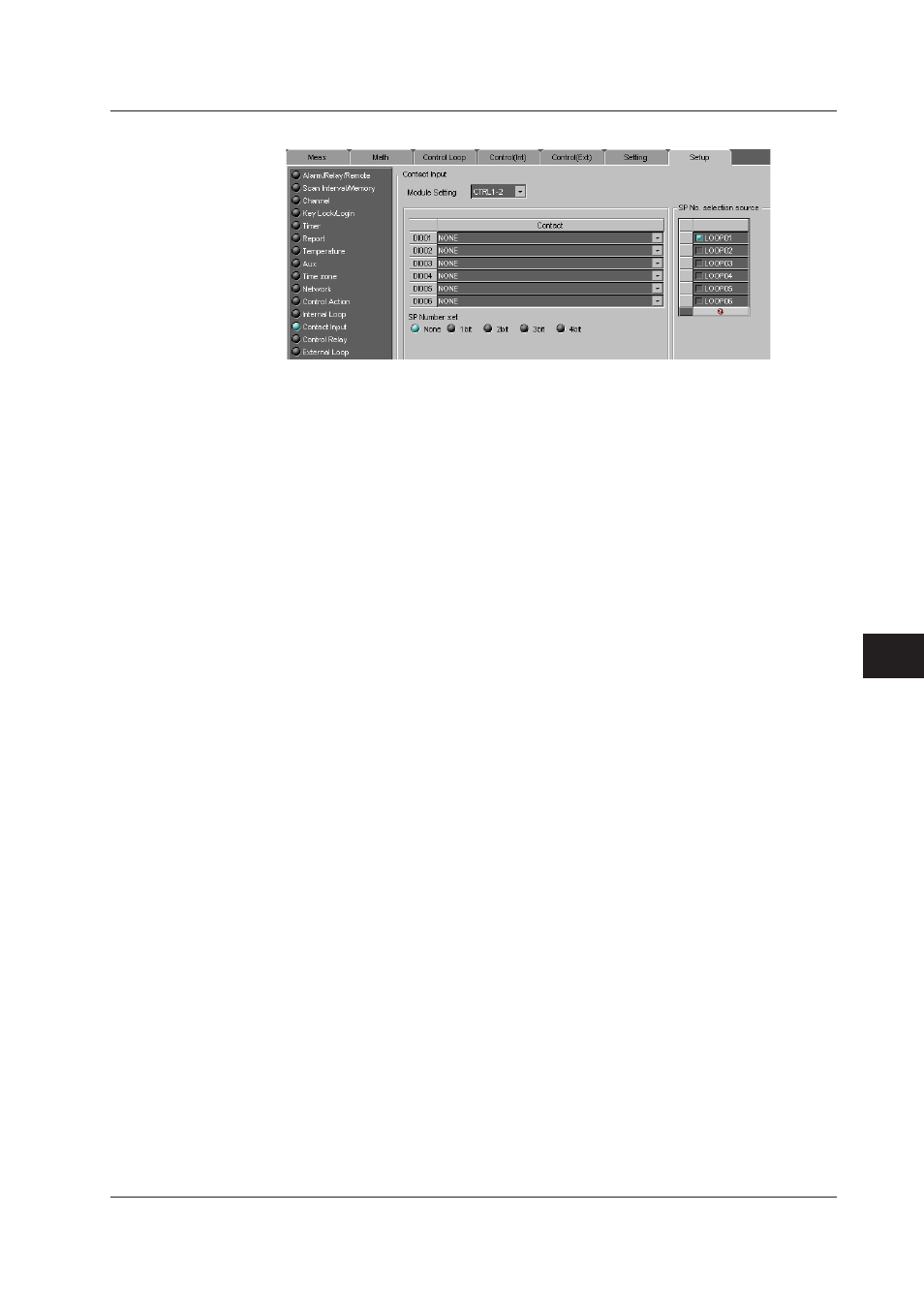

Contact Input
Module Settng
Select the terminal blocks where you want to register contact inputs from [CTRL3-4] for a
CX2000 with 4 loops or more, [CTRL5-6] for a CX2000 with 6 loops or more, or [EXTDIO]
for a CX2000 with External DIO selected for Alarm Relay.
Contact
For each contact input number, select the type of contact input from the following. Some
items may not be selectable depending on the system configuration and control mode.
For a description of each contact input, see the CX User’s Manual (IM 04L31A01-01E or
IM 04L31A01-03E).
• ControlStopAll
• ControlStartAll
• ControlStart/Stop
• Remote/Local
• Auto/Man
• Cascade
• Auto
• Man
• SPNumber0 to 3 bit (enter by selecting one of the options under SP Number set).
• PVSwitching
• Start program operation
• Stop program operation
• Hold
• Advance
• Memory Start/Stop
• Trigger
• Alarm ACK
• Time Adjust
• Math Start/Stop
• Math Reset
• Manual Sample
• Panel1 Load to Panel3 Load
• Message1 to 8
• Snapshot
• Set pattern number 0 to 4 bits (enter by selecting one of the numbers under Pattern
Number Selection. Valid when program control is ON)
SP Number Set
Select the SP number set to switch to when registering contact inputs.
8.3 Control Functon Basc Settngs
