3-9 IM WX104-01E
1
2
3
4
5
6
7
8
9
Index
Us
ng the Data Mon
tor

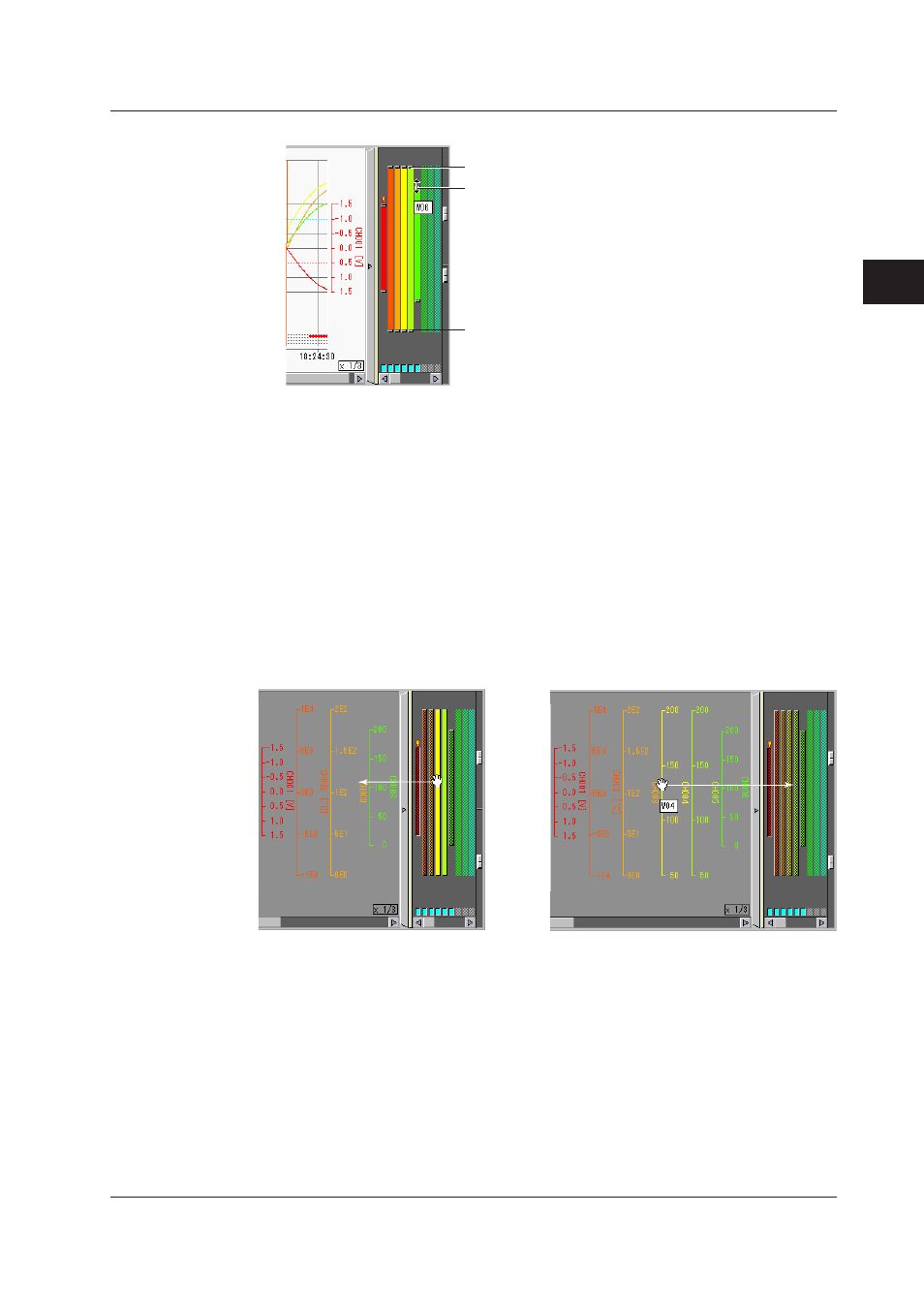

Edtng zones
Drag the top adjustment knob
Drag the zone display bar
Drag the bottom adjustment knob
You can change the waveform display zone on the trend display screen by clicking the
edit zone icon or by selecting [Y-Axis] - [Edit Zone].
The size of the zone can be changed by dragging the top and bottom adjustment knobs.
The entire zone can be moved by dragging the zone display bar.
The zones that are set in [Edit Zone] are reflected in the [Zone] setting of the [General
Display Settings].
Dsplayng multple Y-axs
When multi-axis zone is selected, the Y-axis scales corresponding to the [Y-Axis] boxes
in the [General Display Settings] that are checked will be displayed.
The Y-axis can only be added or deleted by dragging or dropping when the monitor is
paused.
• Adding a Y-axis • Deleting a Y-axis
Drag and drop Drag and drop
3.2 Dsplayng the Trend
