7-4 IM WX104-01E
7.2 Settng the Measurement Channels, Ext.
Channels

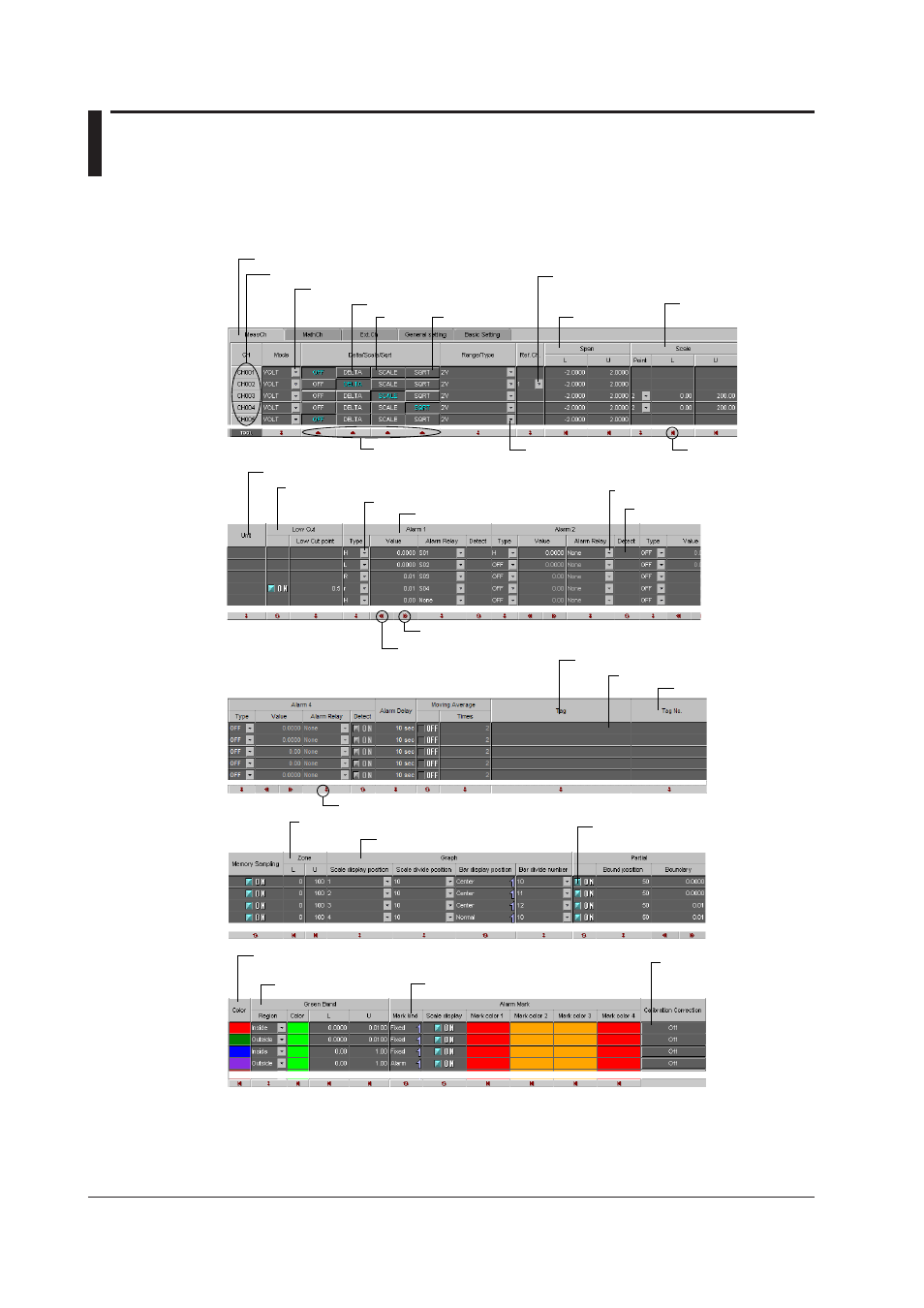

Enter external input channel settings in the same manner as those of the measurement
channel items. Also note that this measurement channel setting screen is only one
example; your actual screen may vary.
Select this tab
Double-click to set the channel
Difference computation
Scale Square root
Select the input mode
Select the range/type
Select the alarm type
Select the relay number
Turn ON/OFF the partial
expanded display
Set the value to the
minimum value possible
Set the value to the maximum value possible
Select the reference for the difference
computation
Set the span
Enter the scale
Enter the scale unit
Enter the alarm value
Enter the tag name
Enter the alarm delay
Enter the display zone
Select the graph setting
Select the channel display color
Initialize
Set the low cut
Select the ON/OFF
Enter the sampling count
Set the green band Select the mark type
Click here to set the
calibration correction
(see page 7-6)
Set all
Copy the settings of the first channel in the selected range to all other channels
