3.1
Startng the Data Montor

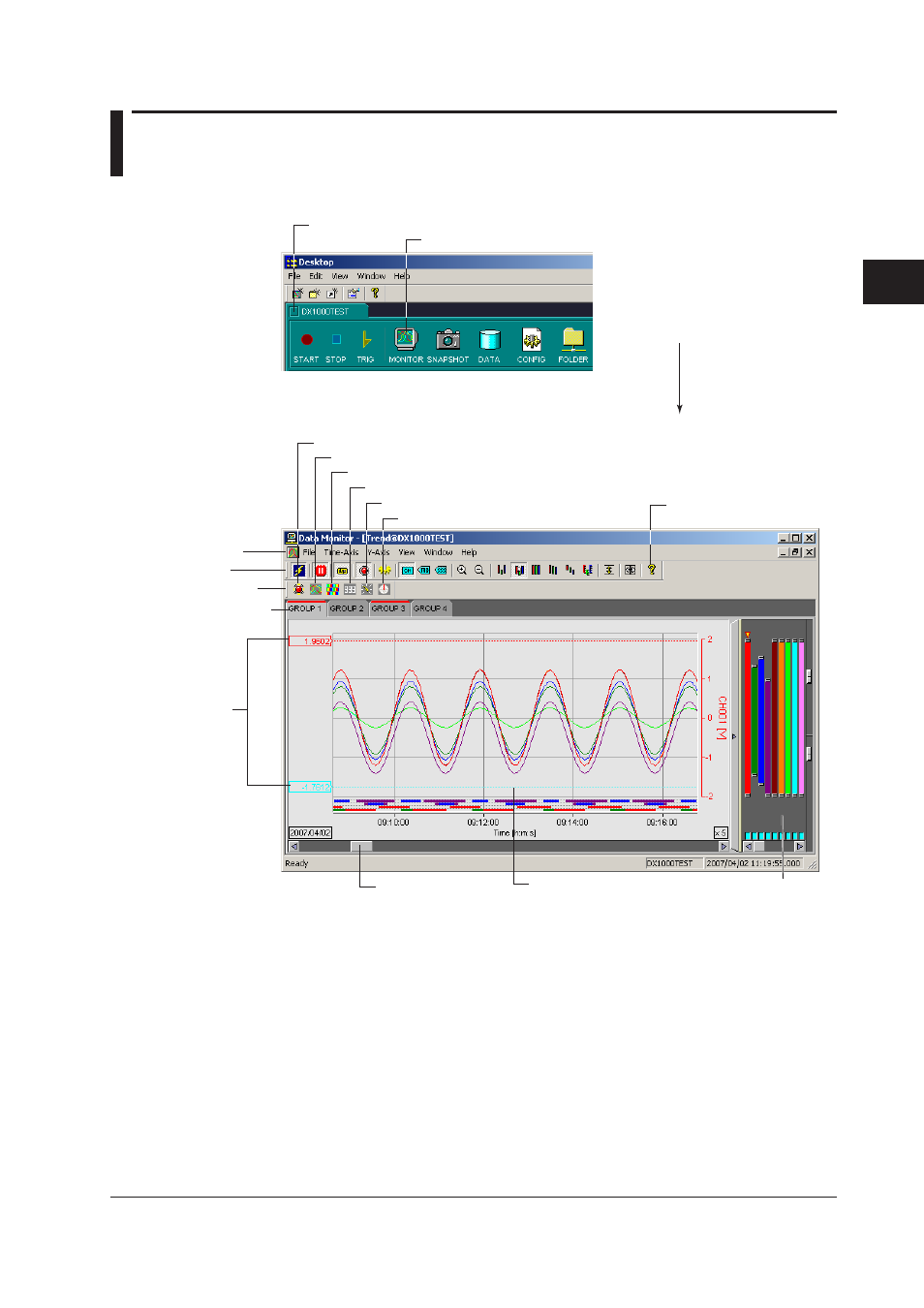

Startng the Data Montor (From the DX/MV/CX Folder)
DX/MV/CX folder
Alarm monitor (section 3.6)
Menu bar
Toolbar
Monitor bar
Trend monitor (section 3.2)
Color graphic monitor (section 3.3)
Numeric monitor (section 3.4)
Meter monitor (section 3.5)
Circular monitor (section 3.7)
Display version information
of the Data Monitor
Zone display area
Waveform display area
Status bar
1. Double-click here.
2. The trend monitor opens.
Trend monitor
Trip line
The Data Monitor can be used to monitor the measured/computed data and the alarms
of the RECORDER. The following six monitoring methods are available:
• Alarm monitor
• Trend monitor
• Color graph monitor
• Numeric monitor
• Meter monitor
• Circular monitor
