4-6
IM WX104-01E

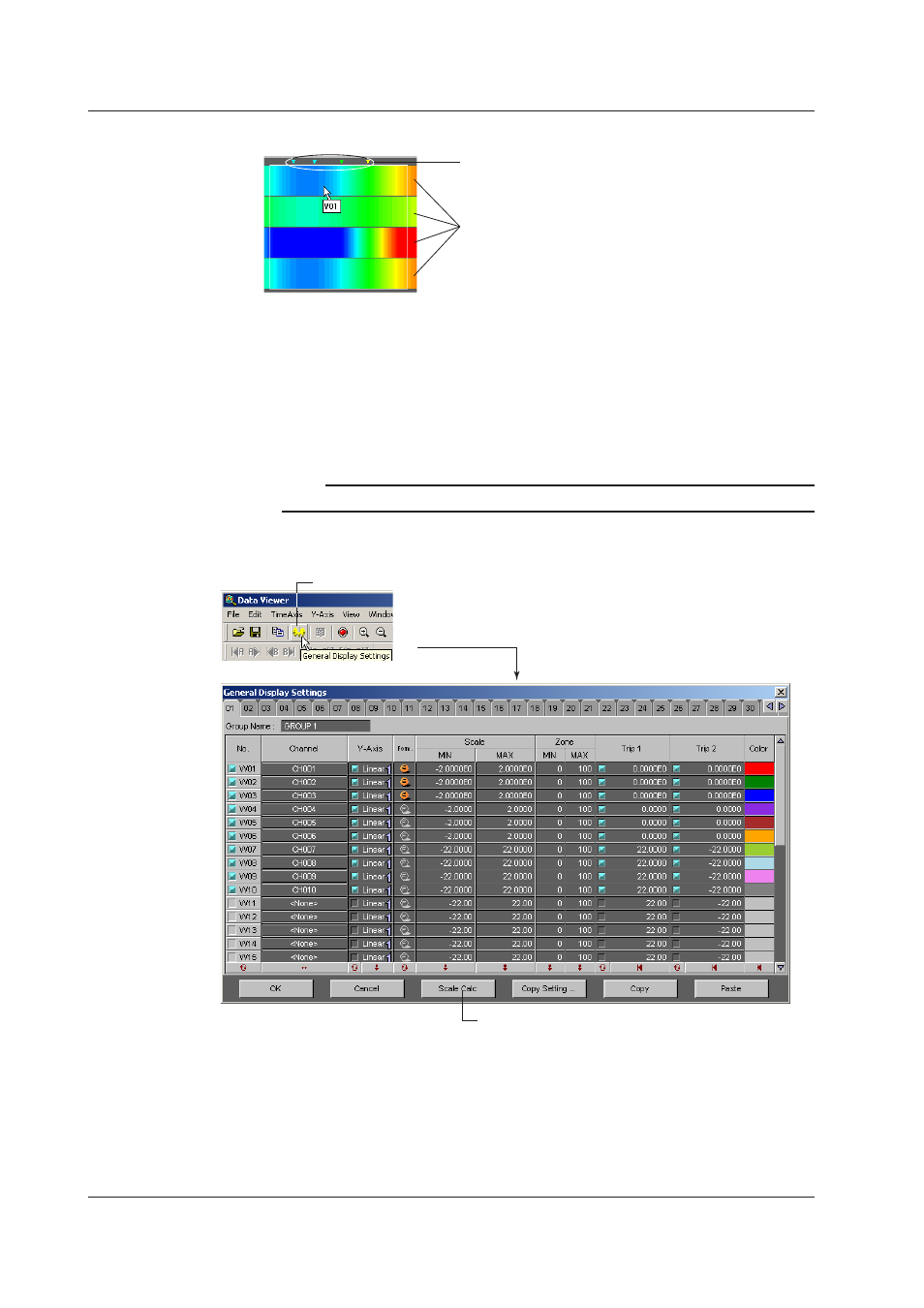

Color overvew dsplay
Displays the waveforms that
have the display turned ON
Displays marks and cursors
The measured values of the entire data are displayed using various colors. By assigning
50 different colors from the minimum to the maximum values of the scale, the measured
values are assigned to those colors.
If the data are display data, the maximum value is displayed at the top of the space
allocated to a single waveform, and the minimum value is displayed at the bottom.
If you click or drag the cursor on the color overview display area, the section of the
waveform is displayed in the waveform display area.
Note
The color overview is turned OFF as default.
General Dsplay Settngs
1. Click here ([View] - [General Display Settings]).
2. The [General Display Settings]
dialog box opens.
Set the maximum and minimum values of the measured
data the maximum and minimum values of the scale.
For details related to the setting procedures, see “General Display Settings” in section 3.2,
“Displaying the Trend.”
4.2 Dsplayng the Waveform
