8.13 Sendng the Setup Data to the CX
The method used to send the data varies depending on whether a CONFIG file or setup
data file is being transmitted.

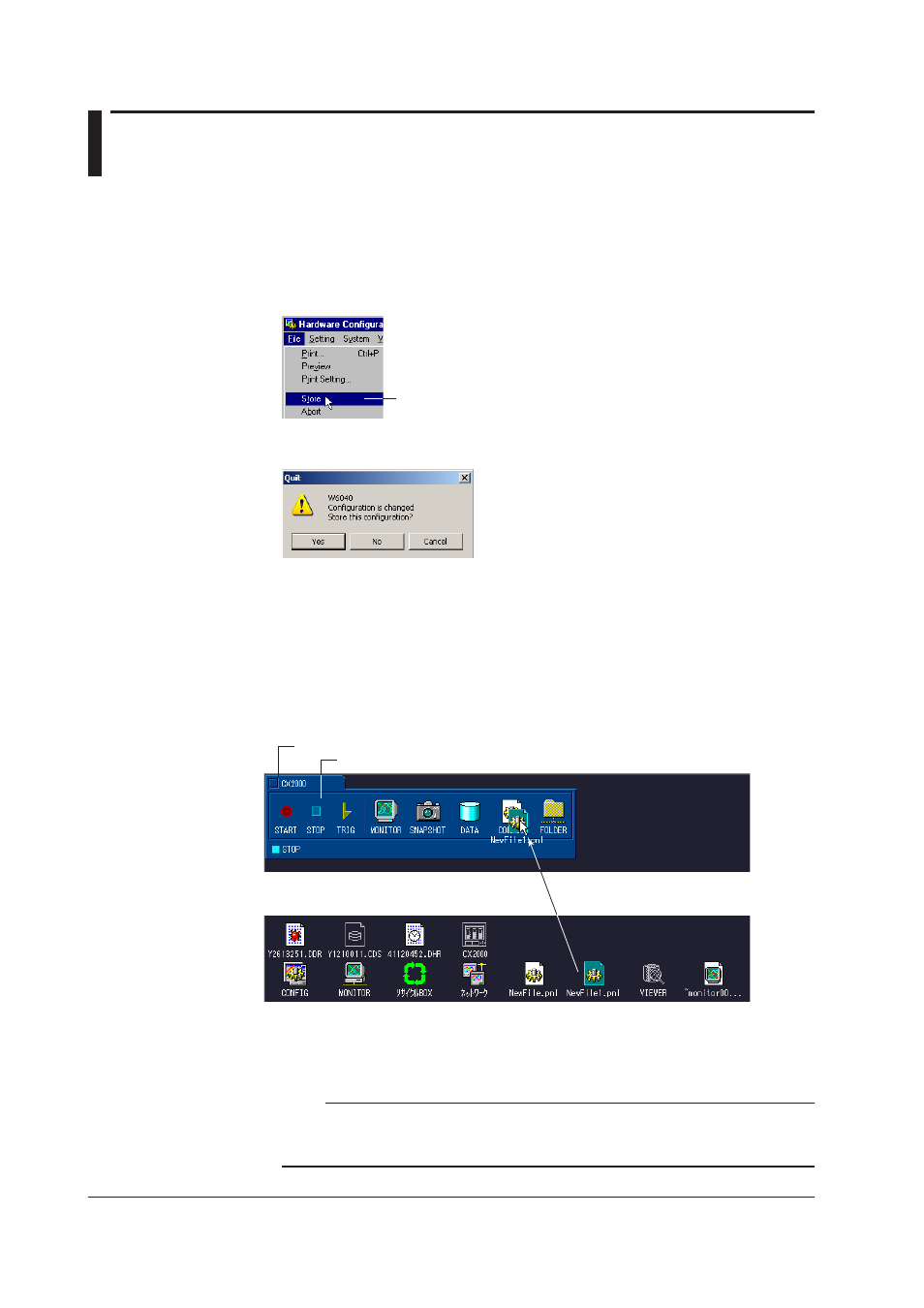

CONFIG fle
The following two methods are available:
• Selectng from the toolbar
The setup data are sent when [File] - [Store] is selected.
• Clckng the [X] button
When the Configurator is closed by clicking the [×] button, a confirmation dialog box is
displayed.
To send the new setup data to the CX, click the [Yes] button.
Otherwise, click the [No] or [Cancel] button.7
If the CX is acquiring data to the memory, a message “Now Memory & Math sampling.
Can’t store setting” is displayed. The data will not be sent in this case.
Setup data fle
CX folder
1. Stop the data acquisition to the memory.
2. Drag and drop the file onto the CONFIG
icon of the CX folder
The contents of the setup data file (*.PNL) located on the DAQ Desktop can be
transmitted. If the CX is acquiring data to the memory, the data will not be sent in this
case.
Note
Of the network settings in the [Setup] tab, the following items are not transmitted.
• [IP Address] under the [TCP/IP] tab
• All settings under the [Serial], [Modbus master], and [Web] tabs
