Page 85

4-23
IM WX104-01E
D
splay
ng Data w
th the Data V
ewer
1
2
3
4
5
6
7
8
9
Index
4.9

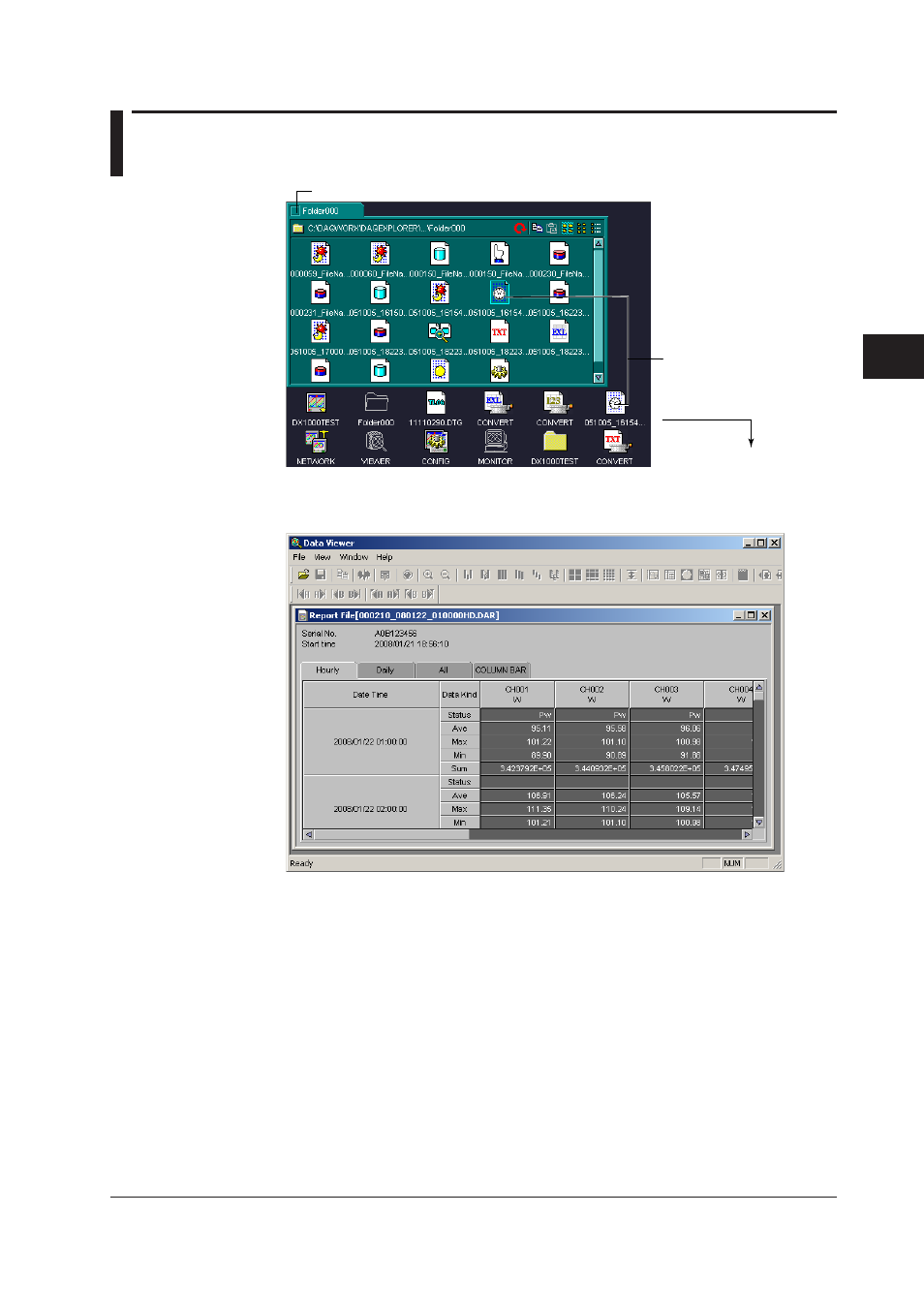

Dsplayng the Report Fle
DX/MV/CX folder
1. Double-click the report
file icon.
2. The file opens.
Example of a DX1000/DX2000/MV1000/MV2000 Report Fle
[Hourly] tab
• Status
The following icons are displayed in Status.
Er : A measurement error or computation error occurred during the period over which
the report was created.
Ov: An ober range or computation overflow occurred during the period over which
the report was created.
Pw: A power failure occurred during the period over which the report was created.
Cg: The time was changed during the period over which the report was created.
Bo : The burn out occurred during the period for the report.
