Turn ON/OFF the Alarm Sound
An alarm sound can be generated when an alarm occurs. To stop the alarm sound,
confirm all alarms by clicking all groups in which alarms are occurring or select [View] -
[Alarm Hold Reset].
Note
• Only one alarm monitor can be displayed for one connection. If you displayed multiple
alarm monitors, select [File] - [Connect] to reconnect to the host. For details related to the
connection, see section 3.8.
• To use the alarm sound, a sound source (sound card) must be installed on the PC.
Selectng the Informaton to be Dsplayed
Click for the overview display
Click for the alarm log display

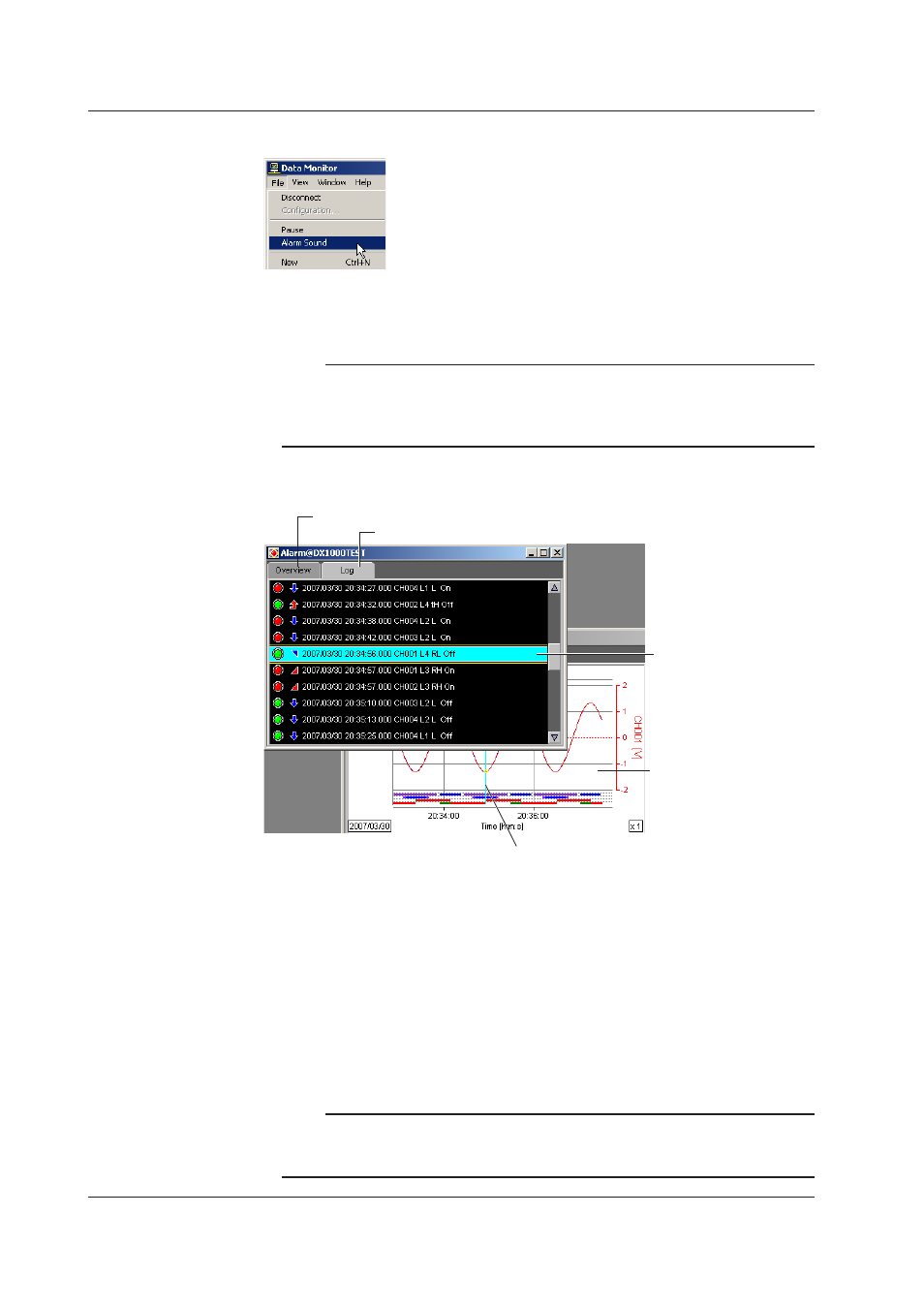

Alarm log display
Cursor displayed at the alarm occurring location
Trend screen
Overvew and log
The following two types of alarm displays are available:
• Overvew
The following four types of lamps are used to display the alarm conditions within the
group:
• Green lamp:
No alarms are occurring.
• Red lamp:
An alarm is occurring.
• Green lamp and blinking ring: No alarms are occurring, but there are alarms that have
occurred in the past that have not been confirmed.
• Red lamp and blinking ring:
An alarm is occurring. In addition, there are alarms that
have occurred in the past that have not been confirmed.
Note
By displaying the overview and clicking the group in which the alarm is occurring, the alarm
can be confirmed. You can also confirm alarms by selecting [View] - [Alarm Hold Reset]. The
blinking ring disappears when a confirmation is made.
