Index
Conf
gur
ng the CX1000/CX2000
• Bias (PV1/2 or Remote)
Turns ON/OFF the use of the bias.
When it is ON, set the value in the EUS (–100 to 100%) range of the measurement.
• Filter (PV1/2 or Remote)
Turns ON/OFF the use of the filter.
When it is ON, set the value between 1 and 120 s.

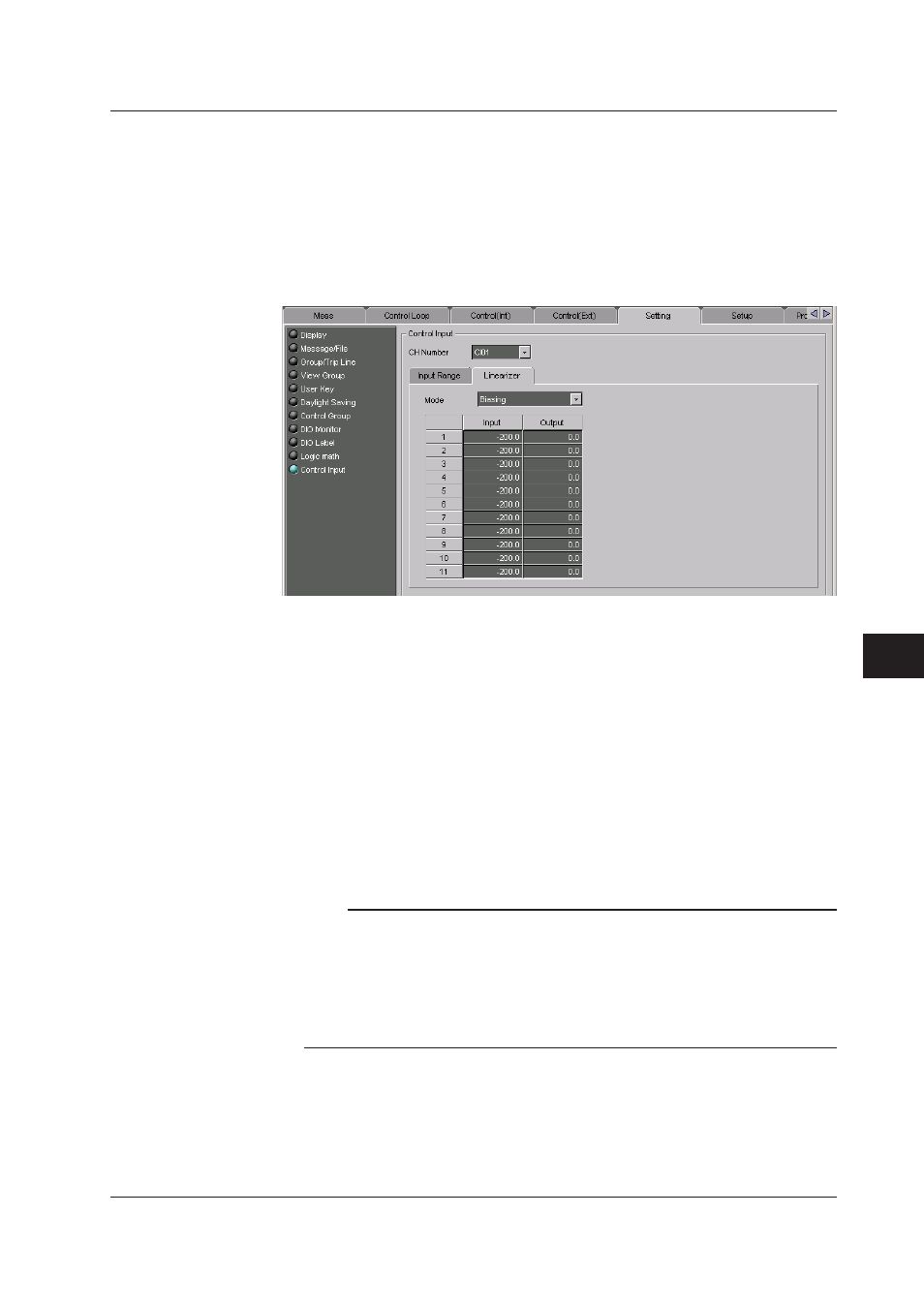

[Lnearzer] Tab
• Mode
Set the mode to [OFF], [Biasing], or [Approximation].
• Input
Set the linearizer input value. (The value varies depending on the mode.)
Biasing:
Set the value in EU (–5.0 to 105.0%) of the measurement span.
Approximation: Set the value in EU (–5.0 to 105.0%) of the measurement span.
You must set between 2 and 11 points total.
• Output
Set the linearizer output value. (The value varies depending on the mode.)
Biasing:
Set the value in EUS (–100.0 to 100.0) of the measurement span.
Approximation: Set the value in EU (–5.0 to 105.0%) of the measurement span.
Note
• For biasing, set the values so that input + output is EU (0 to 100%). In addition, set the
values so that input + output is greater than or equal to the previous input + output.
• Set the approximation output to be greater than or equal to the previous value.
• If a value smaller than the previous value is specified for the third point or later, the settings
after that point are invalid.
• When PV/SP math function is OFF, enter the settings above for each control loop in the
[Control Loop] tab. For the setting procedure, see page 6-22.
8.4 Control Functon General Settngs
