Group/Trp Lne

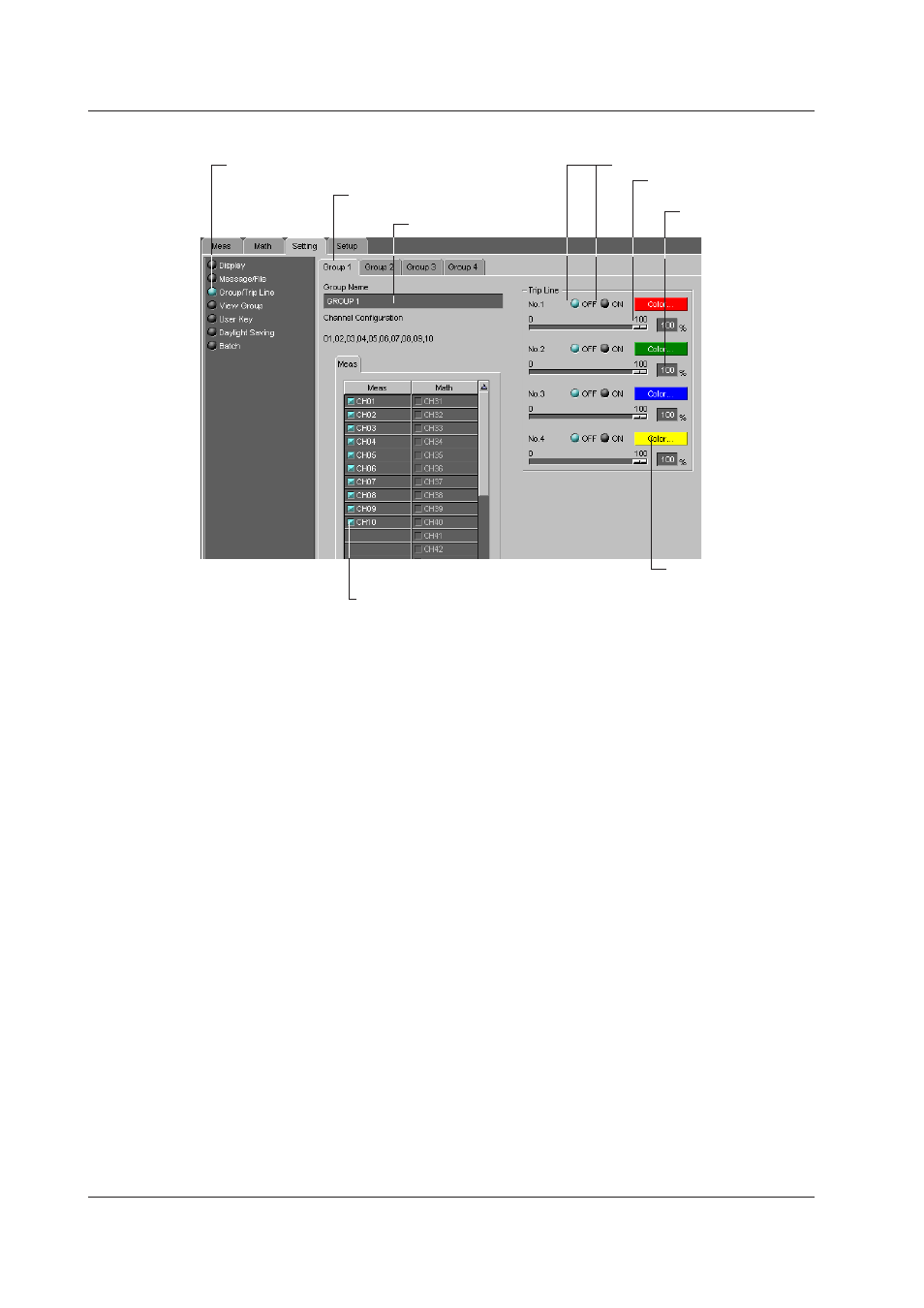

Click here (also selectable from
[Setting] - [SET [Regular] Setting])
Select the tab of the group
to be configured.
Check the channels that you wish to register in the selected group (blue: ON)
Select the color of
the trip line
Enter the group name
Set the trip line by dragging
Set the trip line by
entering a value
Turn ON/OFF the trip line display
Group name
Up to 16 characters can be entered for the group name.
Number of channels
The maximum number of channels that can be assigned to a group is 10 and 6 for
DX200/MV200 and DX100/MV100, respectively. The assigned channels are listed under
[Channel Configuration].
If no channels are specified, CH01 is automatically assigned.
Trp lne
Up to four trip lines can be set to one group.
With regard to the trip lines set here, the first and second settings (No.1 and No. 2) refer
to the trip lines in the Data Monitor and Data Viewer. If you change them here, they will
also change in the Data Monitor and Data Viewer.
