8-15
IM WX104-01E
1
2
3
4
5
6
7
8
9
Index
Conf
gur
ng the CX1000/CX2000

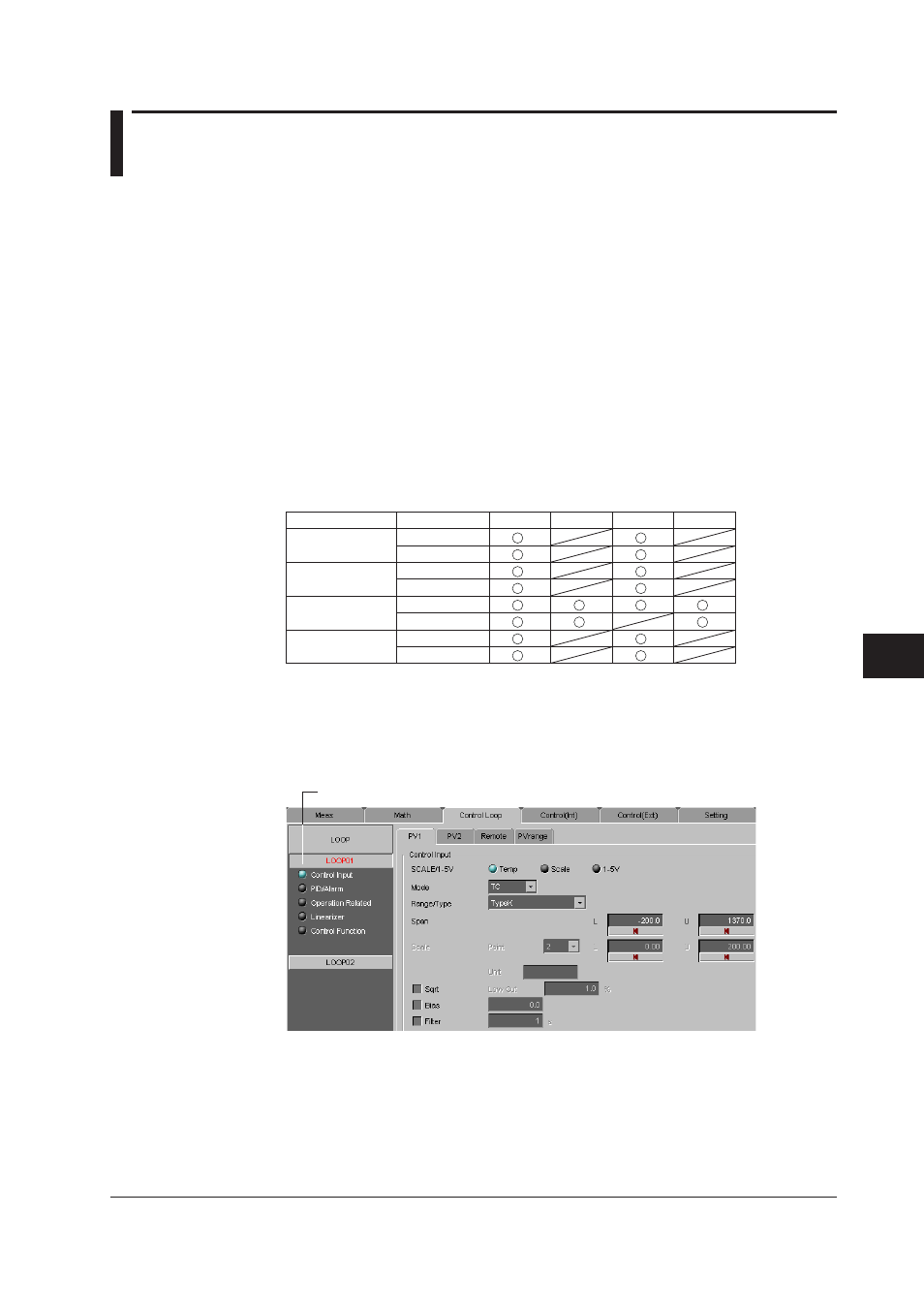

8.4
Control Functon General Settngs
Make settings for the internal loop control functions, using the [Control Loop] tab and
[Control Group] on the [Setting] tab. You can also enter these settings by choosing [Control
Setting] - [SETUP [Regular] Setting] - [Control Loop], or [Control Settings] - [SETUP
[Regular] Setting] - [Control Group].
On the [Control Loop] tab, click the button (LOOP01, LOOP02, ...) of each loop number
that you want to set, and then make the settings for that loop. The label of the selected
loop number button is red. Select each item (Control Input, PID/Alarm, Operation
Related, Linearizer, and Control Function) with the option buttons.
Control Input
The menu that appears varies depending on whether the PV/SP math function in Control
Action is ON/OFF.
When the PV/SP Math Functon Is OFF
The control input types that appear vary depending on the [Internal Loop] > [Control
Mode] setting under the [Setup] tab. The input types that you can select are [PV1], [PV2],
[Remote], and [PVrange]. They are displayed under the following conditions.
PV1
PV1
Remote
PVrange
Basc
Odd loops
Even loops
Cascade
Odd loops
Even loops
PVSwtchng
Odd loops
*
Even loops
Retransmsson
(Style 3 or later)
Odd loops
Even loops
* With 6 loops, and 6/4LOOP Select set to 6 loops.
Remote appears if the Setup tab's Internal Loop > Remote setting is set to Remote.
The settings displayed depend on the input type, [PV 1], [PV2], [Remote], and [PVrange],
but the settings are the same.
Select the loop number
SCALE/1-5V (PV1, PV2, Remote)
Select the channel measurement mode from [Temp], [Scale], or [1-5V].
