3-6
IM WX104-01E
Dsplay color
You can select the color of each waveform. To create custom colors, click the [Define
Custom Colors] button in the [Color] dialog box.
Copy/Paste
The parameters that are checked in the [Copy Setting] dialog box, that opens when the
[Copy Setting] button is clicked, are copied.
When the [Copy] button is clicked, the settings of the waveform corresponding to the
waveform No. that was activated (displayed in red) are copied. When the [Paste] button
is clicked, the settings are copied to the waveform corresponding to the waveform No.
that was activated.

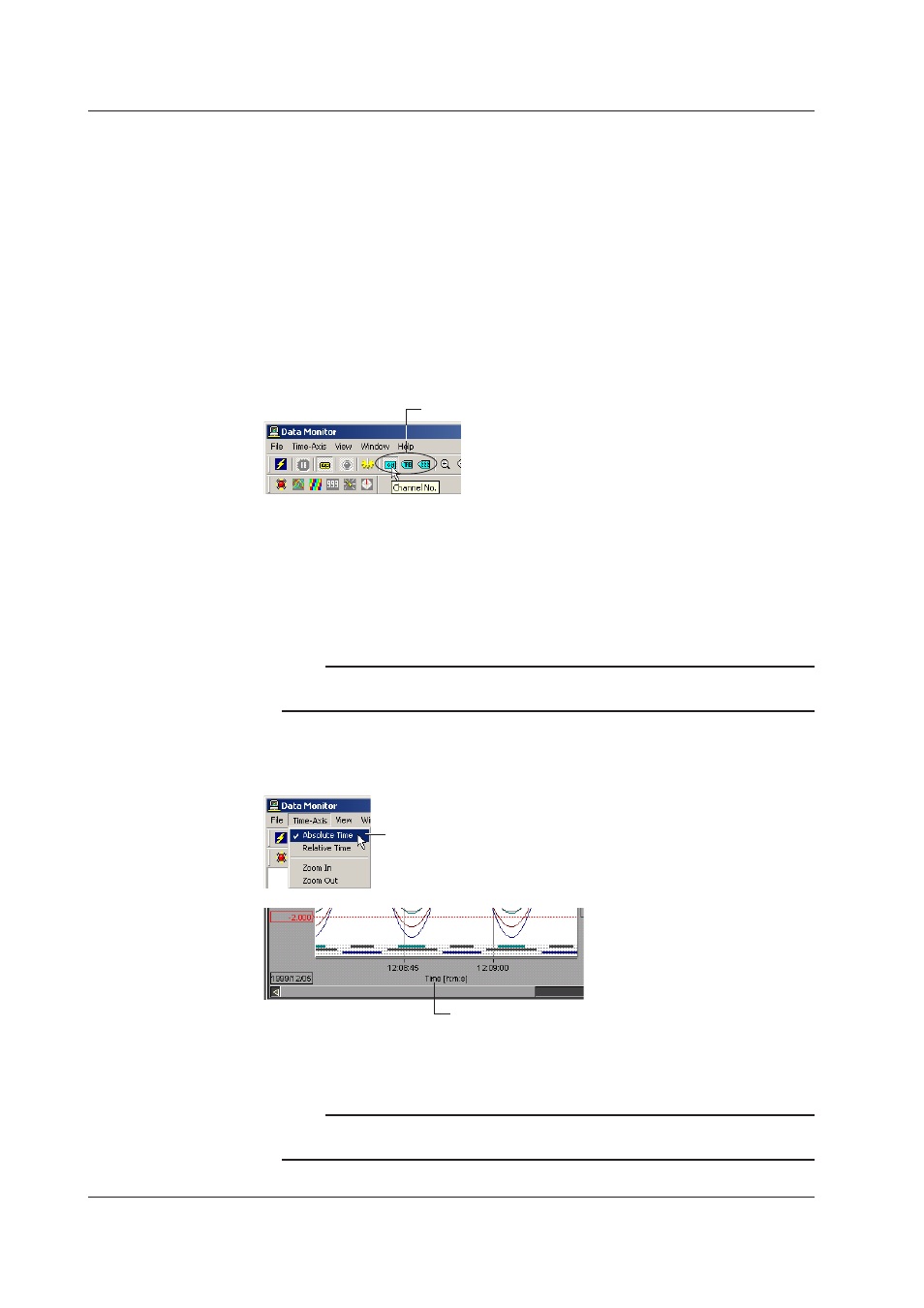

Selectng the Characters Used to Identfy Channels
Click one ([View] - [Channel No.]/[Tag No.]/[Tag Comment])
Select the character string used to identify the channel from channel No., tag No.,
and tag comment. The selected character string will be used as a label to indicate the
waveform name.
The string can be registered on the RECORDER directly or by using the Configurator.
If [Tag No.] is selected the first sixteen characters of the registered character string are
used. If [Tag Comment] is selected all the characters are used.
Note
When the identification string is switched, the channel character string displayed on each
monitor, [Cursor Value] window, and [General Display Setting] window will change accordingly.
Settng the Tme Axs
Selectng absolute or relatve tme dsplay
1. Select [Time Axis] - [Absolute Time] or
[Relative Time] from the menu bar.
2. The specified time axis is displayed.
Absolute Time: Displays the time.
Relative Time:
Displays the relative time from the first data point.
Note
The time information display of the cursor’s value display is set to the specified setting (absolute
or relative).
3.2 Dsplayng the Trend
