Timer Modes
10-23
Timer_A

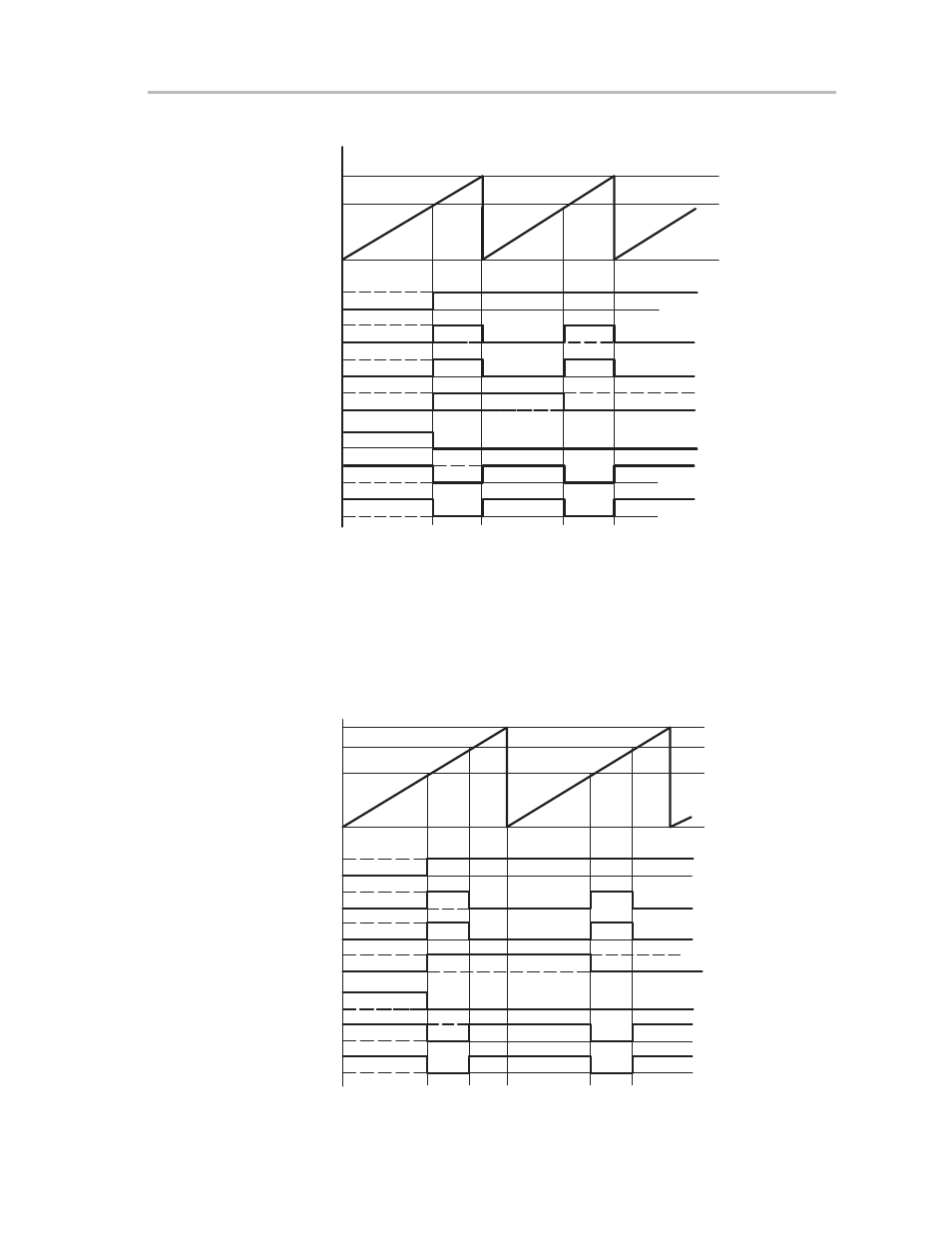

Figure 10–24. Output Examples—Timer in Up Mode
Example, EQU1 Used
0FFFFh
CCR0
CCR1
0h
EQU0 EQU1 EQU0 EQU1 EQU0
Output Mode 1: Set
Output Mode 2: PWM Toggle/Reset
Output Mode 3: PWM Set/Reset
Output Mode 4: Toggle
Output Mode 5: Reset
Output Mode 6: PWM Toggle/Set
Output Mode 7: PWM Reset/Set
Interrupt Events
10.5.3.2 Output Examples—Timer in Continuous Mode
The OUTx signal is changed when the timer reaches the CCRx and CCR0
values, depending on the output mode, as shown in Figure 10–25.
Figure 10–25. Output Examples—Timer in Continuous Mode
0FFFFh
CCR0
CCR1
0h
TAOV EQU1 EQU0 EQU1 EQU0
Output Mode 1: Set
Output Mode 2: PWM Toggle/Reset
Output Mode 3: PWM Set/Reset
Output Mode 4: Toggle
Output Mode 5: Reset
Output Mode 6: PWM Toggle/Set
Output Mode 7: PWM Reset/Set
TAOV Interrupt Events
