Rockwell Automation 8520 9/Series CNC Lathe - Manual (Page 553)

Single-Pass Turning Cycles
Chapter 22
22-13
After this G24 block is executed, the control re-executes the cycle for any
following block that contains an axis word (until the cycle is cancelled).
The value of this axis word is used to replace the parameter determined
with that axis word in the original G24 block and the cycle is re-executed
using these new parameters.
Example 22.4
Tapered Face Cutting
G90G00X43.Z55.;
G24X10.Z50.K-10.F10.;
Z45.;
Z40.;
G00;

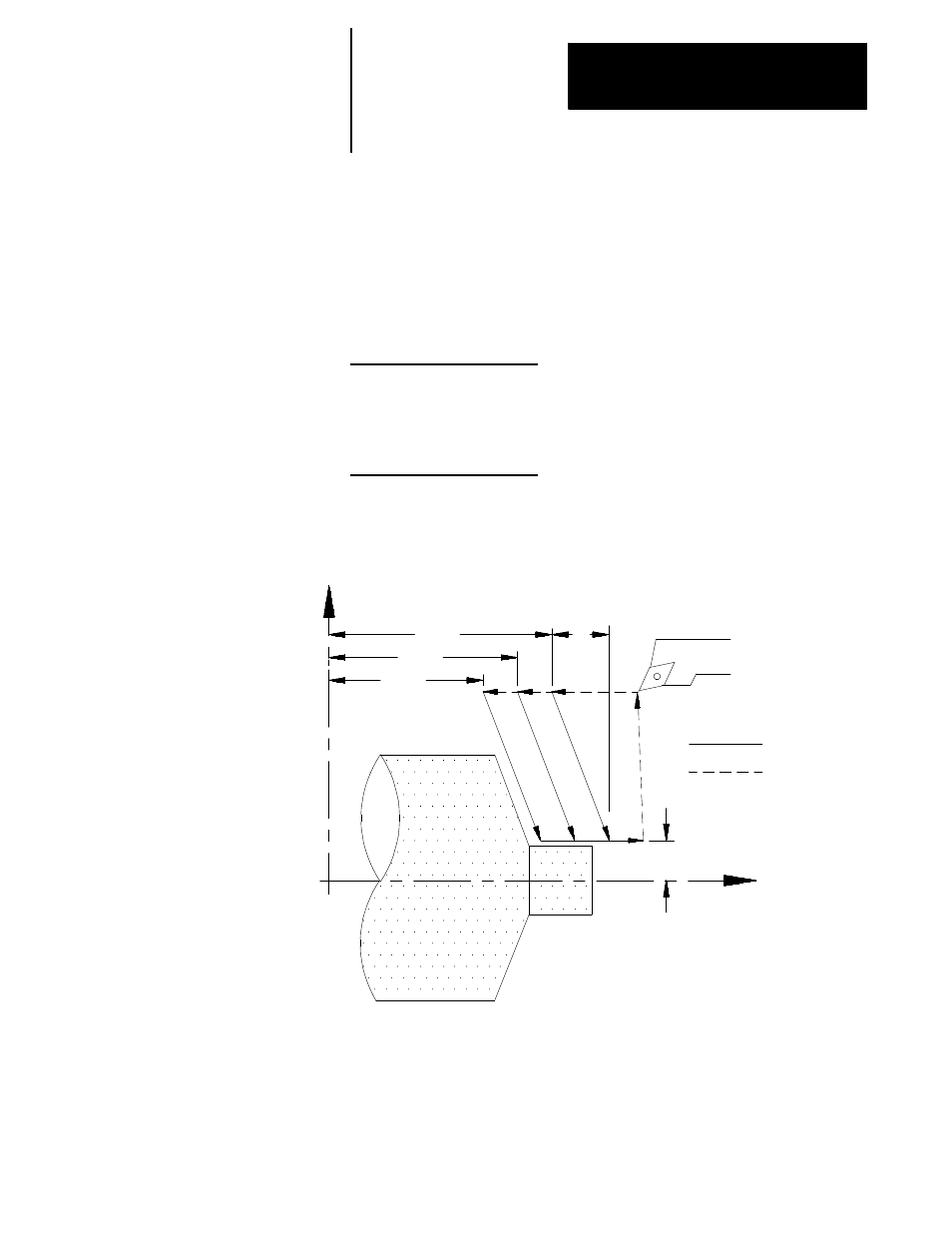

Figure 22.10
Results of Example 22.4
X
40
35
30
10
10
Z
Cutting feed
Rapid feed
END OF CHAPTER
