Coordinate System Offsets
Chapter 11
11-16
Example 11.6
Changing Work Coordinate Systems With Offset Active
Program Comment
N1 G10L2P1X0Z0; Define G54 work coordinate system zero point to be
positioned X0, Z0 away from the machine
coordinate system
N2 G10L2P2X20.Z25.; Define G55 work coordinate system zero point to be
positioned X20, Z25 away from the machine
coordinate system
N3 G55X10.Z5.;
Move to X10, Z5 in the G55 work coordinate system
N4 G54X10.Z5.; Move to X10, Z5 in the G54 work coordinate system
N5 G92X-5.Z-5.; Offset current tool position to be at X-5, Z-5
N6 X15.Z0.; Move to X15, Z0 (offset still active)
N7 G55X10.Z5.; Move back to X10, Z5 in the G55 work coordinate
system with the G92 offset still active

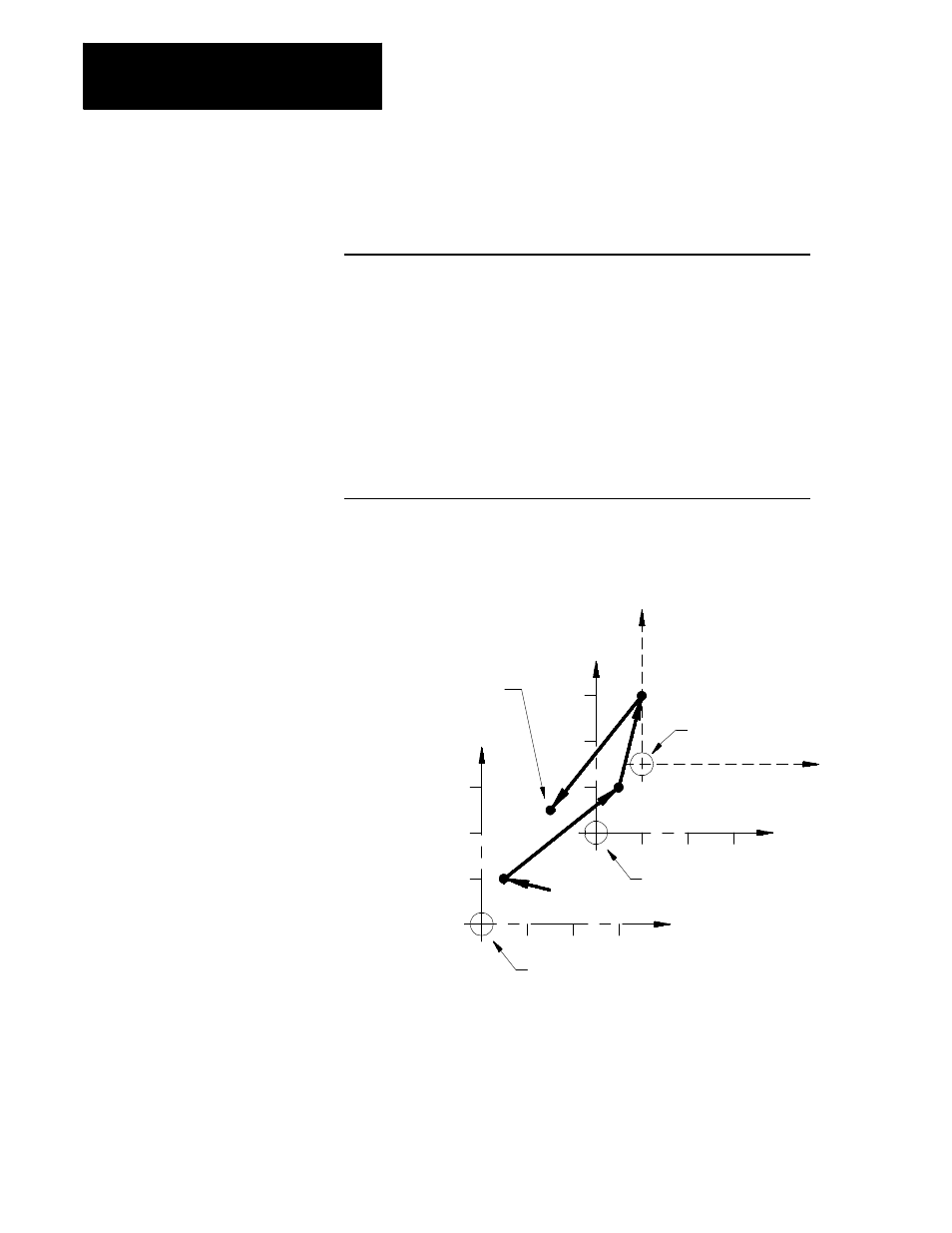

Figure 11.11
Results of Example 12.6
Zero point for the G54
work coordinate system
N3
Zero point for the G55
work coordinate system
New zero point established
by the G92 block
N6
N7
Final move to Y10, X5
after G92 offset was
activated in previous
work coordinate system
N4
Y
Y
Y
X
X
X
10 20 30
10 20 30
30
30
20
10
In Figure 11.11, the offset entered for the G54 work coordinate system has
also shifted the G55 coordinate system. Any offsets described in this
section alter all of the work coordinate system (G54 - G59) at the same
time.
