Chapter 5
Ladder Program Basics
5–13

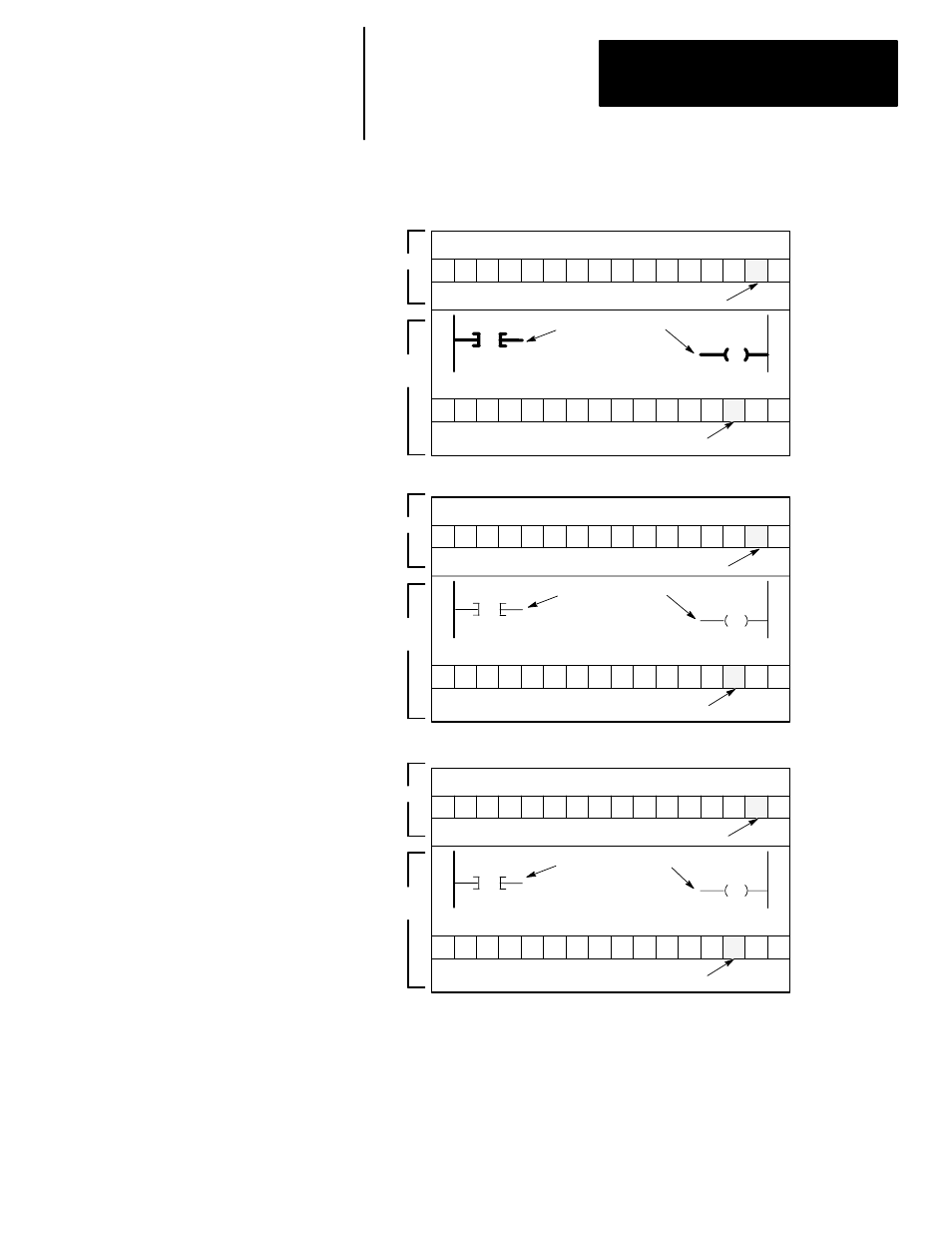

When the Input Goes False
0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
2
O:0.0
1
Input Data File
O:0
I:0
Output Data File
Ladder Program
Instructions intensified
Output Bit Energized
Input Bit Energized
Scan before input goes false (scan 1999).
I:0.0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
2
O:0.0
1
Input Data File
Ladder Program
Output Data File
O:0
I:0
Output Bit Energized
Input Bit De–energized
Instructions are normal
intensity.
First scan after input goes false (scan 2000).
I:0.0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
2
O:0.0
Input Data File
Ladder Program
Output Data File
O:0
I:0
Output Bit De–energized
Input Bit De–energized
Instructions are normal
intensity
Second scan after input goes false (scan 2001).
1
I:0.0
Input Scan
Program
Scan
Input Scan
Program
Scan
Input Scan
Program
Scan
