Chapter 4
Data File Organization and Addressing
4–8
Data File 3 – Bit
File 3 is the bit file, used primarily for bit (relay logic) instructions, shift
registers, and sequencers. The maximum size of the file is 256 1-word
elements, a total of 4096 bits. You can address bits by specifying the element
number (0 to 255) and the bit number (0 to 15) within the element. You can
also address bits by numbering them in sequence, 0 to 4095.
You can also address elements of this file.

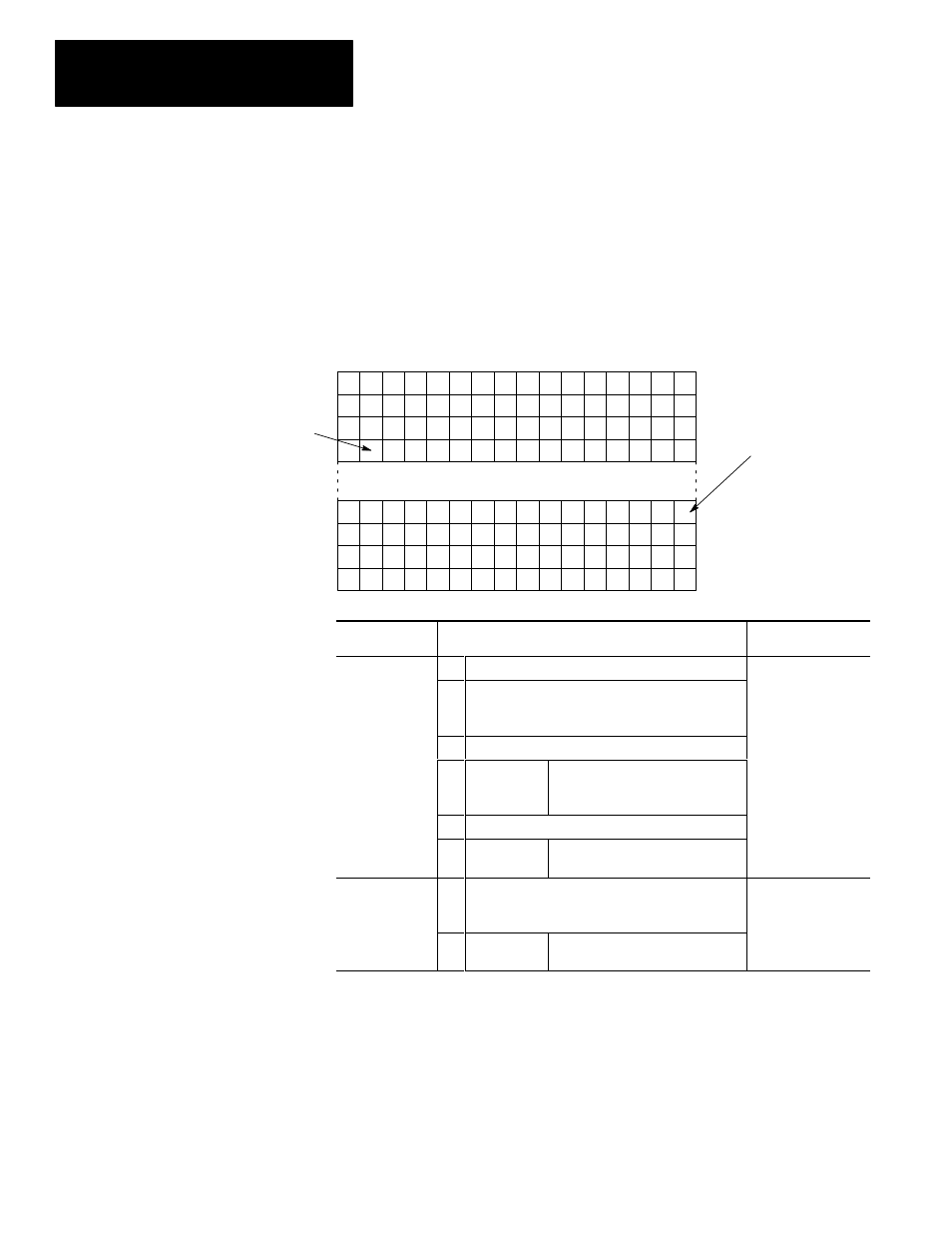

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
B3:0
B3:1
B3:2
B3:3
B3:252
B3:253
B3:254
B3:255
Bit 14, Element 3
Address B3:3/14.
Can also be
expressed as bit 62.
Address B3/62.
Bit 0, Element 252
Address B3:252/0.
Can also be
expressed as bit
4032. Address
B3/4032.
Element
Format Explanation Examples
B Bit type file
Bf:e/b f
File number. Number 3 is the default file. A file
number between 10 – 255 can be used if additional
storage is required.
B3:3/14
Bit 14, element 3
: Element delimiter
e
Element
number
Ranges from 0 to 255. These are
1-word elements. 16 bits per
element.
B3:252/0
Bit 0, element 252
/ Bit delimiter
b Bit number
Bit location within the element.
Ranges from 0 to 15. B3:9
Bits 0–15, element 9
Bf/b
B
f
/
Same as above.
Same as above.
Same as above.
B3/62
Bit 62
b Bit number
Numerical position of the bit within
the file. Ranges from 0 to 4095. B3/4032
Bit 4032
Your programming device may display addresses slightly different than what
you entered on the HHT.
The HHT and APS always display the Bf/b format in XIO, XIC, and OTE
instructions.
