Chapter 7
Creating and Editing a Program File
7–29
Deleting an Instruction

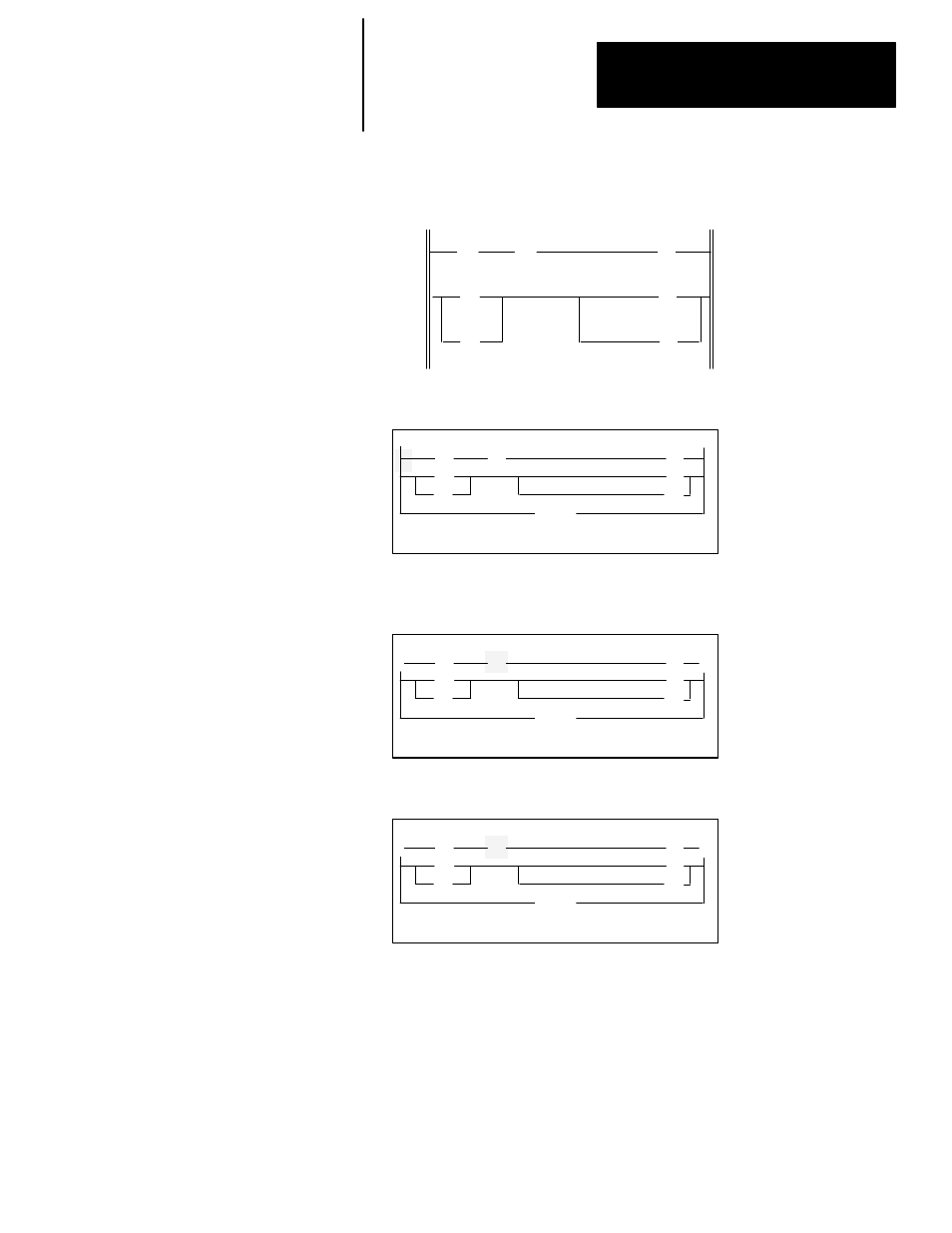

Modify your program to appear as follows:
] [
I:1.0
0
( )
O:3.0
0
] [
I:1.0
0
( )
O:3.0
1
] [
I:1.0
1
( )
O:3.0
2
] [
I:1.0
1
1. From the previous save and continue display, press [ENTER] for the main
editing display menu:
F1 F2 F3 F4 F5
2.0.0.0.*
] [ ( )
] [
] [ ( )
<
END
>
]/[
OFL
( )
> INS_RNG MOD_RNG SEARCH DEL_RNG UND_RNG
2. Press the [
→
] key twice to place the cursor on the instruction to be
deleted. Then press [F2] , MOD_RNG. The following display appears:
I I
F1 F2 F3 F4 F5
2.0.0.0.2
] [ ( )
] [
] [ ( )
<
END
>
]/[
OFL
( )
> INS_RNG BRANCH MOD_INST ACP_RNG
XIO:I1:1.0/1 NO FORCE
3. Press [ENTER] to display additional menu functions:
I I
F1 F2 F3 F4 F5
2.0.0.0.2
] [ ( )
] [
] [ ( )
<
END
>
]/[
OFL
( )
> DEL_INST UND_INST
XIO:I1:1.0/1 NO FORCE
4. Press [F2] , DEL_INST, then, [F2] , YES to confirm the deletion.
5. Press [ENTER] , then [F5] , ACP_RNG. The instruction is removed and
placed in a delete buffer. This instruction remains in the delete buffer
until another instruction is deleted to replace it.
