Instructions
Chapter 23
Bit Shift, FIFO, and LIFO
23–2

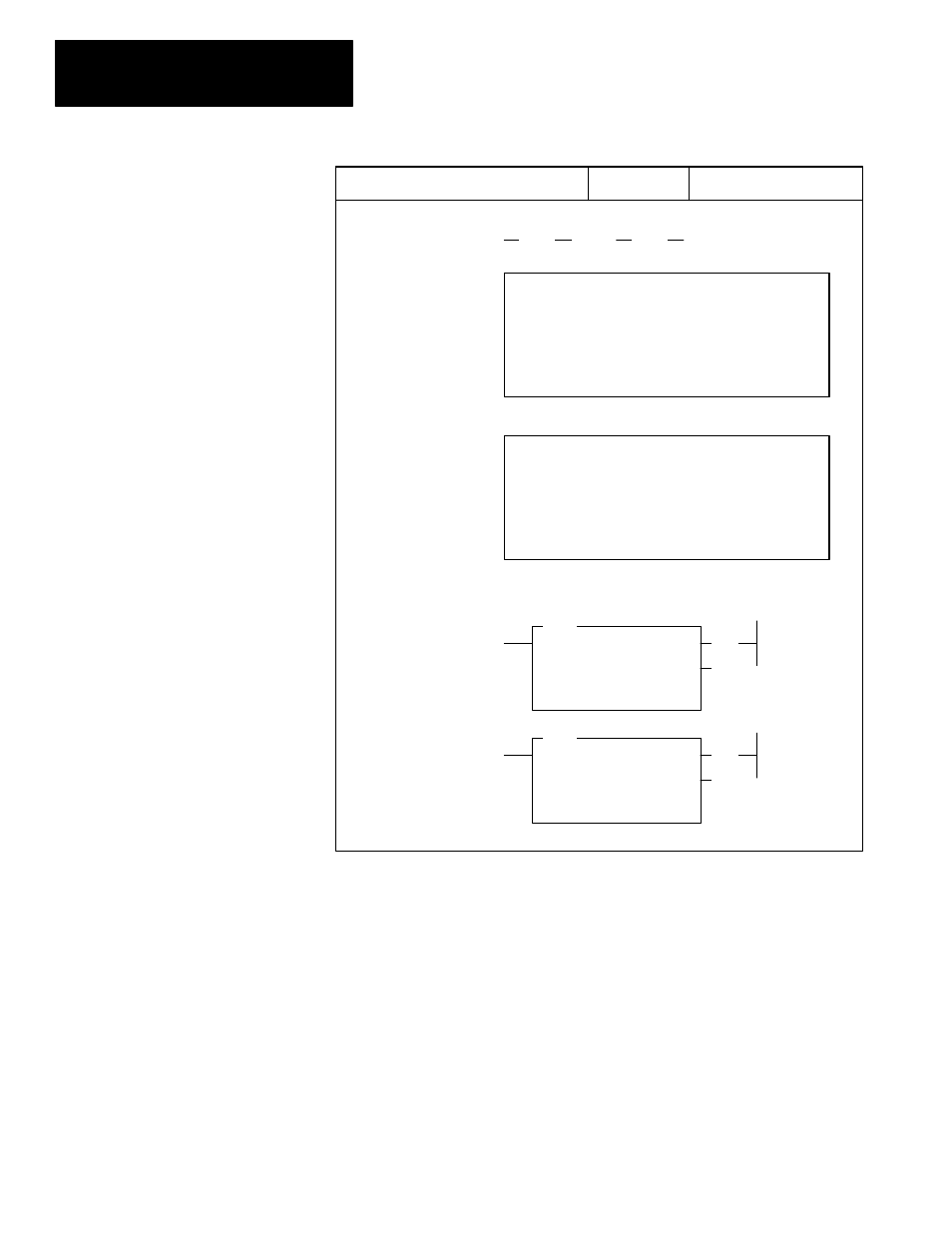

Bit Shift Left, Bit Shift Right BSL, BSR Output Instructions
(BSL) (BSR)
(EN)
(DN)
BSL
BIT SHIFT LEFT
File
#B3:1
Control R6:0
Bit Address I:1.0/0
Length 50
F1 F2 F3 F4 F5
ZOOM on BSL –(BSL)– 2.3.0.0.1
NAME: BIT SHIFT LEFT
FILE: #B3:1 LENGTH: 50
CONTROL: R6:0
BIT ADDR: I1:1.0/0
EN DN ER UL
0 0 0 0
EDT_DAT
HHT Ladder Display:
HHT Zoom Display:
Ladder Diagrams and APS Displays:
(online monitor mode)
F1 F2 F3 F4 F5
ZOOM on BSR –(BSR)– 2.3.0.0.1
NAME: BIT SHIFT RIGHT
FILE: #B3:1 LENGTH: 50
CONTROL: R6:0
BIT ADDR: I1:1.0/0
EN DN ER UL
0 0 0 0
EDT_DAT
(EN)
(DN)
BSR
BIT SHIFT RIGHT
File
#B3:1
Control R6:0
Bit Address I:1.0/0
Length 50
Bit Shift Left (BSL), Bit
Shift Right (BSR)
