Chapter 7
Creating and Editing a Program File
7–25

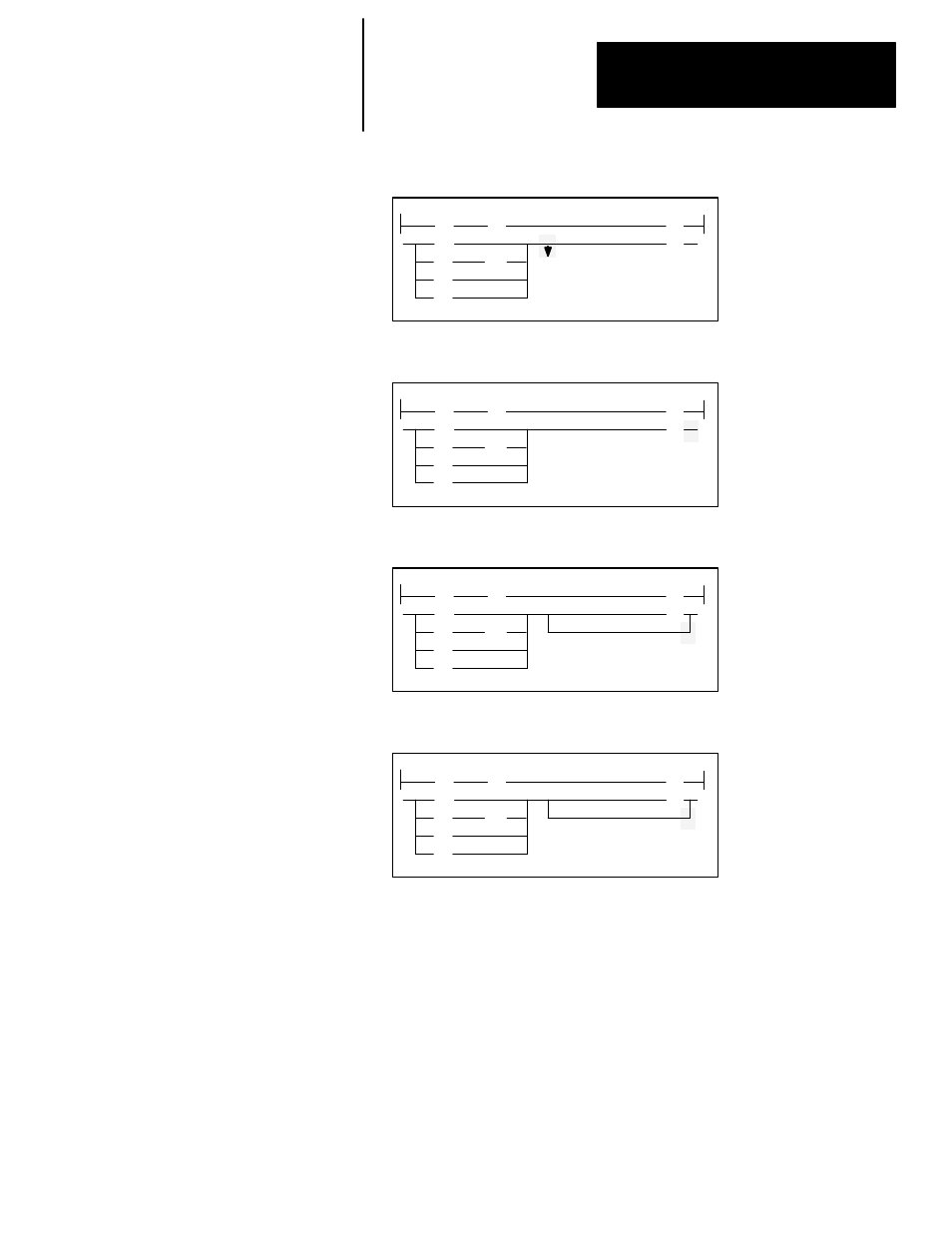

4. Press [F3], APP_BR. The following display appears:
I I
I I
I
I I
I
F1 F2 F3 F4 F5
2.1.1.0.*
] [ ( )
] [
] [ ( )
] [
] [
]/[
] [
OFL SELECT BRANCH TARGET, PRESS ENTER
5. Press the [
→
] key once to place the cursor to the right of the output.
I
I I
I I
I
I I
F1 F2 F3 F4 F5
2.1.1.0.6
] [ ( )
] [
] [ ( )
] [
] [
]/[
] [
OFL SELECT BRANCH TARGET, PRESS ENTER
6. Press [ENTER] . The branch is placed around the output:
I I
I
I I
I I
I
F1 F2 F3 F4 F5
2.1.1.1.*
] [ ( )
] [
] [ ( )
] [
] [
]/[
] [
OFL
EXT_UP EXT_DWN APP_BR DEL_BR INS_BR
7. Press [ESC] to return to the editing menu display:
I I
I
I I
I I
I
F1 F2 F3 F4 F5
2.1.1.1.*
] [ ( )
] [
] [ ( )
] [
] [
]/[
] [
OFL
> INS_INST BRANCH MOD_INST ACP_RNG
