Chapter 13
The Force Function
13–4

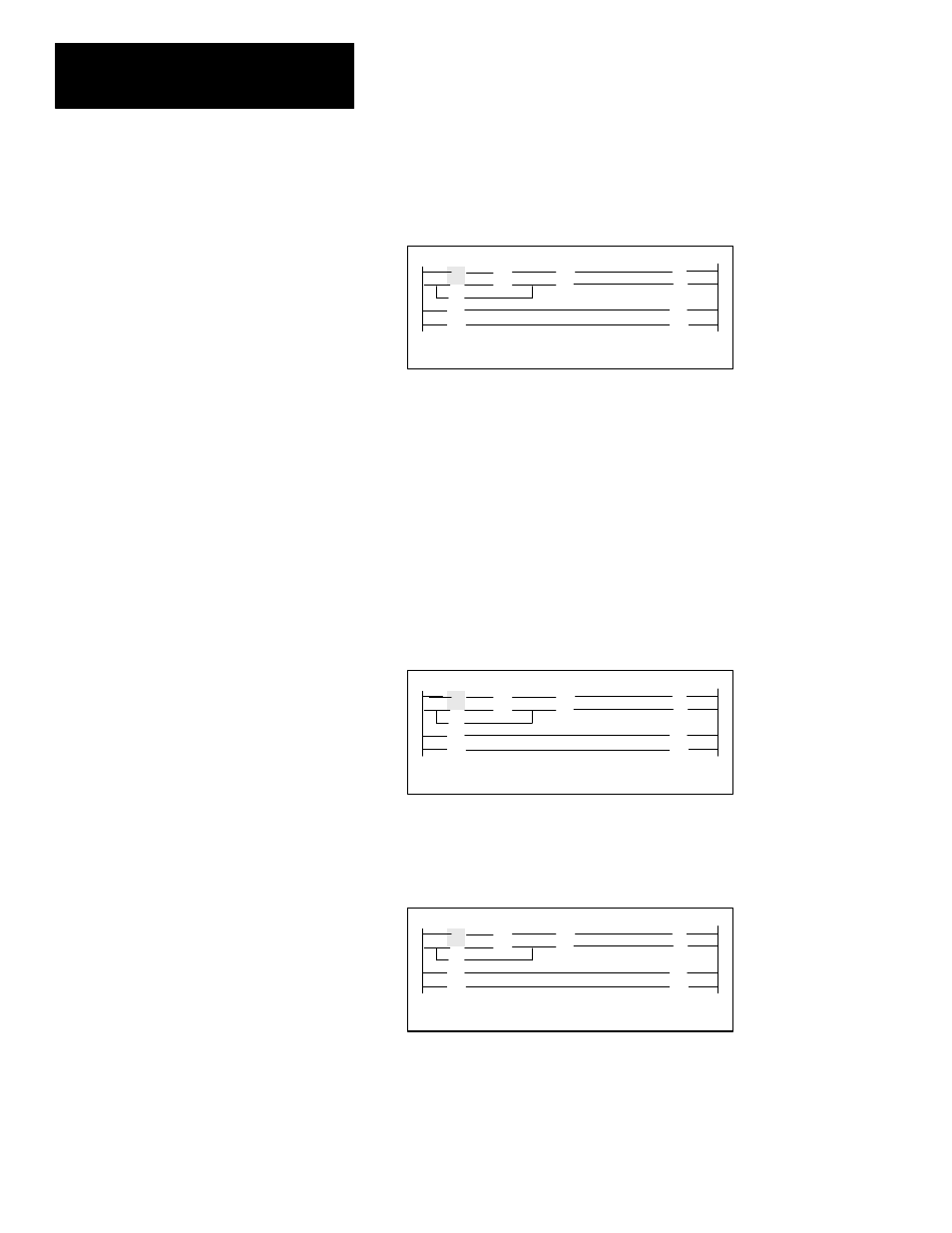

4. To verify enabling of forces, press [ F2 ]. The force is enabled. The letter
F on the prompt line is now on continuously. Also, the FORCED I/O
LED of the processor is on continuously.
ON OFF REM REM_ALL DISABLE
] [
F RUN
F1 F2 F3 F4 F5
XIC: I1:0.0/1 FORCE ON 2.0.0.0.1
( )
( )
]/[ ] [
]/[ ] [
]/[
( )
( )
] [
] [
] [
Rungs 1, 2, and 3 have gone true, as indicated by highlighted (bold)
instructions in the display. Note that the output 0 LED of the controller is
on.
To Close and Open an External Circuit
To simulate closing, opening, closing, and opening of an external circuit (as
by pressing and releasing a push button twice), you must force the input off,
then on, then off:
1. Press [ F2 ], OFF. Rungs 1 and 3 remain true.
ON OFF REM REM_ALL DISABLE
] [
F RUN
F1 F2 F3 F4 F5
XIC: I1:0.0/1 FORCE OFF 2.0.0.0.1
( )
( )
]/[ ] [
]/[ ] [
]/[
( )
( )
] [
] [
] [
2. Press [ F1 ], ON. Rungs 1 and 3 are now false and rung 2 is true. The
output 0 LED of the controller is no longer on.
ON OFF REM REM_ALL DISABLE
] [
F RUN
F1 F2 F3 F4 F5
XIC: I1:0.0/1 FORCE ON 2.0.0.0.1
( )
( )
]/[ ] [
]/[ ] [
]/[
( )
( )
] [
] [
] [
