Chapter 1
Features, Installation, Powerup
1–6

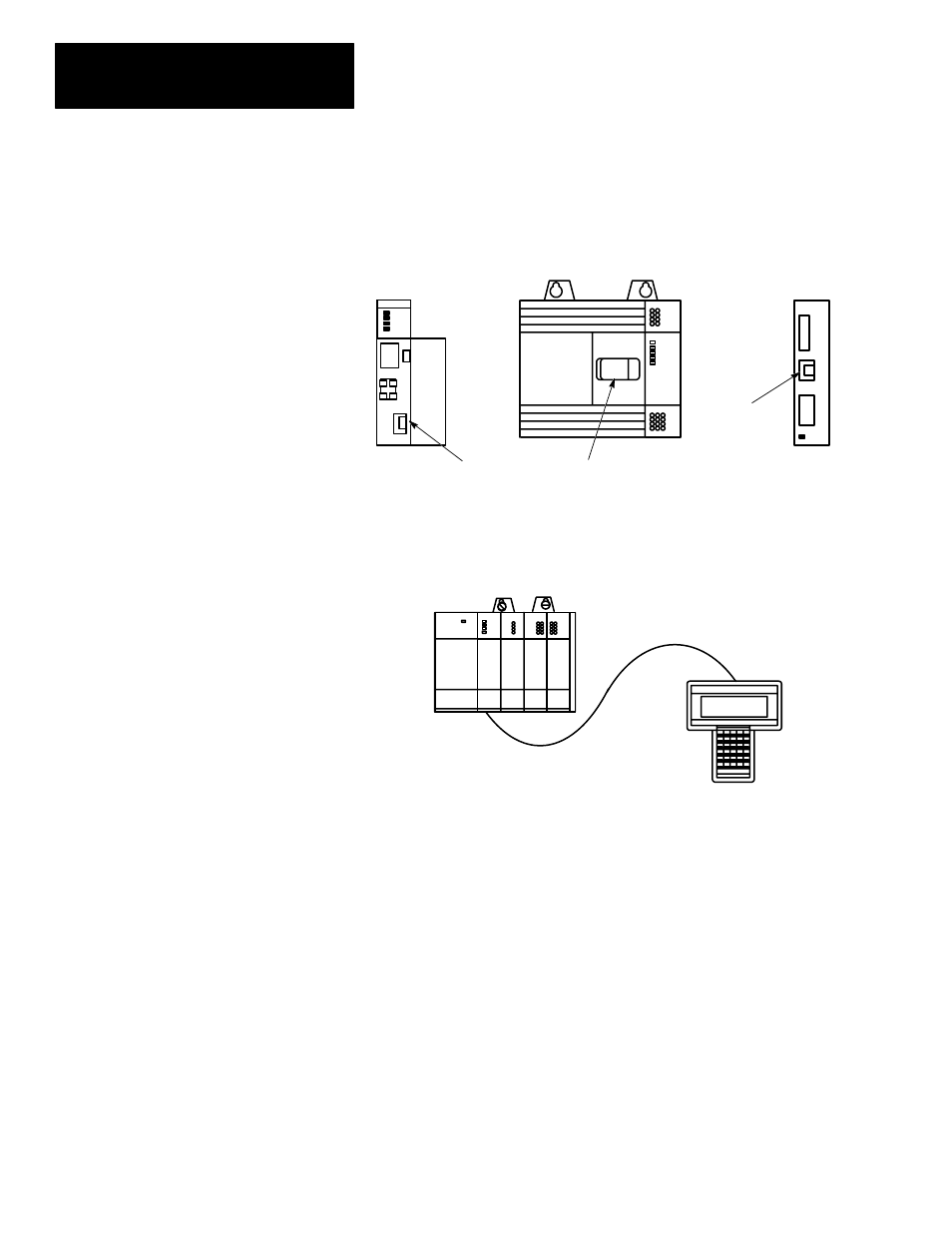

3. Locate the communication port on the SLC 500 controller, or peripheral
port on the 1747–AIC Link Coupler. The figure below shows where it is
located on the different devices:
Processor Module
(Modular Controller)
SLC 500 Fixed Controller
(Communication Port)
(Peripheral Port)
Isolated Link
Coupler
(Cover Open)
The connectors are keyed. Connect one end of the 1747–C10
communication cable to the top of the HHT. The other connector plugs
into the communication port on the SLC 500 controllers or the peripheral
port on the 1747–AIC.
SLC Controller
(Modular)
1747–C10 Cable
HHT
If you are using a 1747–NP1 wall mount power supply or a 1747–NP2
desktop power supply, plug the communication cable connector into the
socket provided.
