Chapter 2
The Menu Tree
2–4
UTILITY, [F5]
Allows you to:
•
attach online to a processor
– upload and download programs between the processor and HHT
– change processor mode
– transfer processor memory between RAM and EEPROM
– force inputs and outputs
•
access network diagnostic functions
•
create or delete processor passwords
•
clear processor memory
•
monitor the ladder diagram while the processor is in Run mode

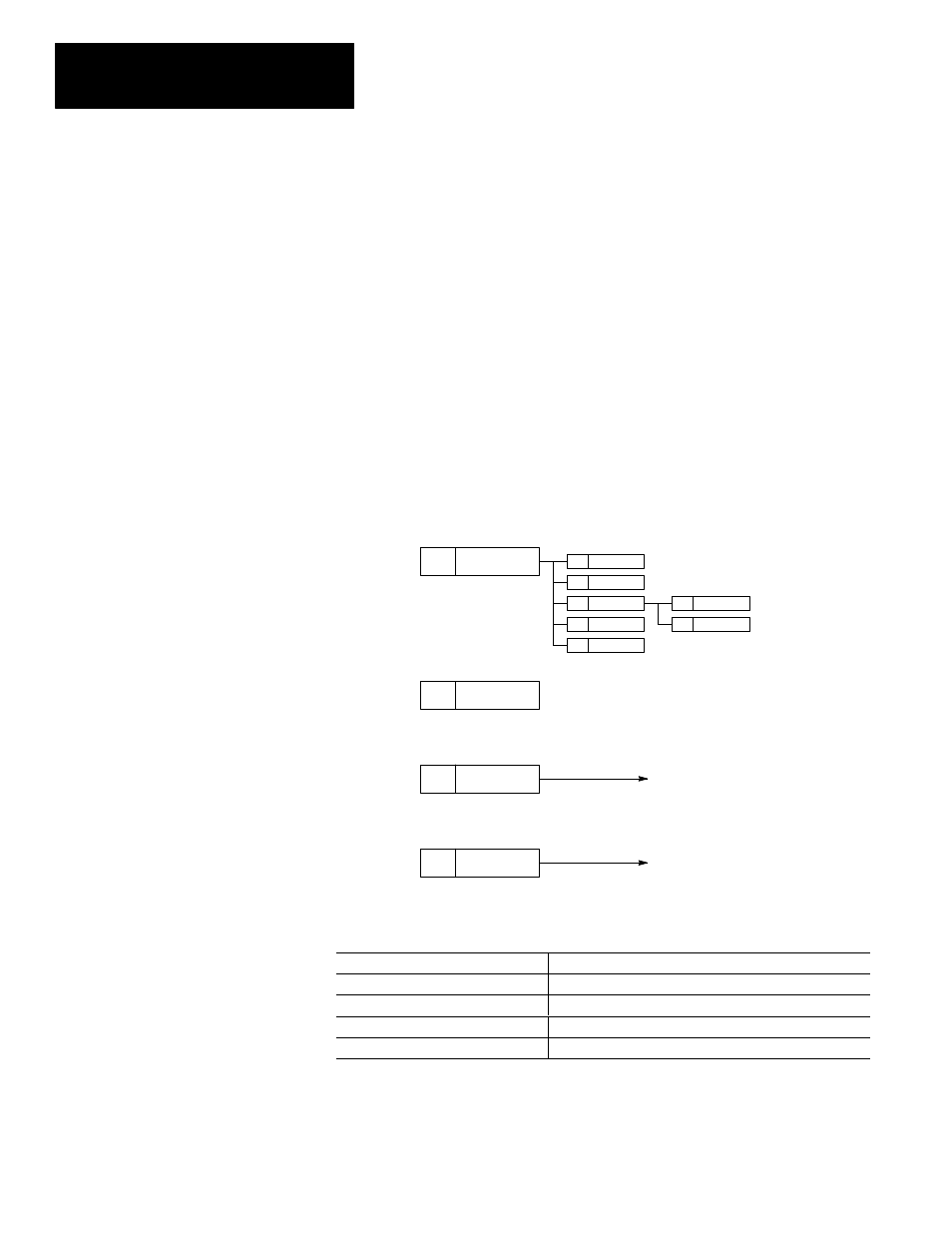

The figures that follow, graphically guide you through the HHT menus and
sub–menus.
DISPLAY F1
KEYPAD F2
RAM F3
ROM F4
WTCHDOG F5
DSTRUCT F2
NONDEST F4
Main Menu
Refer to page 2–6.
Refer to page 2–7 to 2–10.
F1 SELFTEST
F2 TERM
F3 PROGMAINT
F5 UTILITY
Main Menu Function Key Use For
SELFTEST HHT unit diagnostics
TERM terminal mode for IMC 110
PROGMAINT program development and editing
UTILITY processor/network communications and online monitoring
The Menu Tree
