Configuring Online Communication
This chapter describes online communication between the HHT and SLC 500
processors. Topics include:
•
online configuration
•
the Who function
As described in chapter 1, the HHT may be connected directly to a port
located on an SLC 500 processor or it may be connected to any fixed, SLC
5/01, or SLC 5/02 processor that is active on a DH–485 network.
Important: The HHT is not compatible with the SLC 5/03 processor.

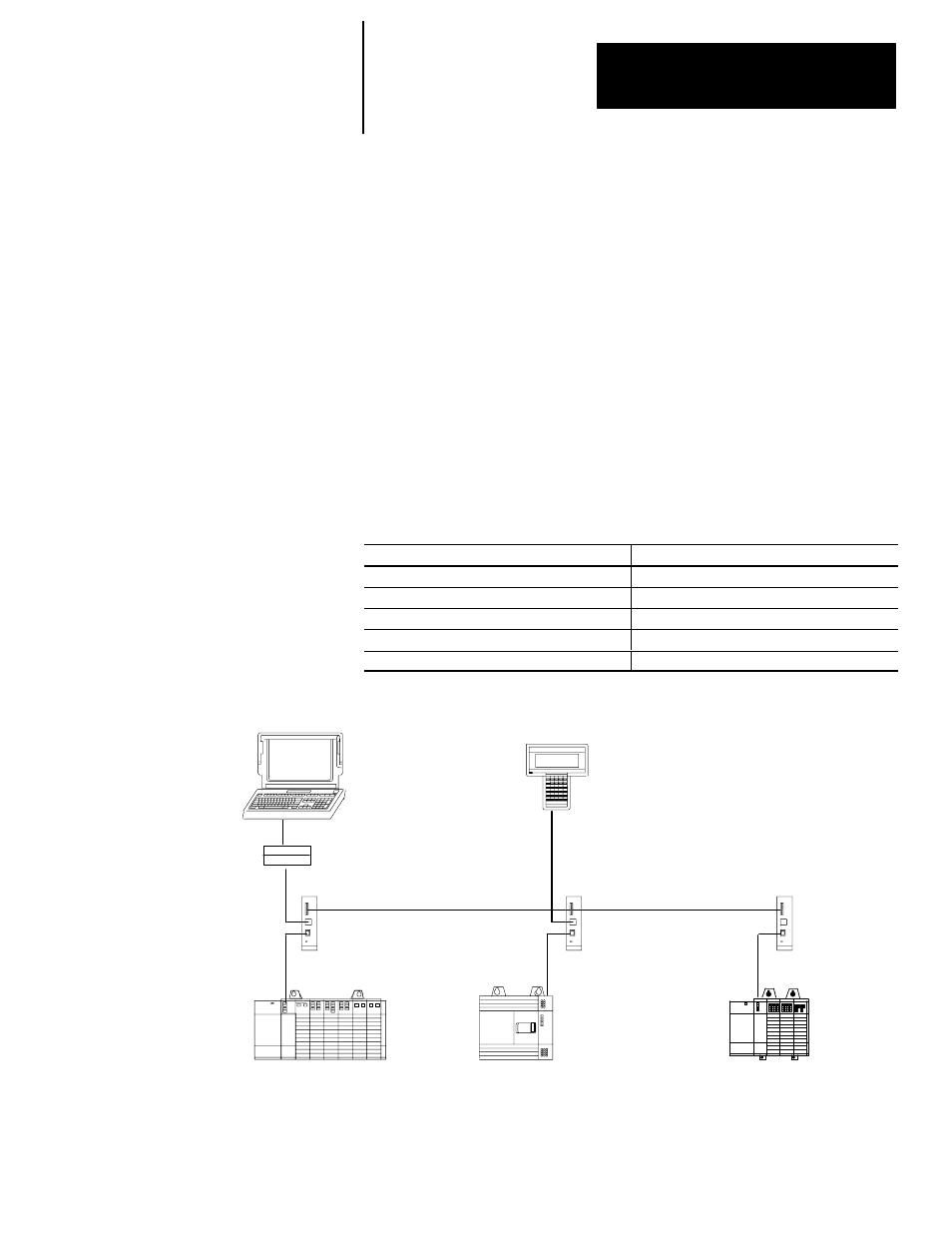

For the examples in this section, the DH–485 network is configured as
follows:
Node Address
Network Device
0
APS Terminal
1
Hand–Held Terminal
2
SLC 5/02 Processor
3
SLC 500 Processor
4
SLC 5/01 Processor
Allen–Bradley 1784–T45, T47
or Compatible Laptop
SLC 500 20
I/O Fixed Controller
SLC 500 5/02
Modular I/O Controller
1747–AIC Isolated
1747–PIC
Interface Converter
Link Coupler
1747–AIC Isolated
Link Coupler
1747–AIC Isolated
Link Coupler
SLC 500
Hand–Held Terminal
SLC 500 5/01
Modular I/O Controller
Node 2
Node 0
Node 1
Node 4
Node 3
Online Configuration
