Minimizing the Scan Time
You can keep the processor scan time to a minimum by economizing on the
use of instructions addressing the M0 or M1 files. For example, XIC
instruction M0:2.1/1 is used in rungs 1 and 2 of figure 1 below, adding
approximately 2 ms to the scan time if you are using a Series B processor. In
the equivalent rungs of figure 2, XIC instruction M0:2.1/1 is used only in
rung 1, reducing the scan time by approximately 1 ms.

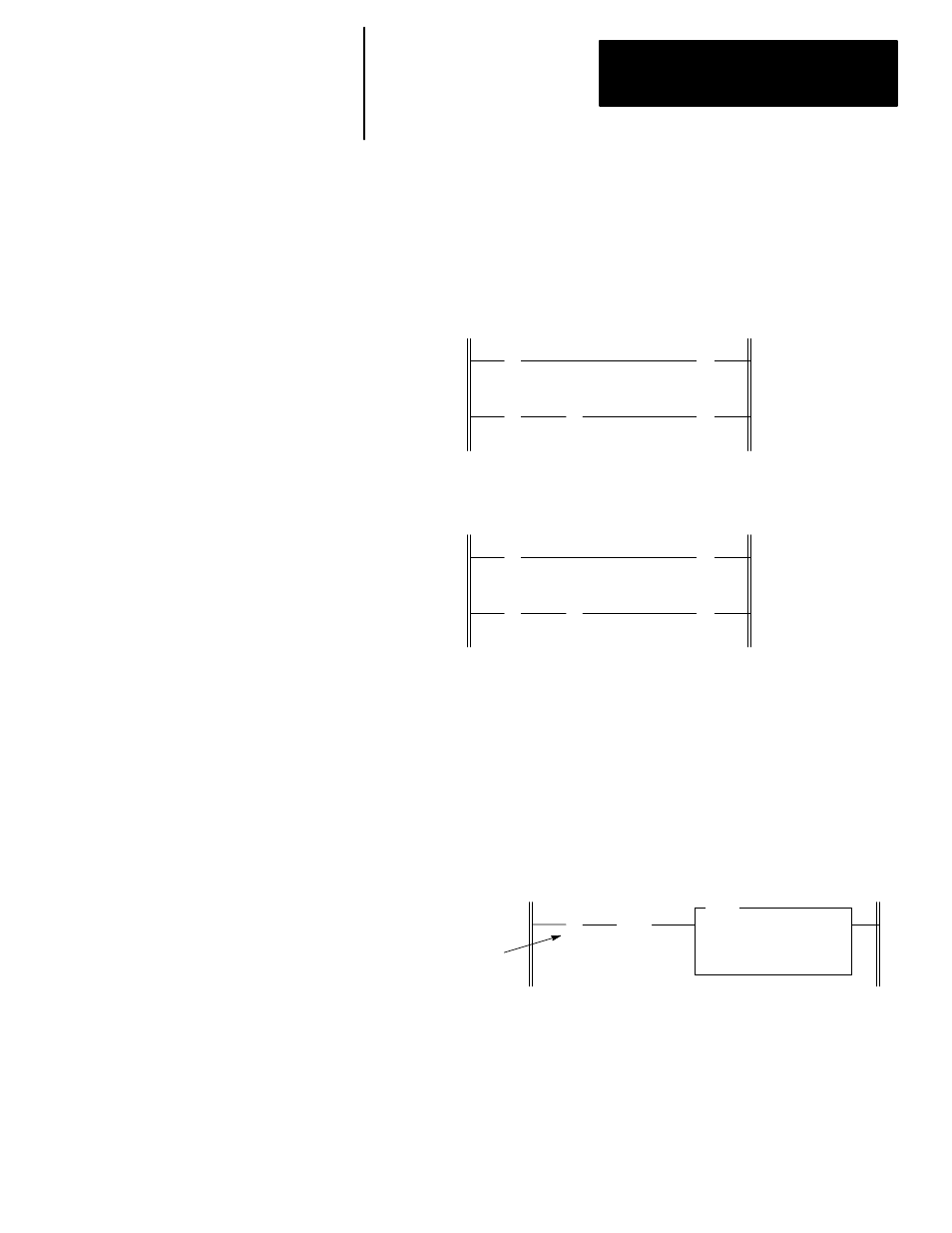

Figure 1. XIC instructions in rungs 1 and 2 are addressed to the M0 data file.
Each of these instructions adds approximately 1 ms to the scan time (Series
B processor).
Figure 2. These rungs provide equivalent operation to those of figure A by
substituting XIC instruction B3/10 for XIC instruction M0:2.1/1 in rung 2. Scan
time is reduced by approximately 1 ms (Series B processor).
1
] [
B3
12
] [
M0:2.1
1
( )
B3
14
] [
M0:2.1
1
( )
B3
10
2
] [
B3
12
] [
B3
10
( )
B3
14
] [
M0:2.1
1
( )
B3
10
1
2
The following figure illustrates another economizing technique. The COP
instruction addresses an M1 file, adding approximately 4.29 ms to the scan
time if you are using a Series B processor. Scan time economy is realized by
making this rung true only periodically, as determined by clock bit S:4/8
(clock bits are discussed in chapter 27). A rung such as this might be used
when you want to monitor the contents of the M1 file, but monitoring need
not be on a continuous basis.
[OSR]
B11
0
COP
COPY FILE
Source
#M1:4.3
Dest #N10:0
Length 6
] [
S:4
8
S:4/8 causes the #M1:4.3
file to update the #N10:0 file
every 2.56 seconds.
