8 Basic drive functions (MCK)
8.8 Positioning
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.8 Positioning

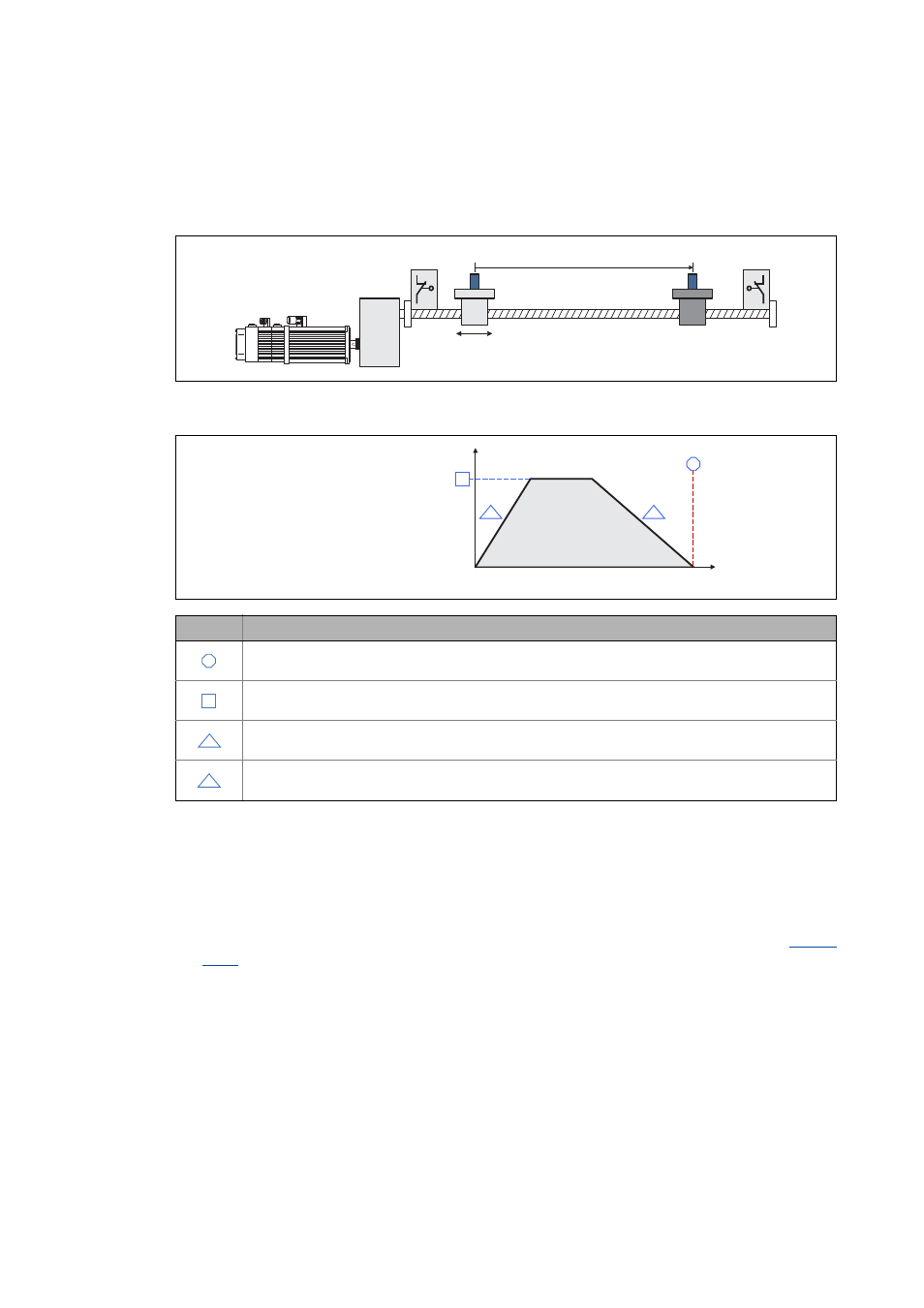

Positioning means that a workpiece/tool or material is moved from a starting position  to a
defined destination :
To carry out positioning, a travel profile has to be stored in the drive controller for at least the
following profile parameter:
• A profile describes a motion task that can be converted into a rotary motion of the motor shaft
by the Motion Control Kernel in the "Positioning" operating mode.
• A positioning process can be composed of a large number of profiles that are executed in a fixed
manner.
• 15 different profiles can be parameterised for the 8400 HighLine controller.
• You can find a detailed explanation of all profile parameters in the subchapter entitled "
Profile
entry ". ( 579)
Icon Profile parameter
Position
Target position or distance to be traversed.
Velocity
Maximum speed during the positioning process.
Acceleration
Maximum acceleration during the positioning process.
Delay
Maximum deceleration during the positioning process.
Œ 
v [unit/s]
t [s]
A
B
C D
A
B
C
D
