17
Function library
17.2
System blocks
1526
Lenze · 8400 HighLine · Referenzhandbuch · DMS 10.0 EN · 06/2014 · TD05/TD14
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
17.2.11

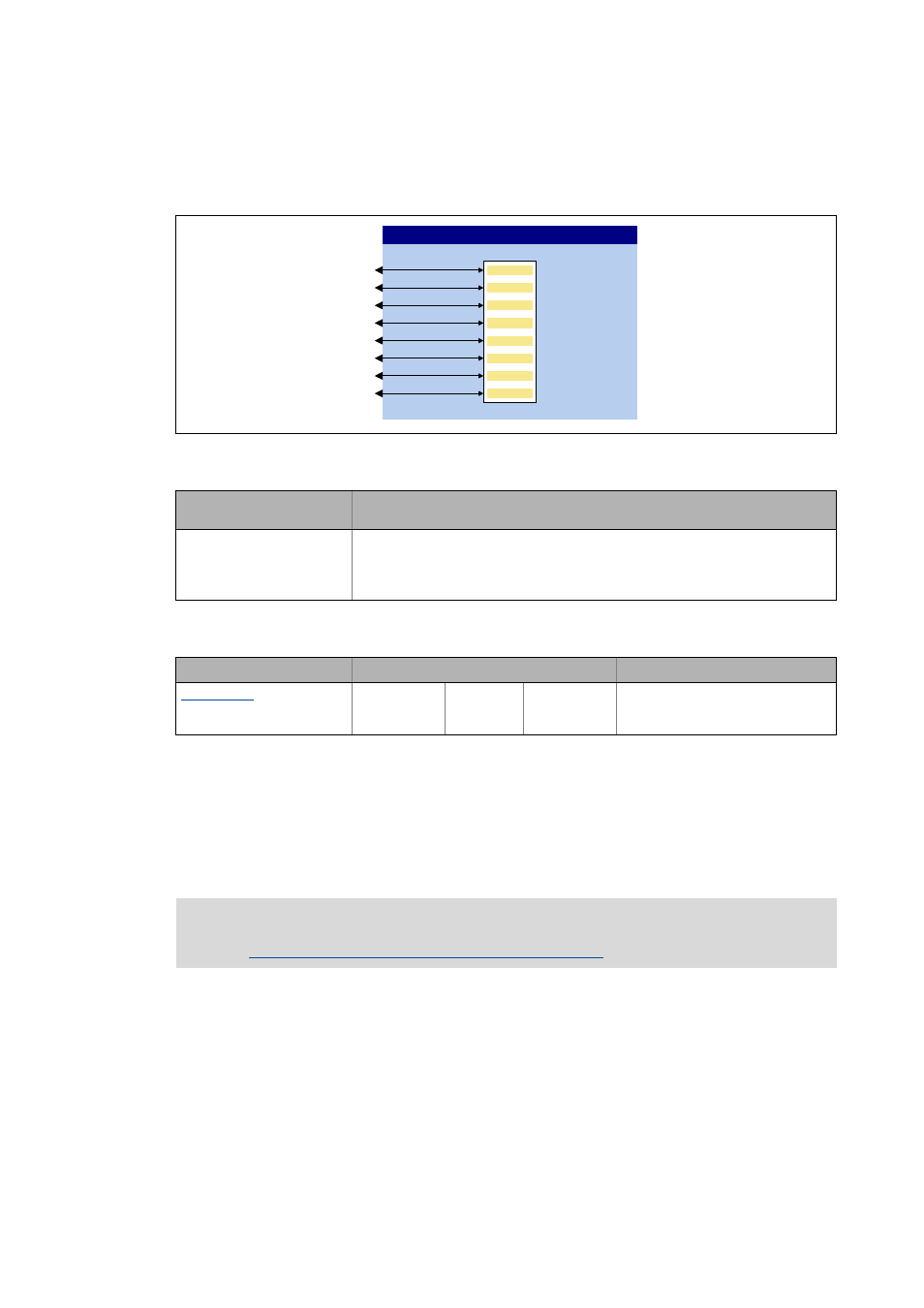

LS_DisFree_p
This system block displays 8 arbitrary position signals of the application on display codes.
Inputs
Parameter
17.2.12
LS_DriveInterface
Interface to internal device control.
Identifier
Data type
Information/possible settings
dnDis1_p ... dnDis8_p
DINT
From version 11.00.00 onwards:
dnC483_1_p ... dnC483_8_p
Inputs for arbitrary position signals of the application
Note:
From version 11.00.00
the inputs are named according to the display
parameter for an easier allocation.
Parameter
Possible settings
Info
-2147483647
Incr.
2147483647 Display of the position signals which
are applied at the
dnDis1_p ... dnDis8_p inputs
GQ'LVBS
GQ'LVBS
GQ'LVBS
GQ'LVBS
GQ'LVBS
GQ'LVBS
GQ'LVBS
GQ'LVBS
&
&
&
&
&
&
&
&
/6B'LV)UHHBS
For a detailed description see main chapter "Device control (DCTRL)":
